Void Acoustical Ceiling Tiles

Inspired by the 5 paise Indian coin, features a 2-layer perforation design that creates a 3D effect while enhancing depth and acoustic performance. Its high perforation percentage ensures a strong Noise Reduction Coefficient (NRC), making it ideal for modern spaces.

drag

Void Acoustical Ceiling Tiles Manufacturer, Supplier & Wholesaler in Gujarat, India

Key Features

BUILD QUALITY

Superior built quality with long-lasting life
Aesthetic, wide & versatile designs
Easy & economical installation
Bend - proof panels
Paperless & fully sustainable
Highly moisture & fire resistant
Customized creations
Free from termite & vermin

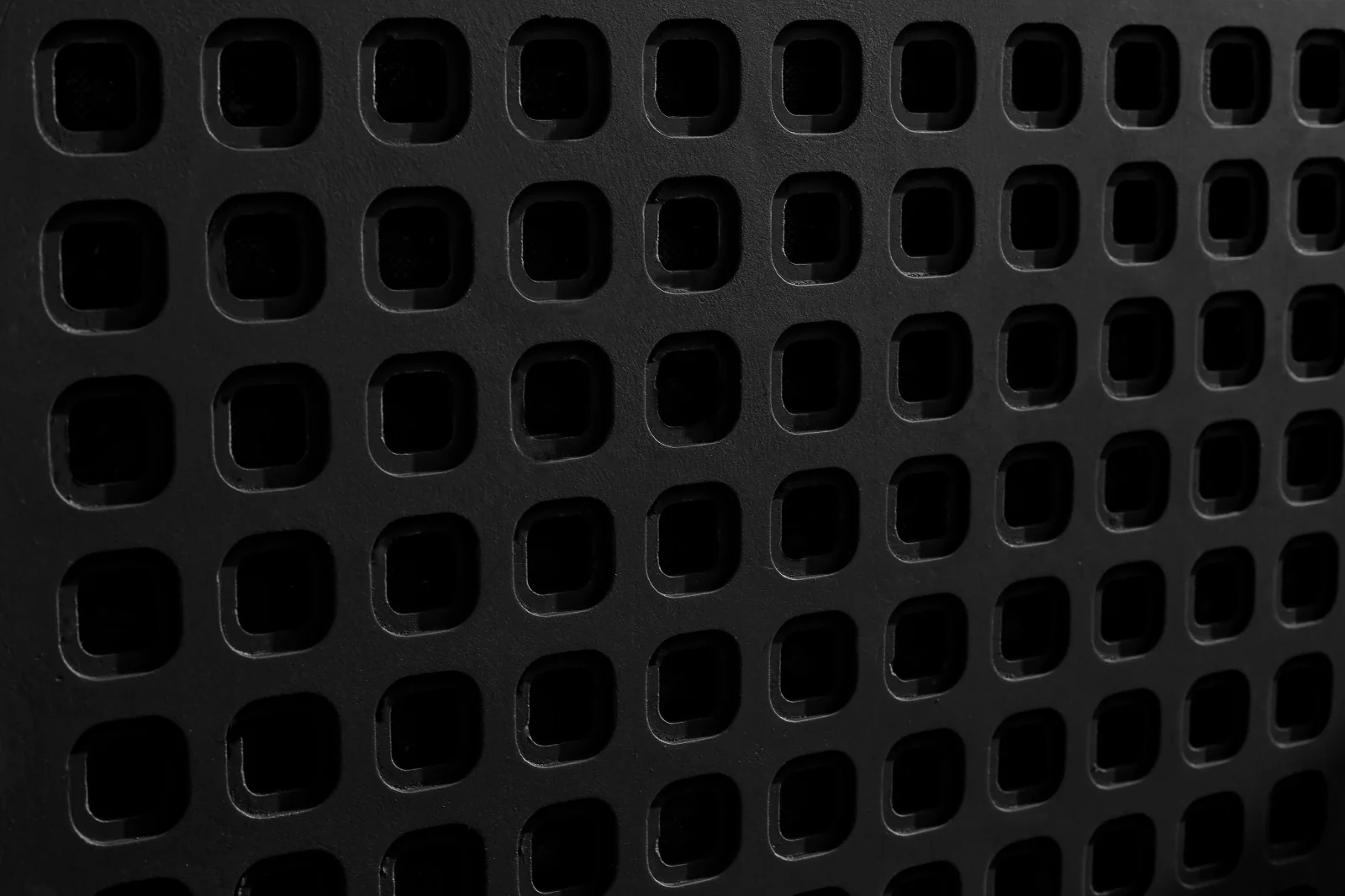

Available in Z-black color

T-grid & joint less installation systems

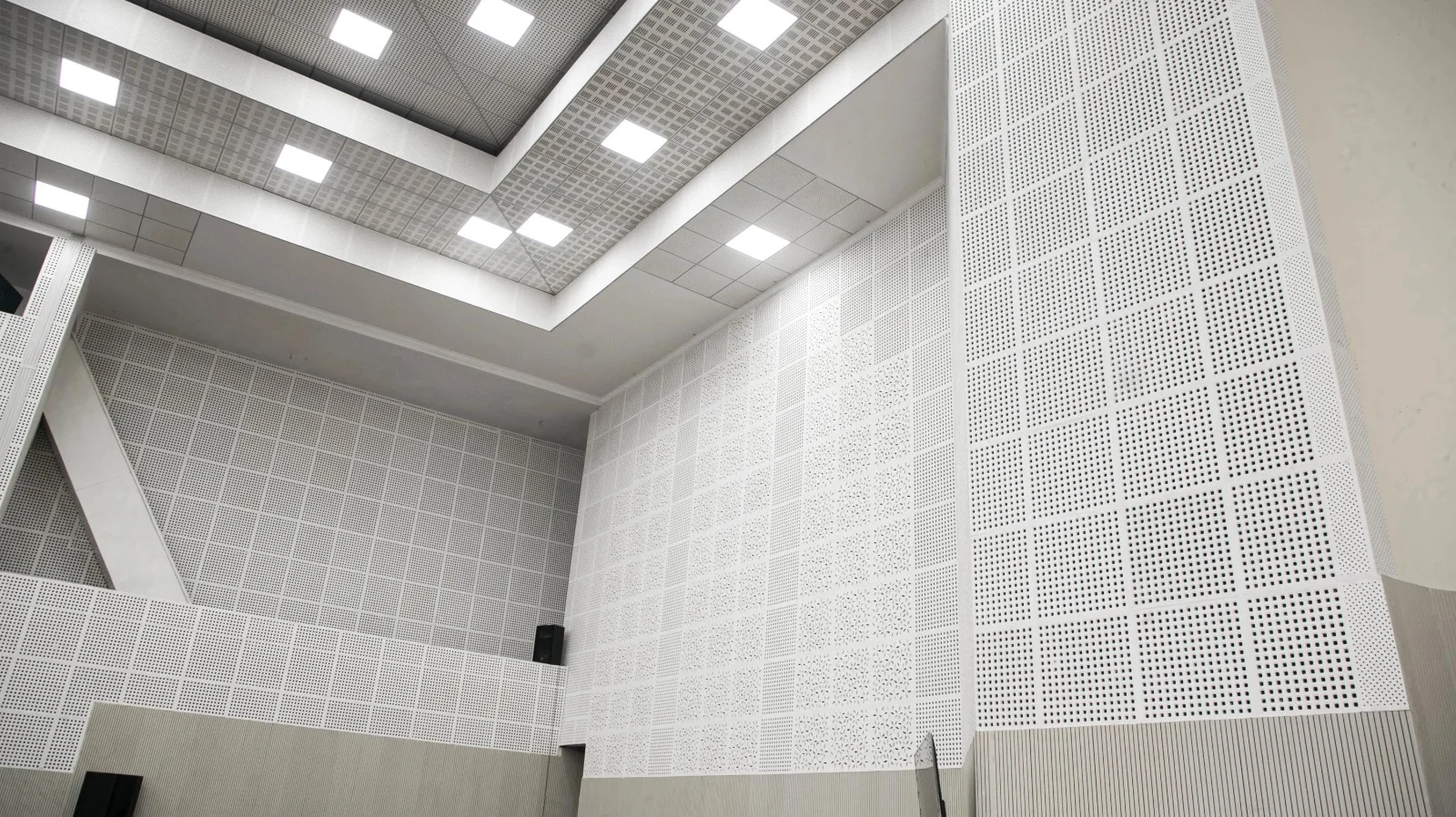

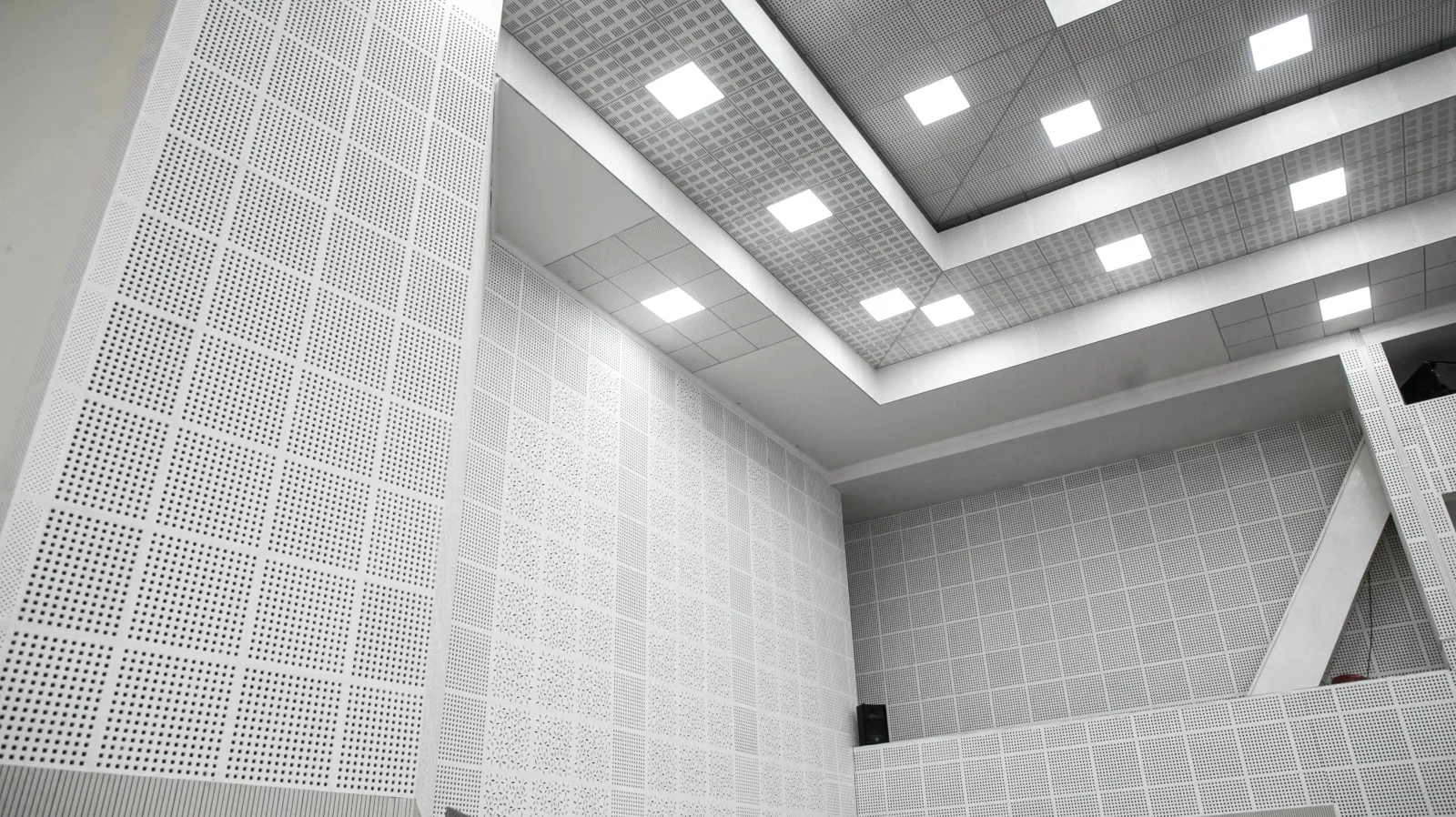

Ceilling & wall installation
Modified curved panels
Reinforced with pre-stressed glass fiber
Boot time crack-free drop tested
Exposed gypsum surface
Class 0' fire resistant

SUSTAINABLE PRODUCT

Made of gypsum & glass fiber
No use of paper
Sun-dried panels
Safe material
100% recyclable & incombustible
Enhanced indoor climate conditionfa

Description

Dual Installation Alternatives: T-Grid and Seamless Screw Fixing for Void Acoustical Ceiling: T-Grid and Seamless Screw Fixing for Void Acoustical Ceiling

The Void acoustical ceiling offers installation flexibility, accommodating both the traditional T-Grid method and the innovative seamless screw fixing technique.

This adaptability ensures a seamless fit for diverse installation preferences.

The T-Grid method provides a conventional approach, while seamless screw fixing introduces contemporary efficiency to the installation process.

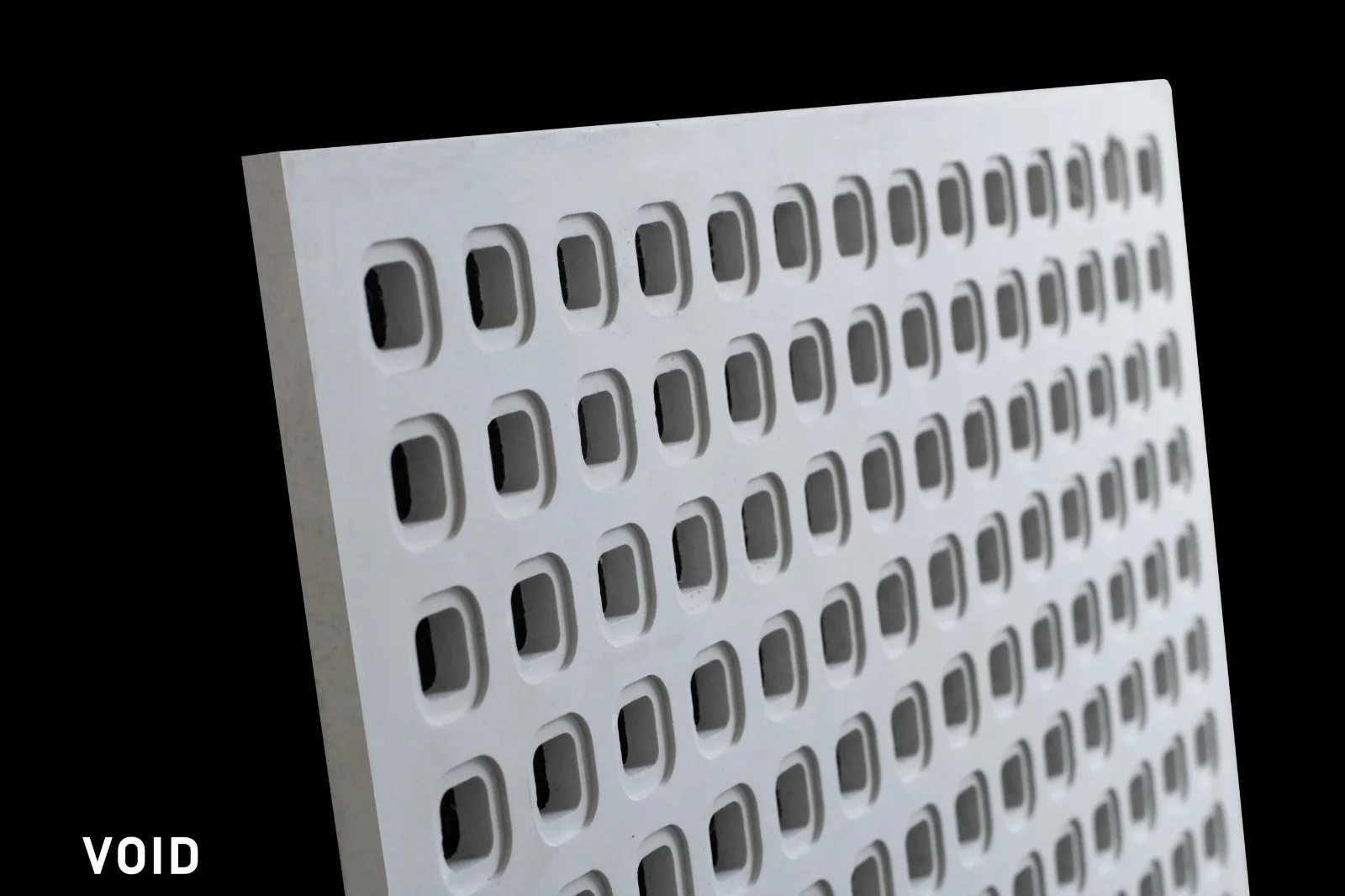

Dimensional Depth: Void Acoustical Ceiling's Innovative 2-Layer Perforation Design

Born perforated, the Void acoustical ceiling boasts a unique 2-layer perforation design, creating a captivating 3D effect.

Inspired by the iconic old 5 paise Indian coin, this design pays homage to history while adding depth and texture to modern spaces.

The perforation's strategic arrangement contributes to a higher perforation percentage, resulting in a substantial Noise Reduction Coefficient (NRC) value, making the Void ceiling an excellent choice for achieving acoustic balance.

Artful Acoustics: Chamfered Square Design of Void Acoustical Ceiling

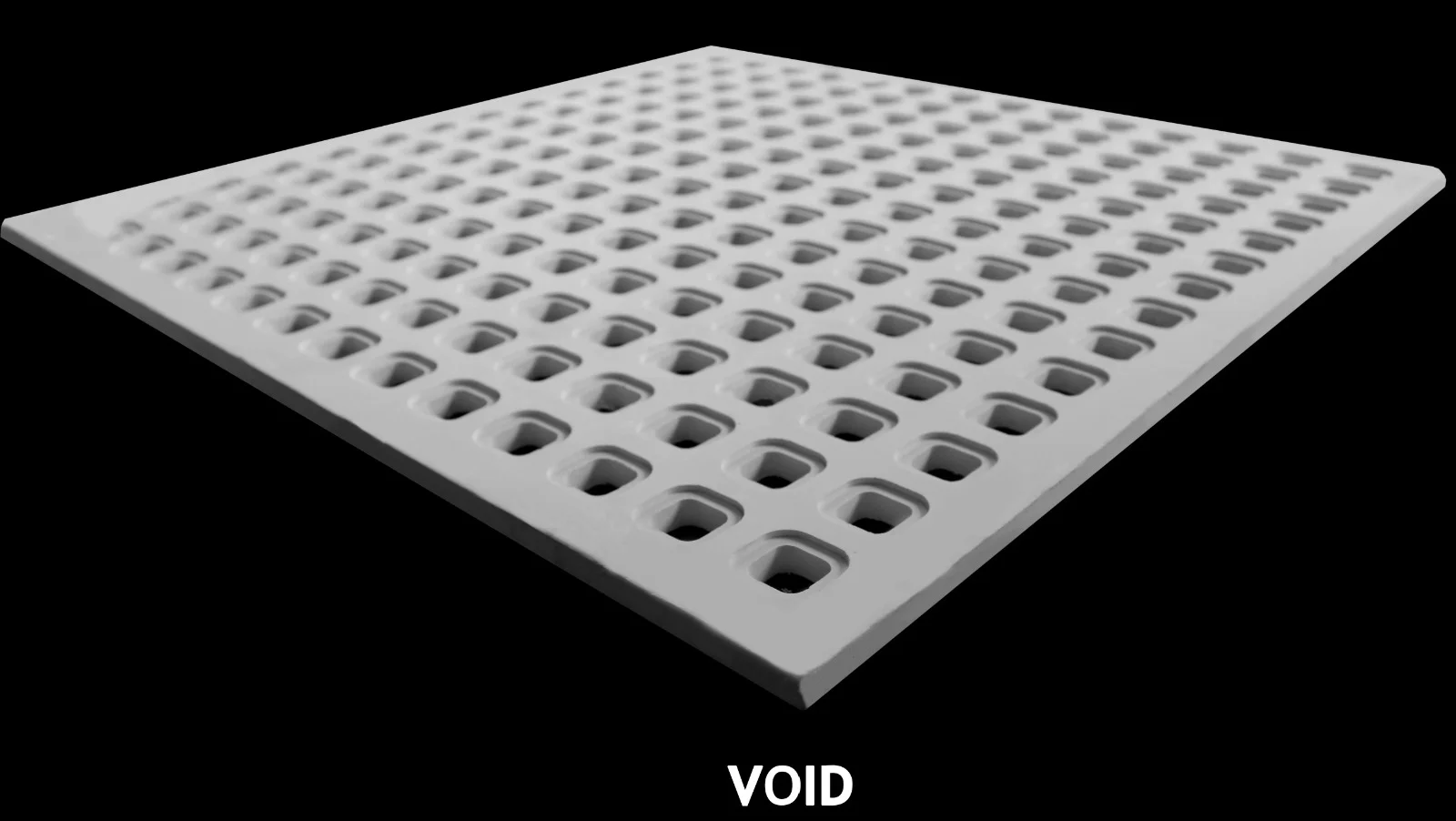

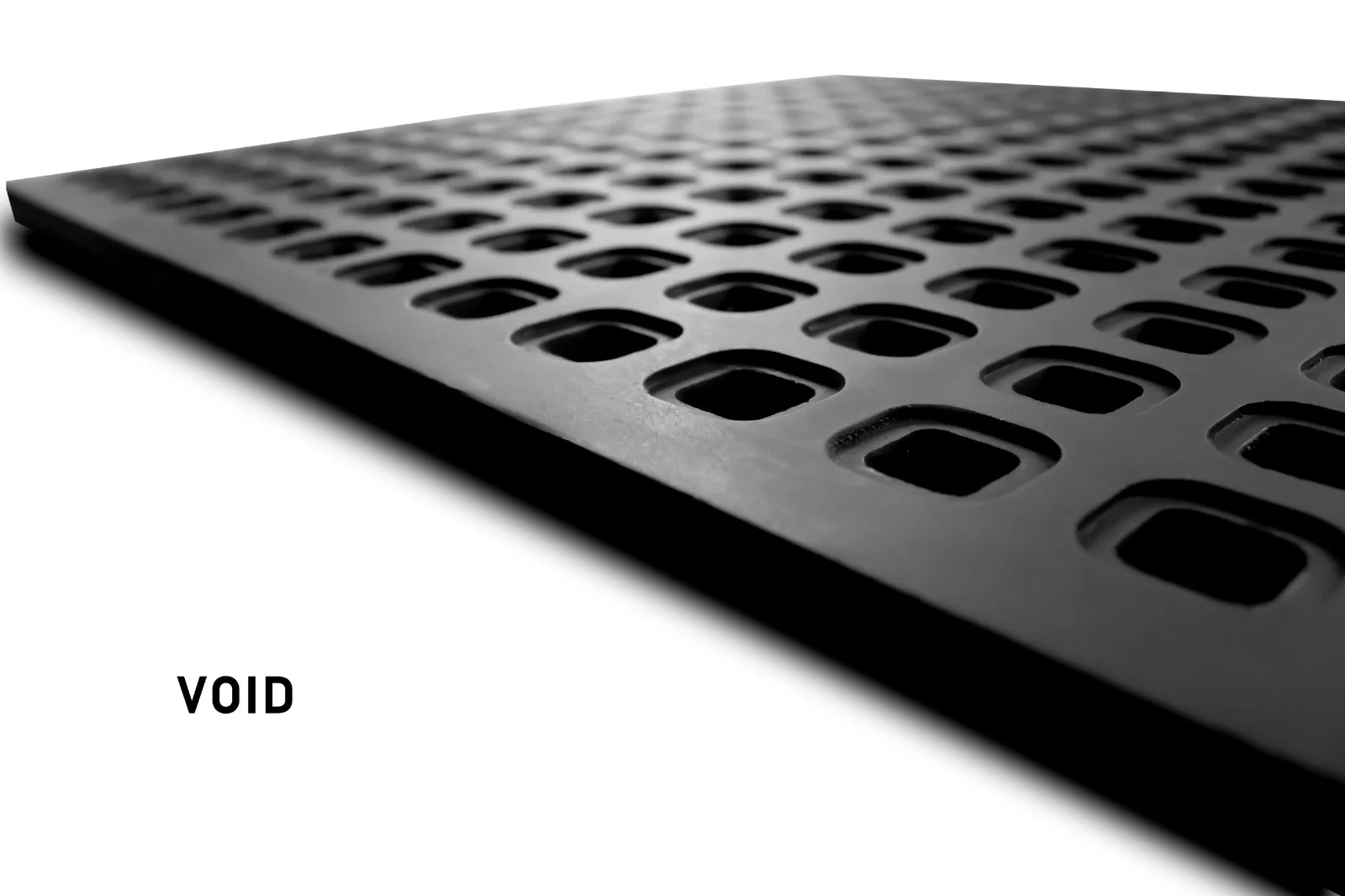

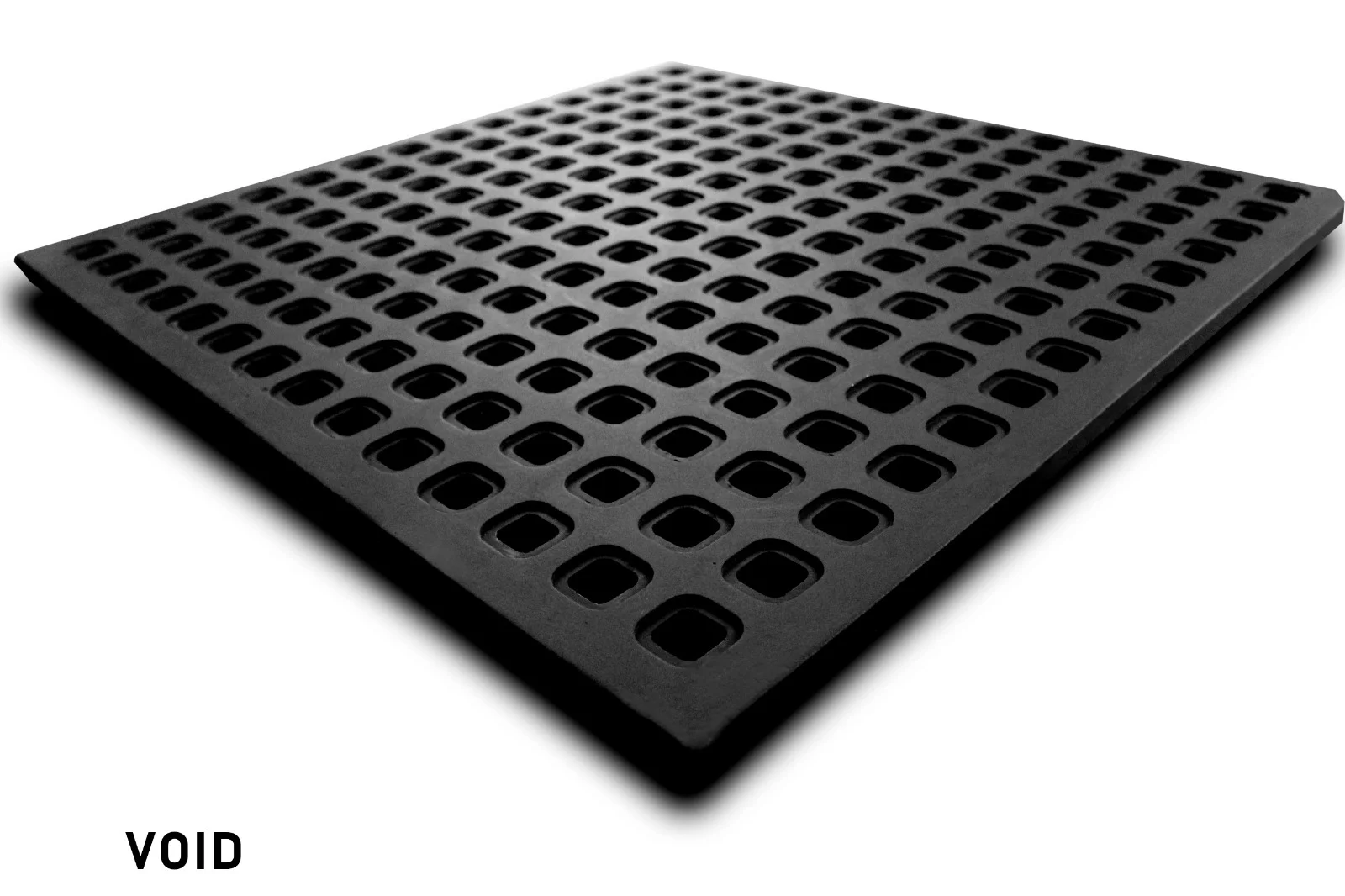

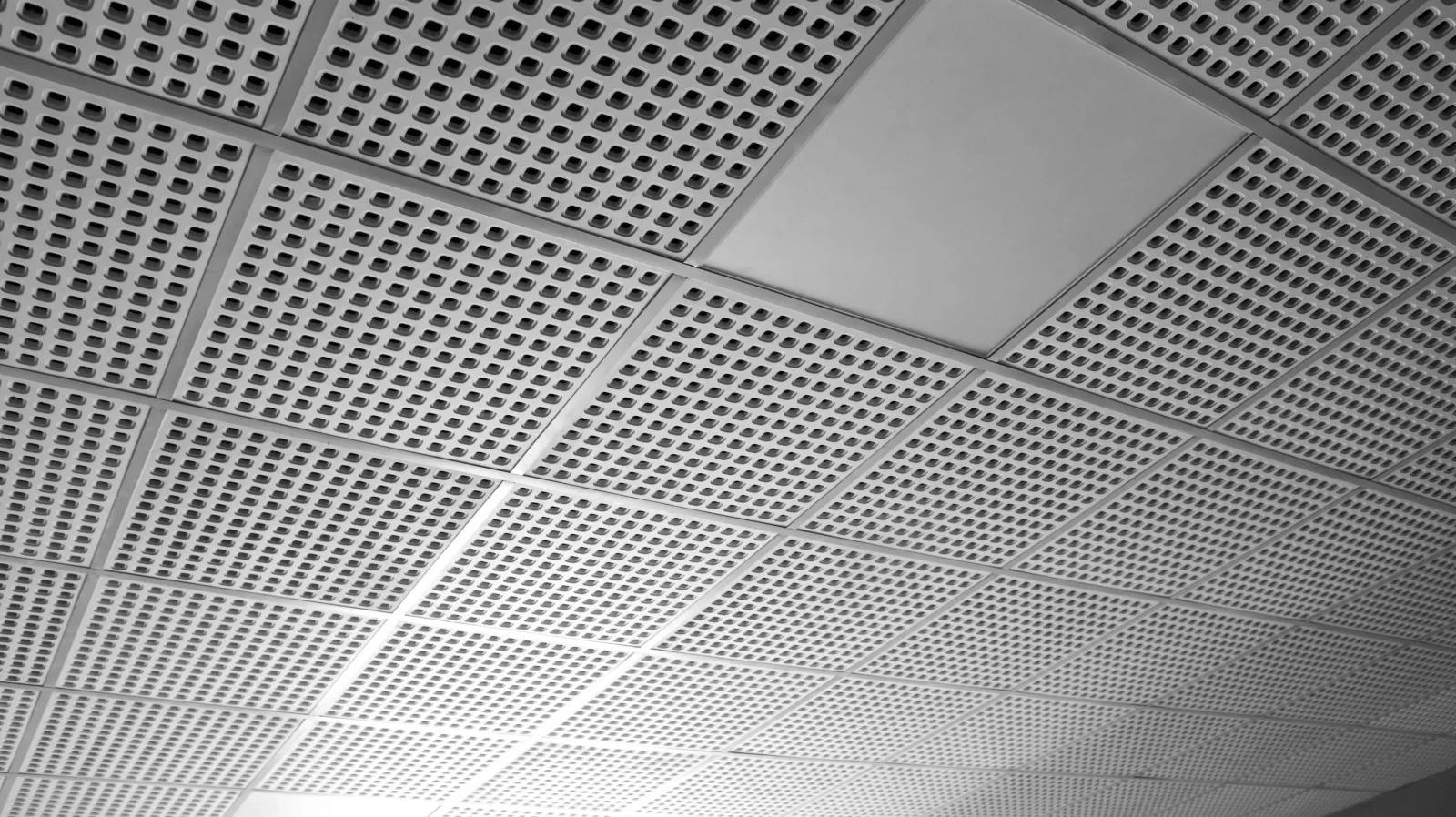

The Void acoustical ceiling features an artfully designed chamfered square perforation pattern, measuring 20mmx20mm with a 40mm center-to-center spacing.

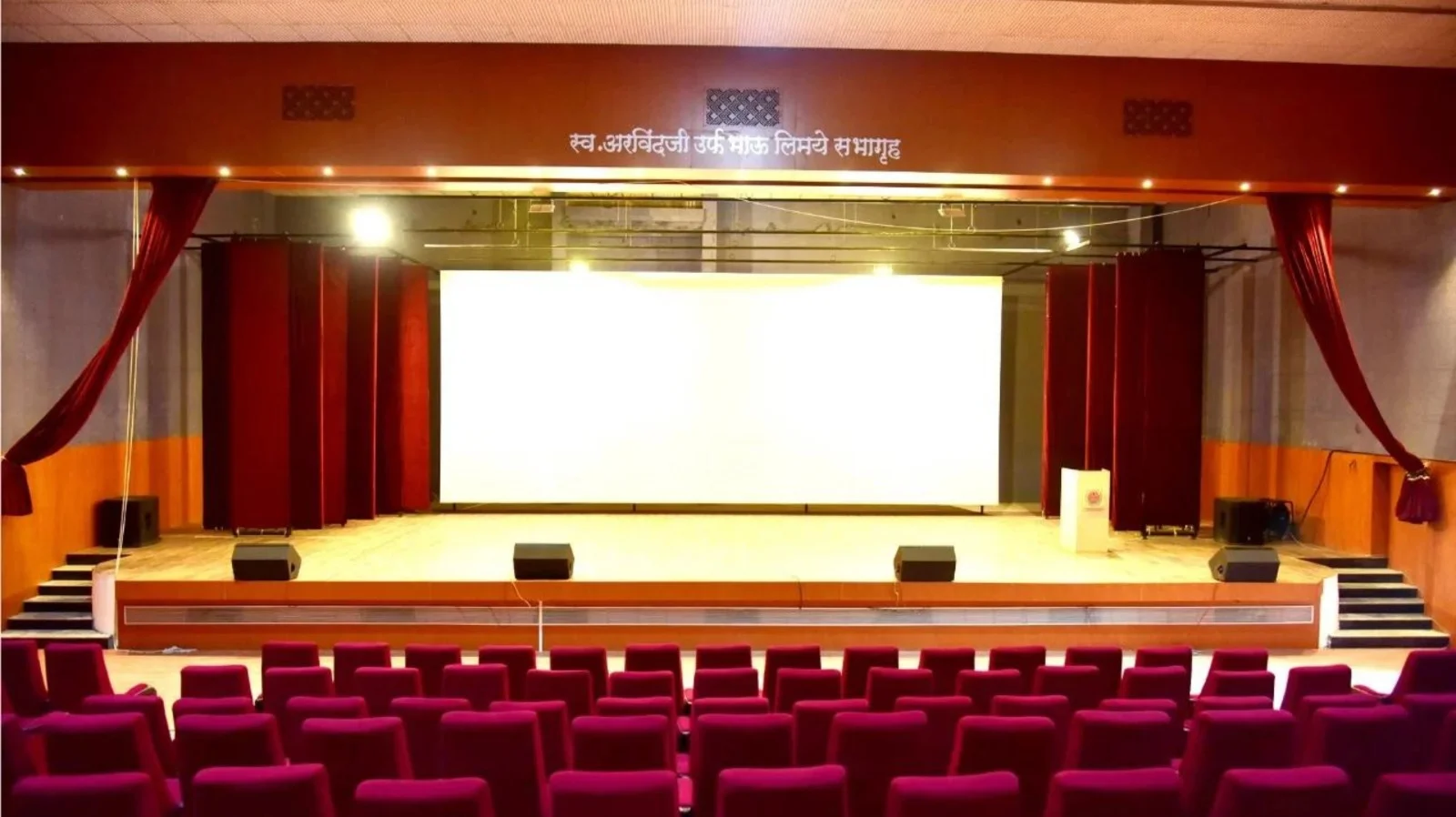

This intelligently crafted design not only exudes a smart and original aesthetic but also effectively controls sound levels in dynamic spaces like auditoriums.

The Void ceiling's balance of visual appeal and acoustic performance makes it a standout option for those seeking both functional and artistic solutions.

Uncompromising Strength: GRG Material's Lightweight Resilience in Void Acoustical Ceiling

Constructed from GRG (Glassfiber Reinforced Gypsum) material, the Void acoustical ceiling stands as a testament to perfect equilibrium between lightweight design and exceptional strength.

With its RH99 properties, GRG material guarantees durability and resilience, contributing to a Green product that aids in noise reduction and echo control.

The Void ceiling not only enhances indoor environments but also embodies a commitment to sustainability and quality.

Installation Video

Specification

T-Grid

Main-T : 15/24 x 32 mm

Cross-T : 15/24 x 26 mm

Size	595 X 595 mm (+/- 3 mm)
Thickness	12 mm (+/- 0.5 mm)
Weight	Indicative tile weight: 7.7 to 7.9 kg/m2
Surface	Standard Brilliant White
Air Quality Index	Indoor value: 10 days Particle emission: low (< 0.75 mg)
Cleaning	Dust is removed using a dry duster or vacuum cleaner. Marks can be removed with a damp cloth using normal cleaning practices and neutral cleaning solutions.
Moisture Conditions	The product is designed to perform under normal conditions of Use. Tested at 99% RH and 27°C. The product can withstand ambient temperatures of up to 55°C.
Impact Strength	As per IS 13360 part 5/ sec 5 obtained result of 11.90 min against the requirement of 10 Minutes.

Seamless

Intermediate : 45 mm

Ceiling Section : 50 mm

Wall Angle : 24 x 24 mm

Fire Class	CLASS-0 (The time taken for 10% loss in mass was observed 32 Minutes)
Robustness	Made of robust, glass fibre reinforced material with excellent pressure resistance. Under normal conditions of use, the product properties are preserved and there is no decomposition of material over time.
Anti-Bacterial	The product is designed to reduce 99.98% Microbial population (ILAC-MRA)
Water Absorption	The product is designed to absorb only 28% of water against the requirement of 50% Maximum as per IS 2095 Part 1.
Jolting Strength Test	The product does not show crack or chipping off from the surface before 500 cycles.
Perforation Details	Chamfered Squares : 20 mm x 20 mm, 40 mm c/c (21.5% perforation)
N.R.C. Value	0.79
Certificates	IS 2095 PART-3 (2022) TESTS Declaration of Conformity By Bureau Of Indian Standards (CM/L No. 7100049497)

Acoustics

Range (Hz)	125	250	500	1000	2000	4000	NRC
Void (α_s)	0.48	0.75	0.78	0.73	0.56	0.51	0.79

All India First License

APPROVED BY

Documents

Product Brochure

Gypsonic© | Datasheet

Test Reports

Gypsonic© 12 Material Property Tests

Gypsonic© Anti-Bacterial Test Report

Gypsonic© Fire Class 0 Certification Test Report

Gypsonic© NRC Test Report

Gypsonic© Rh 99 Humidity Resistance Test Report

Installation Guidlines

Gypsonic© | Fully Perforated | T-Grid Installation

Gypsonic© | Fully Perforated | Screw Fixed Ceiling Installation

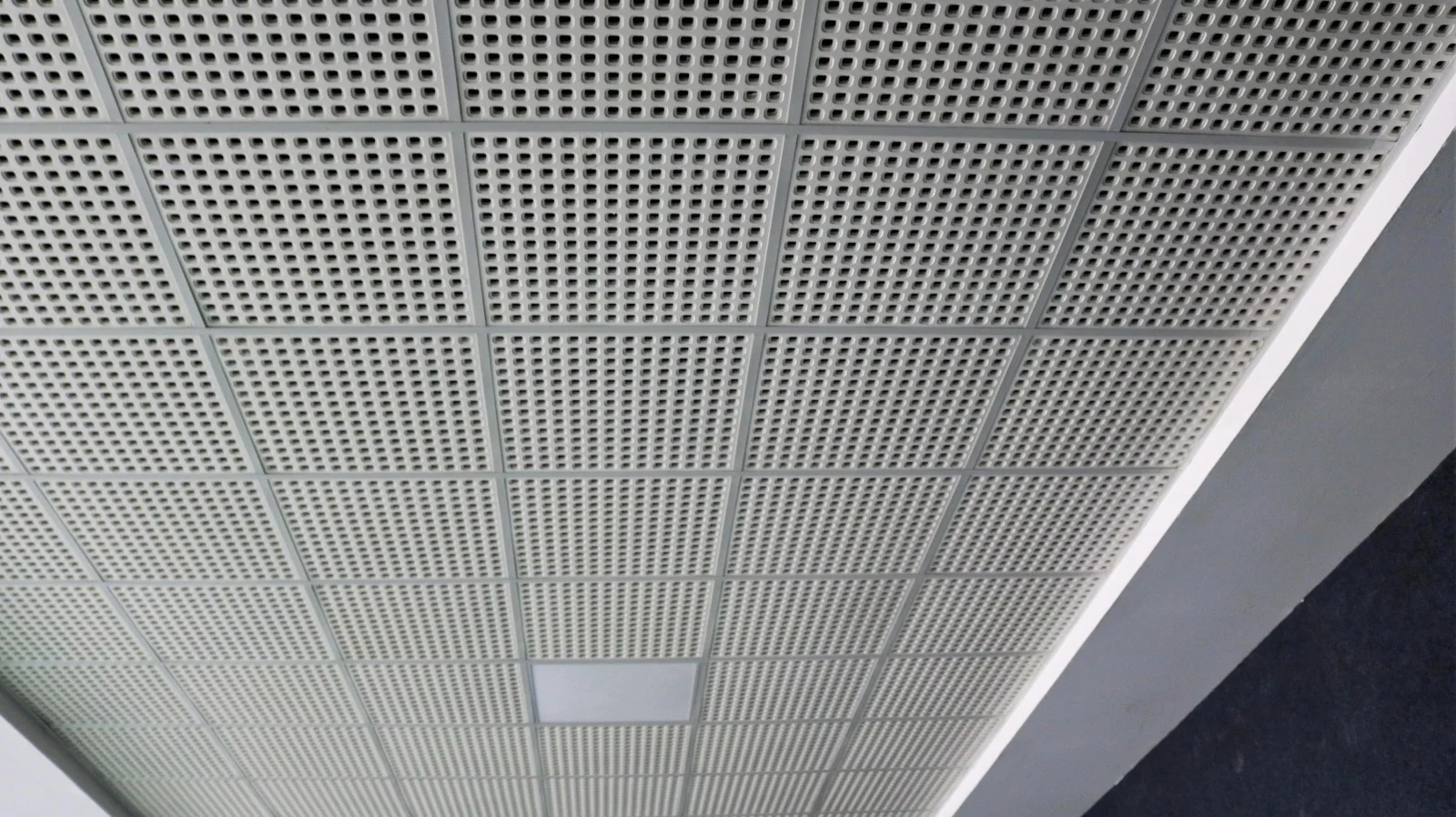

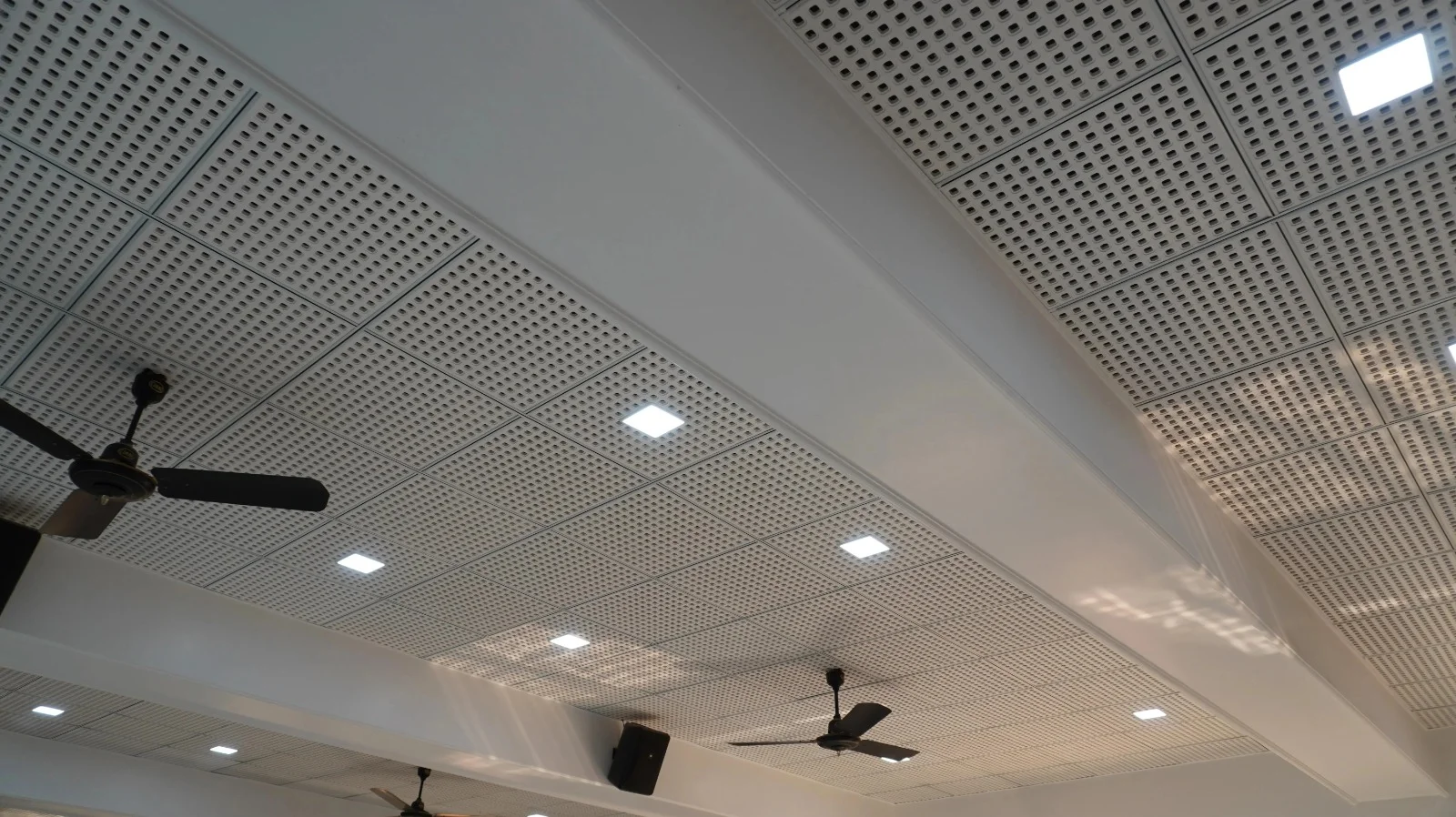

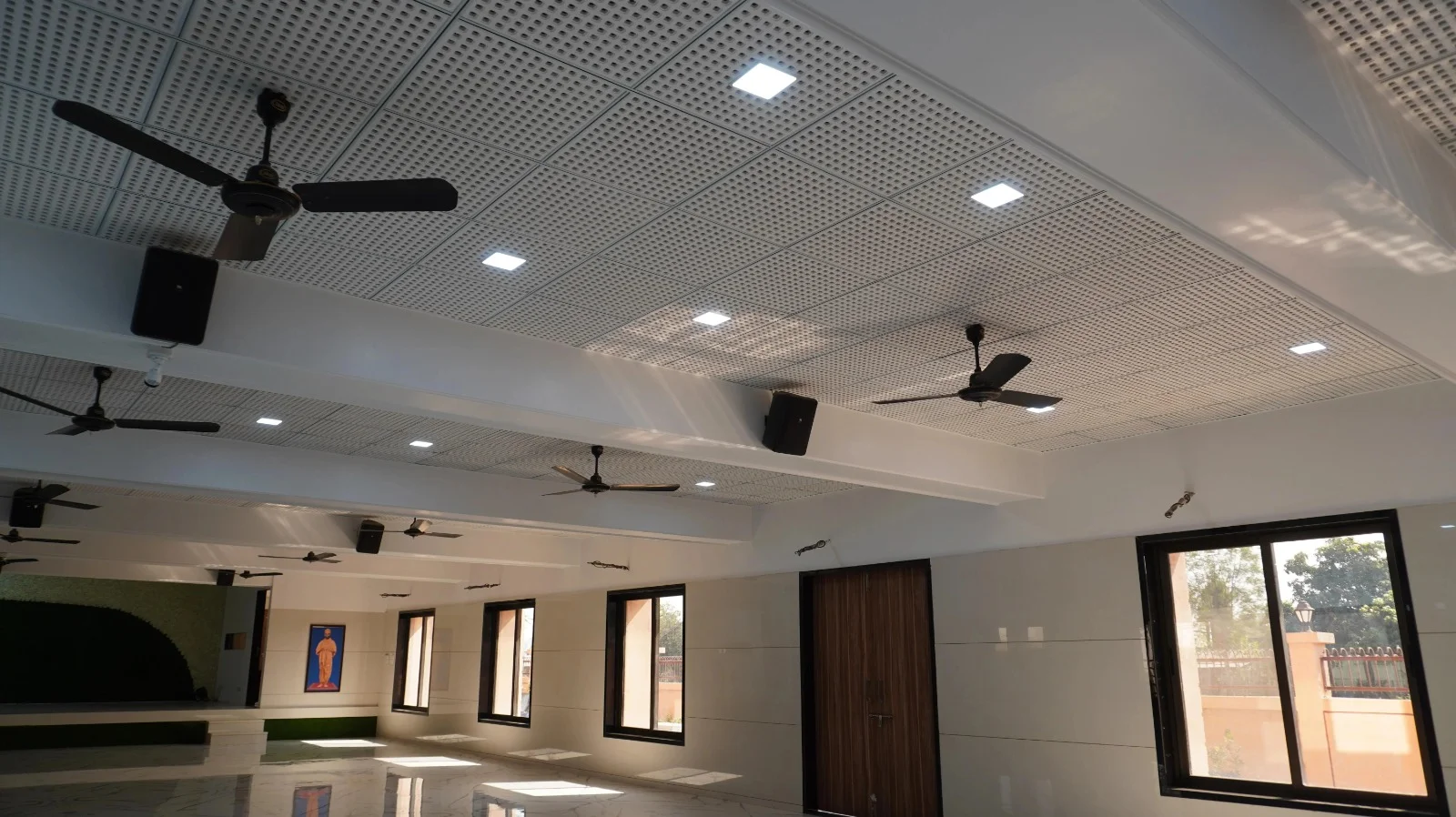

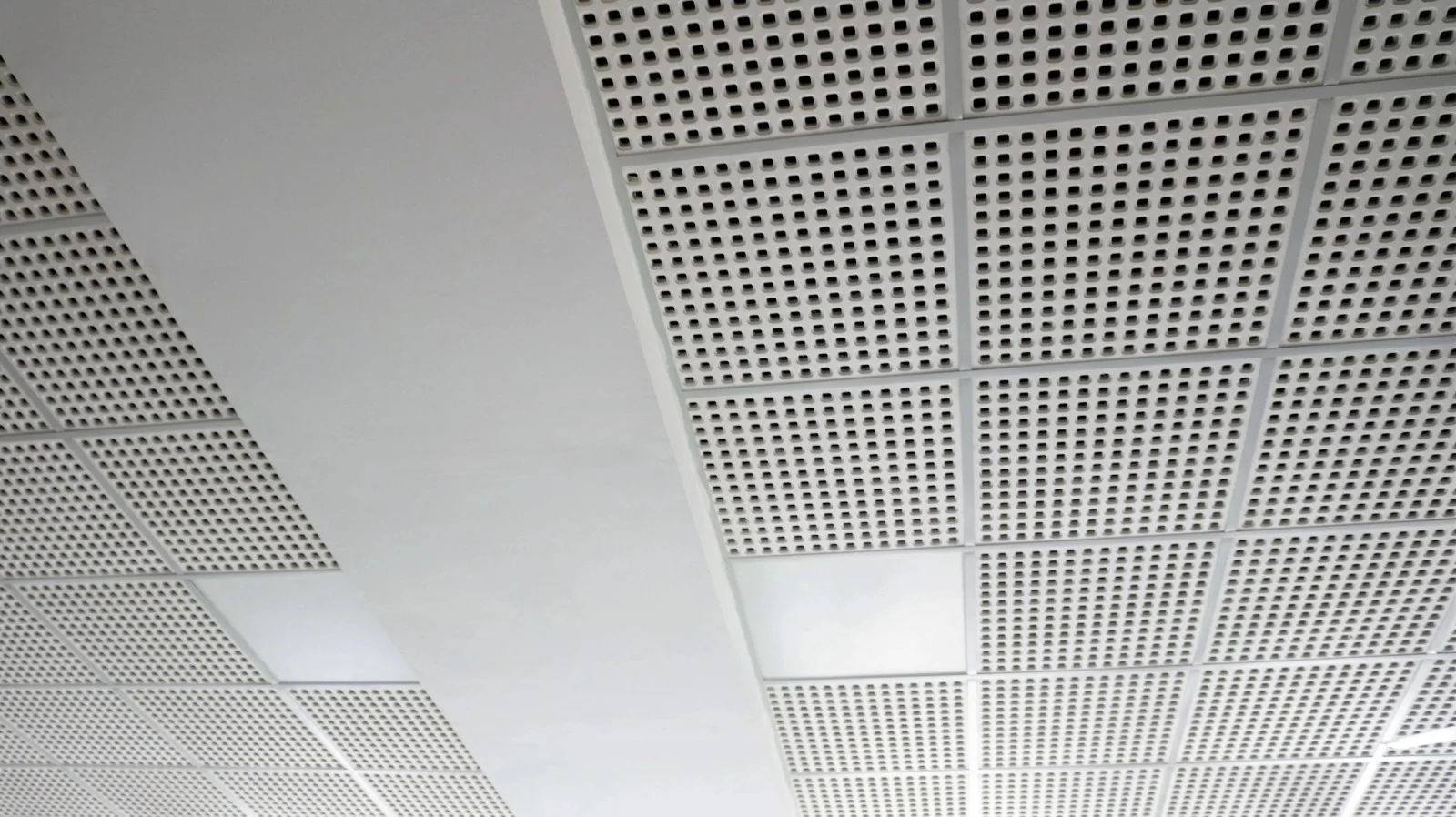

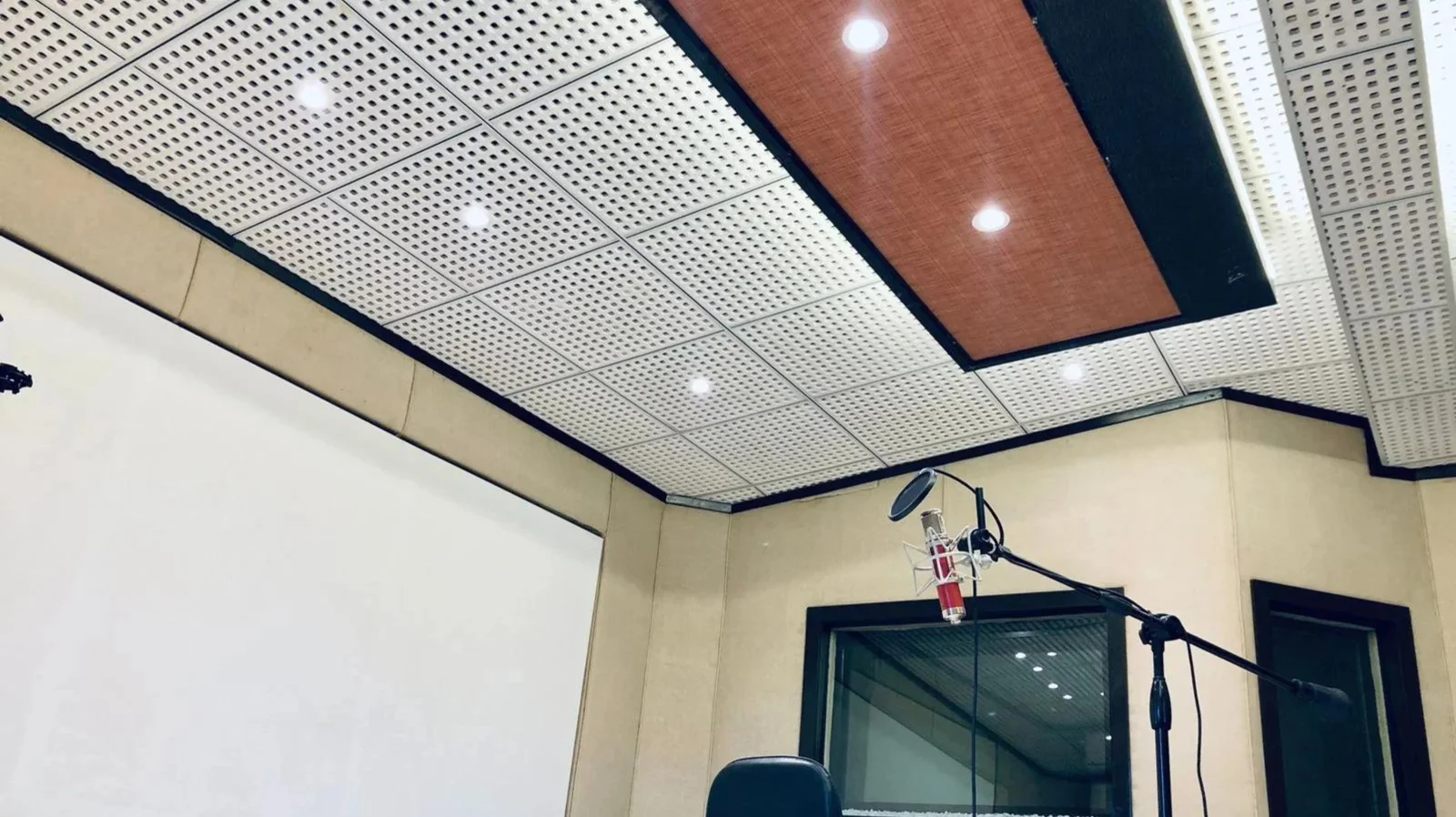

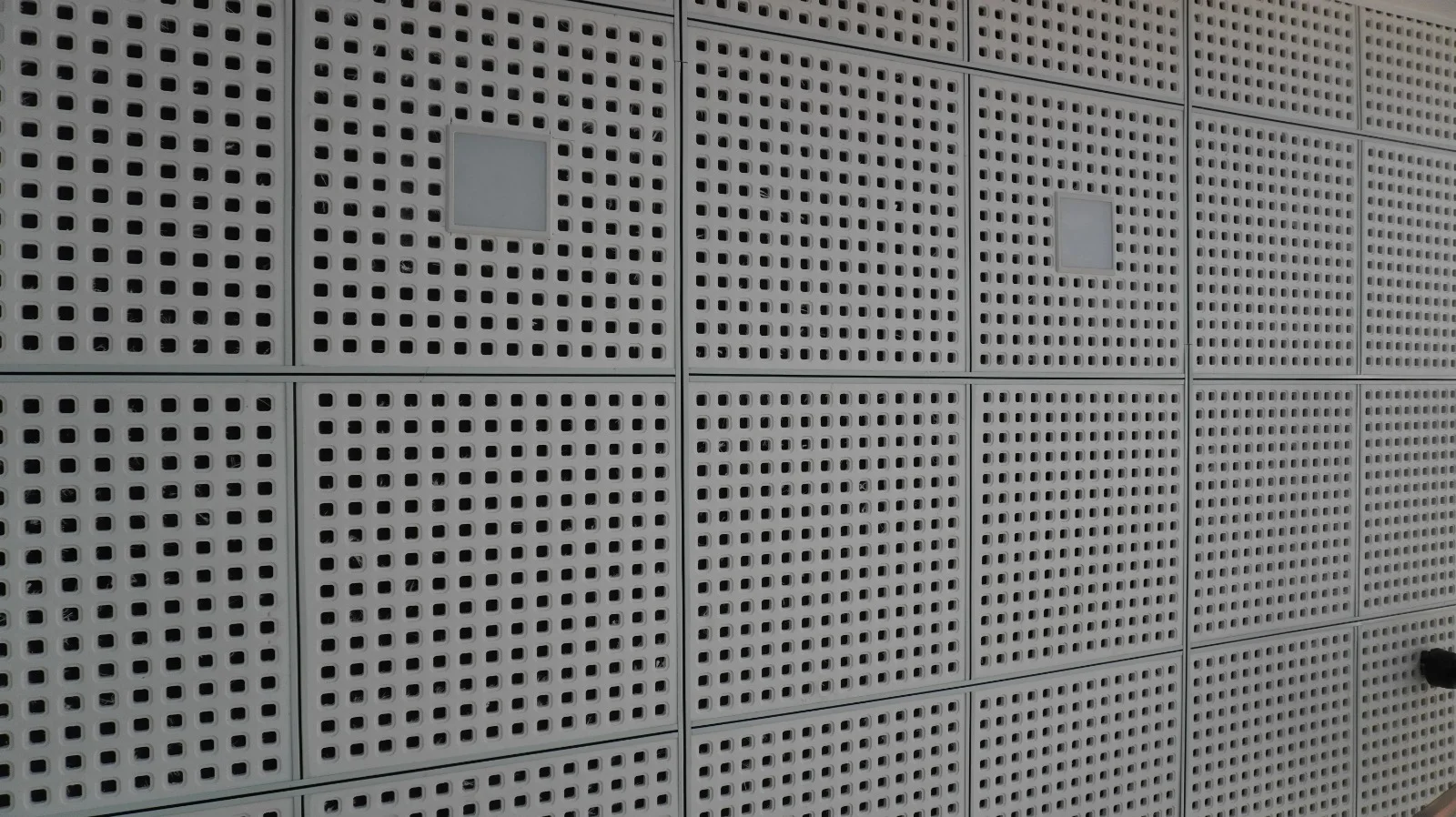

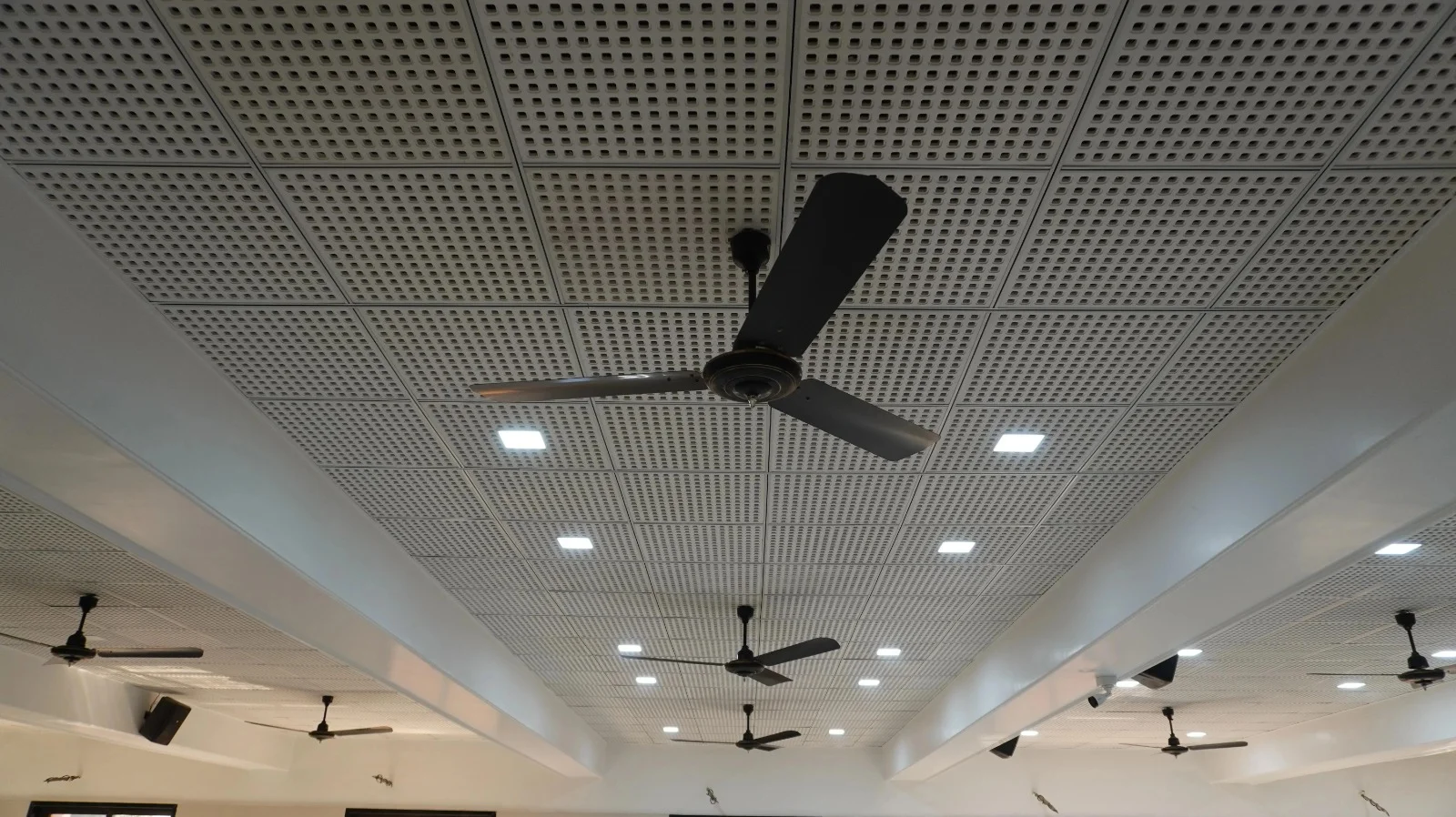

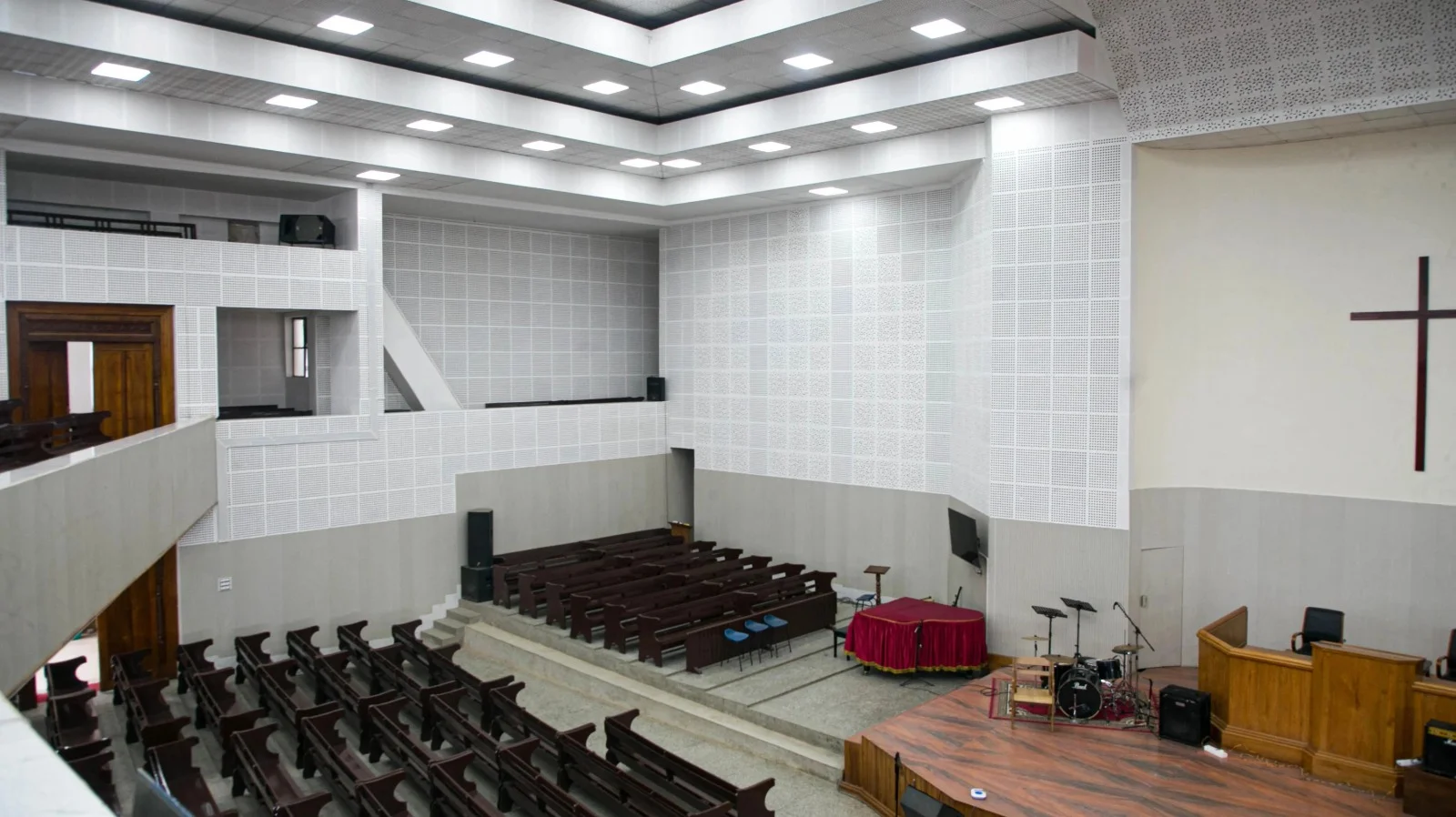

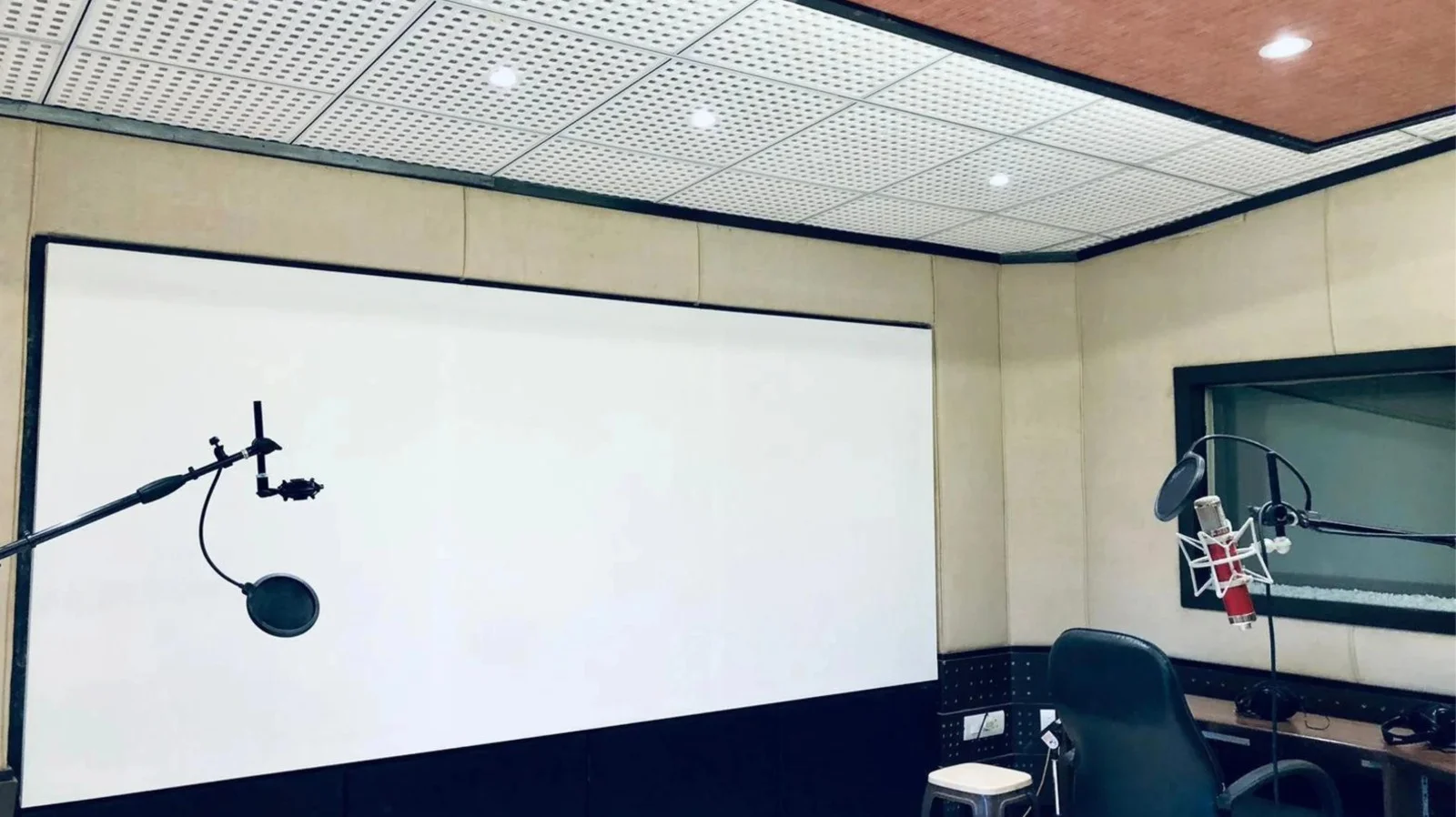

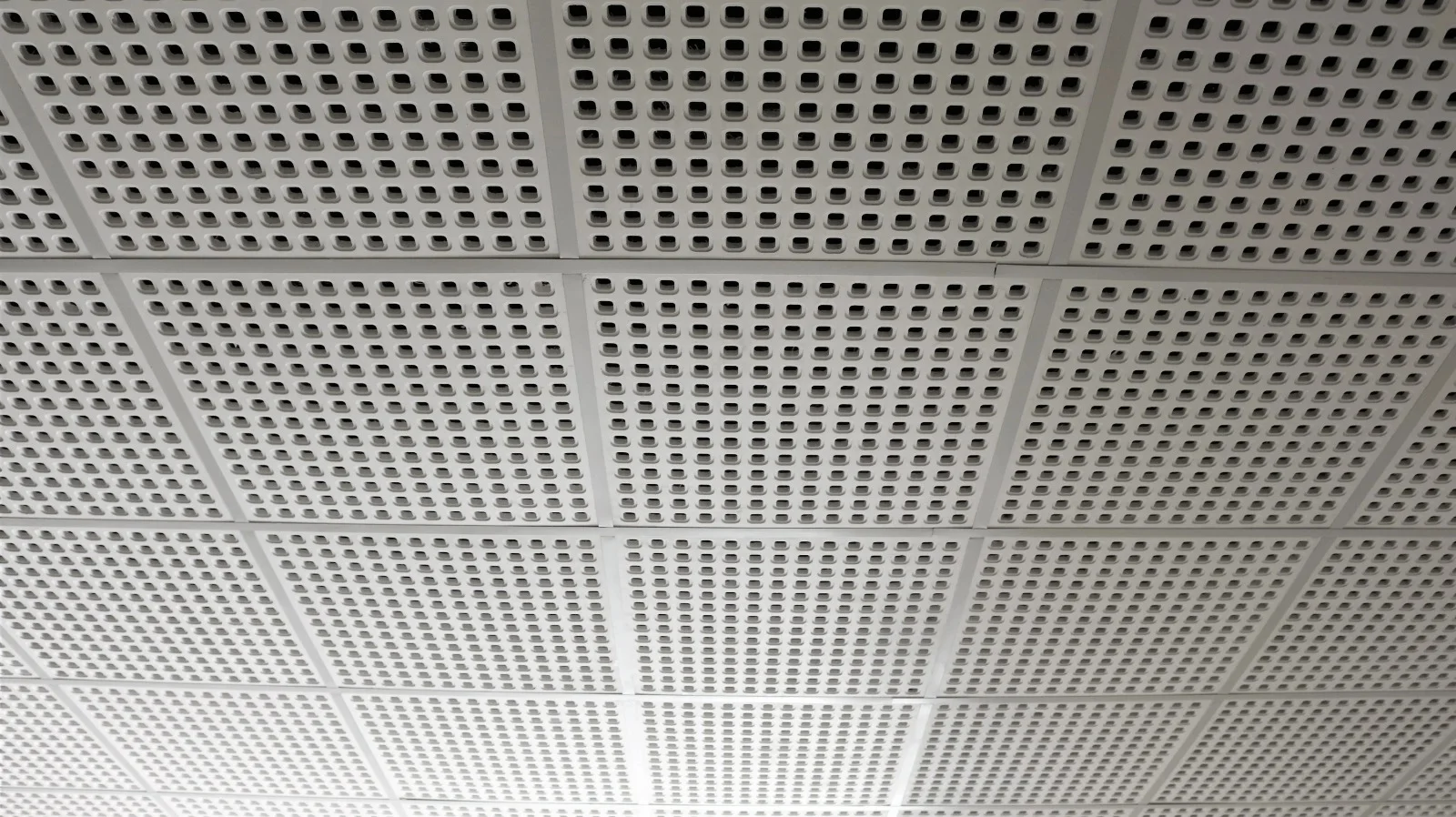

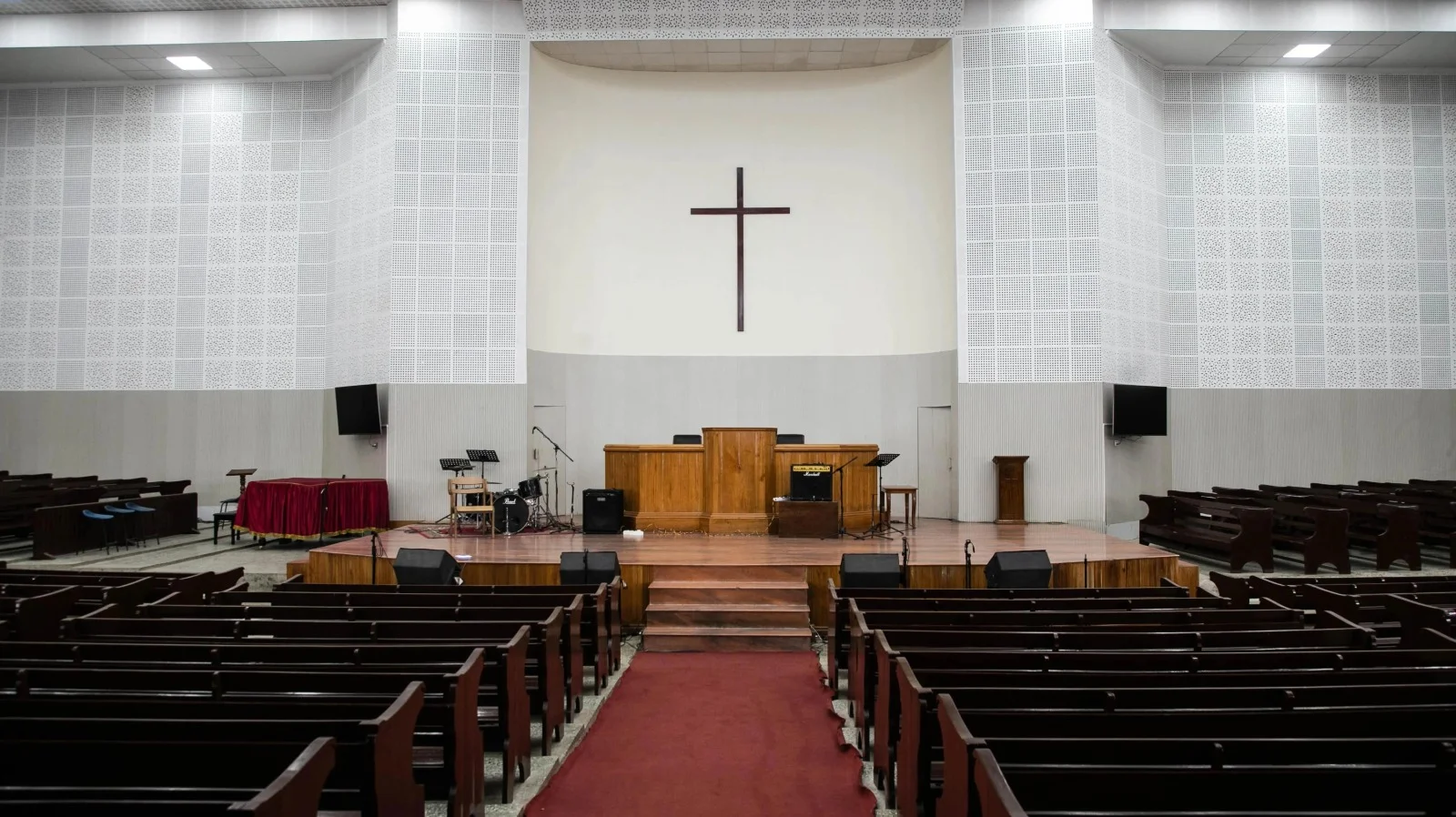

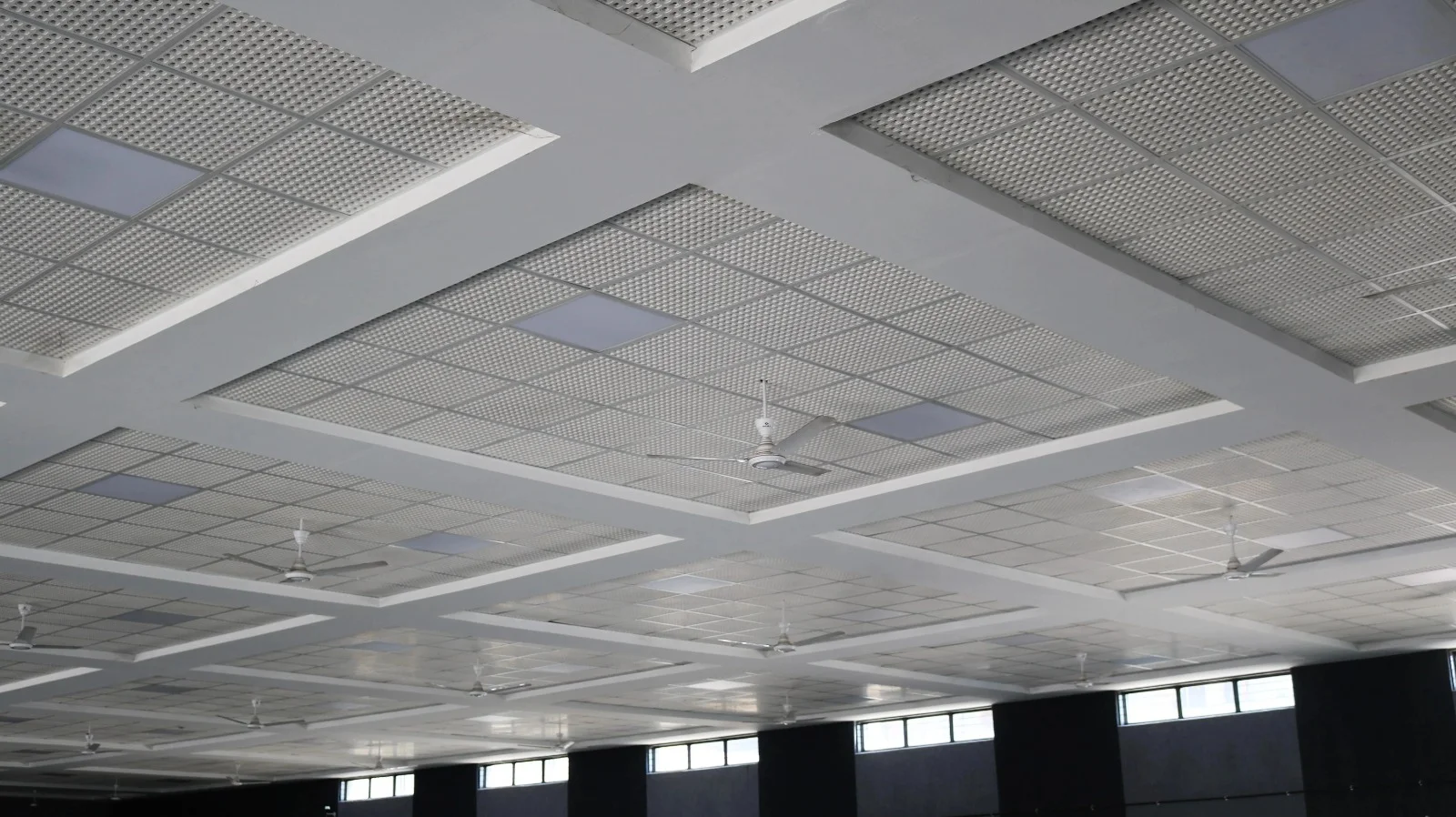

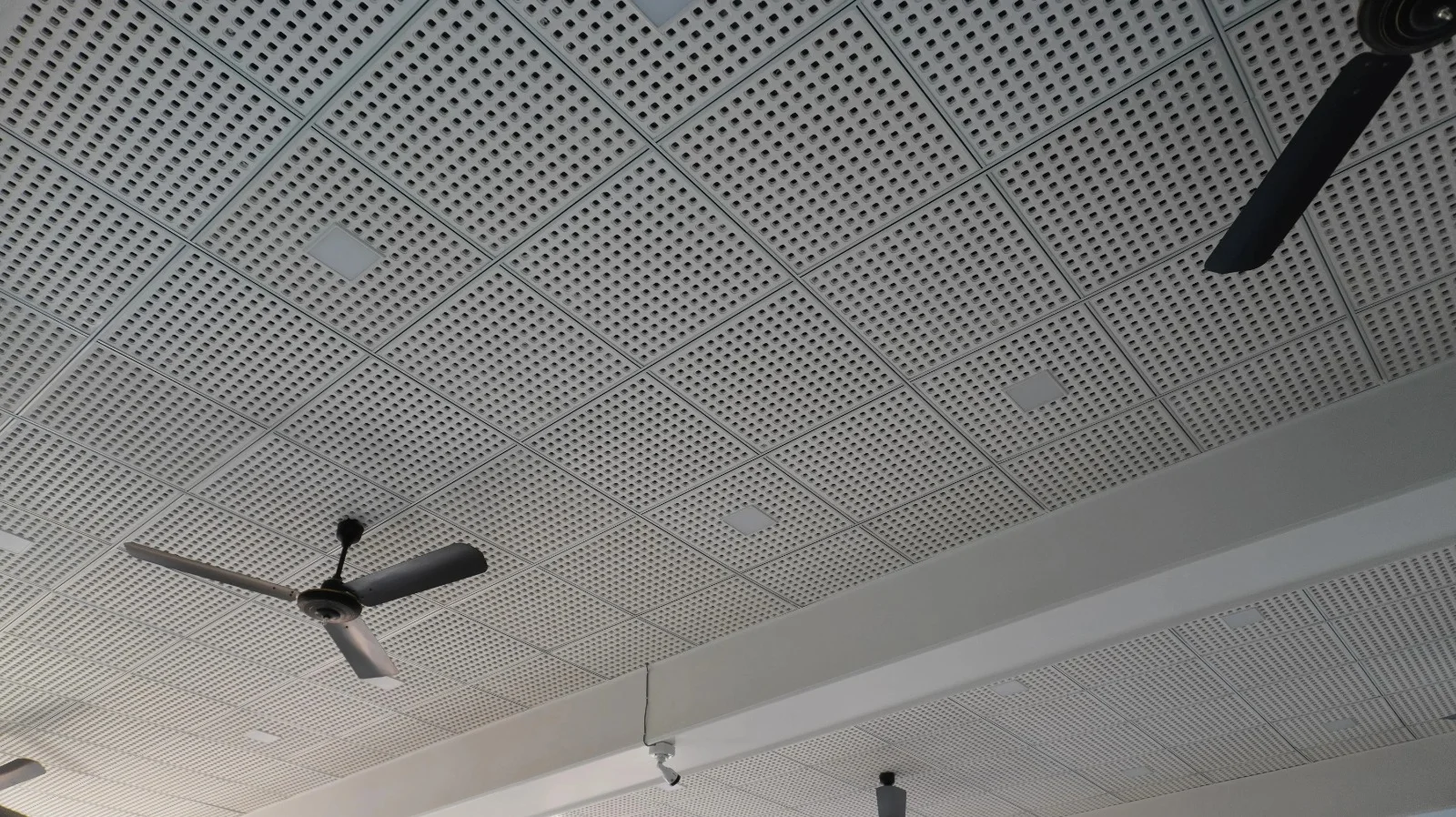

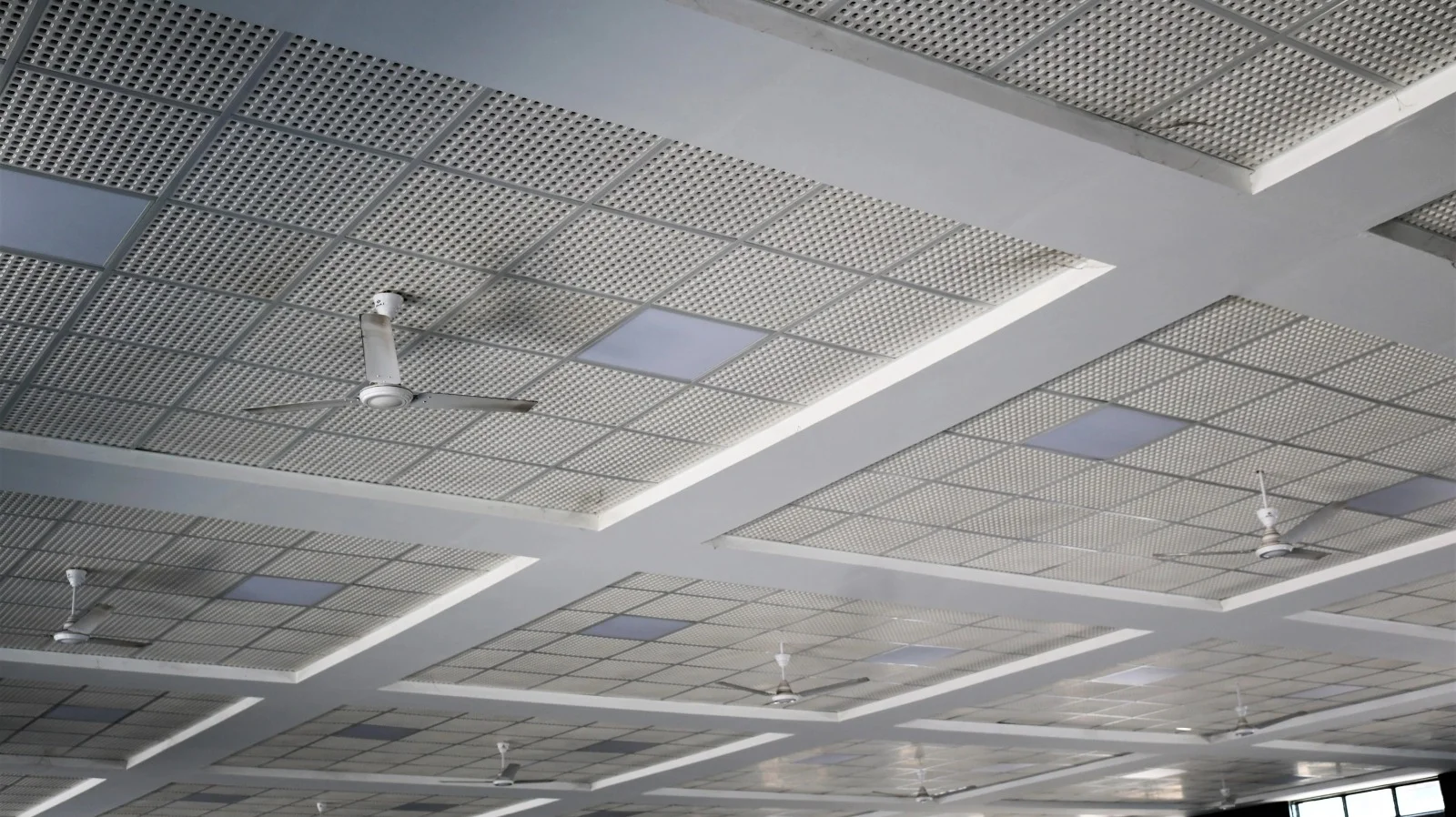

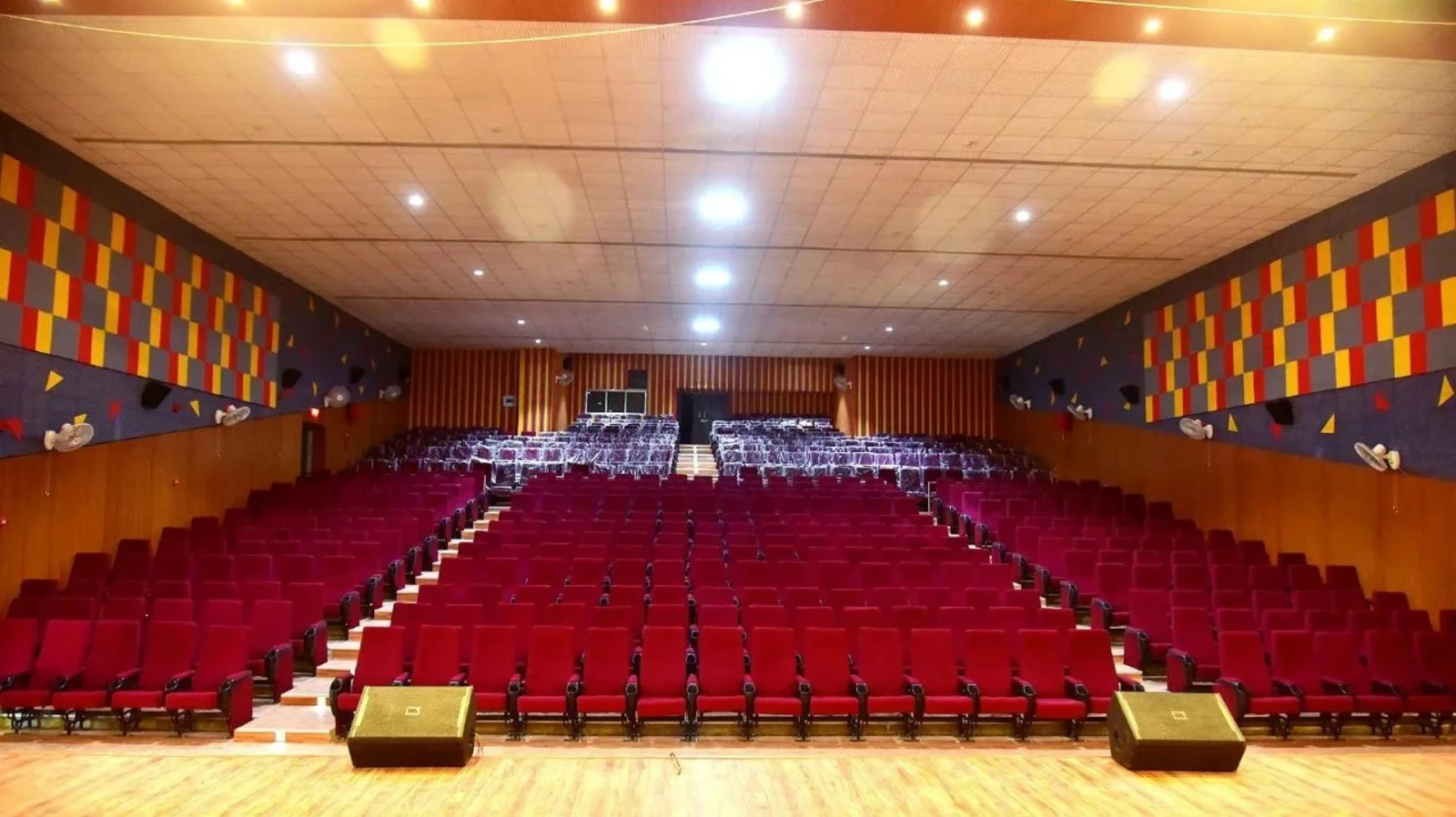

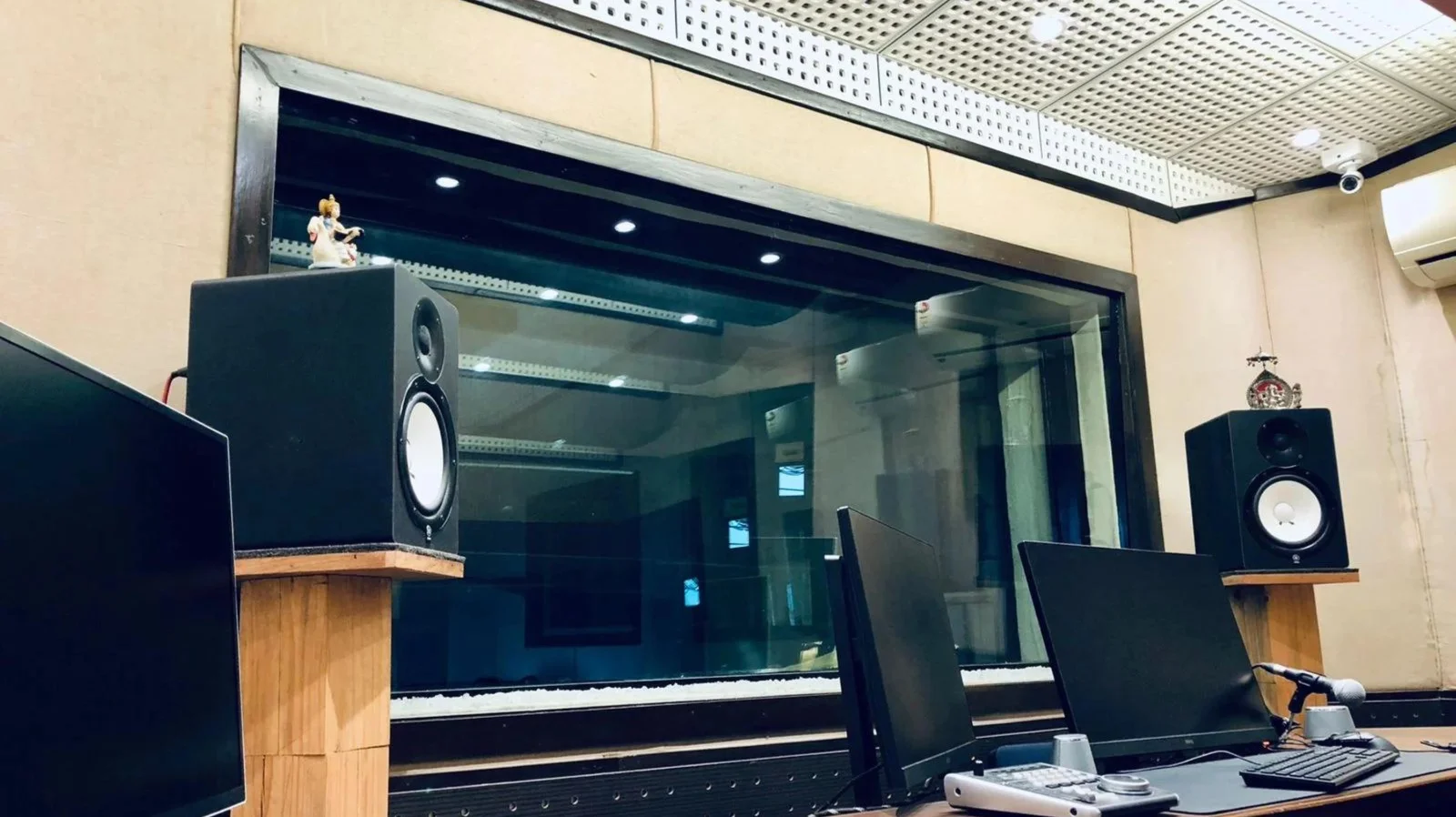

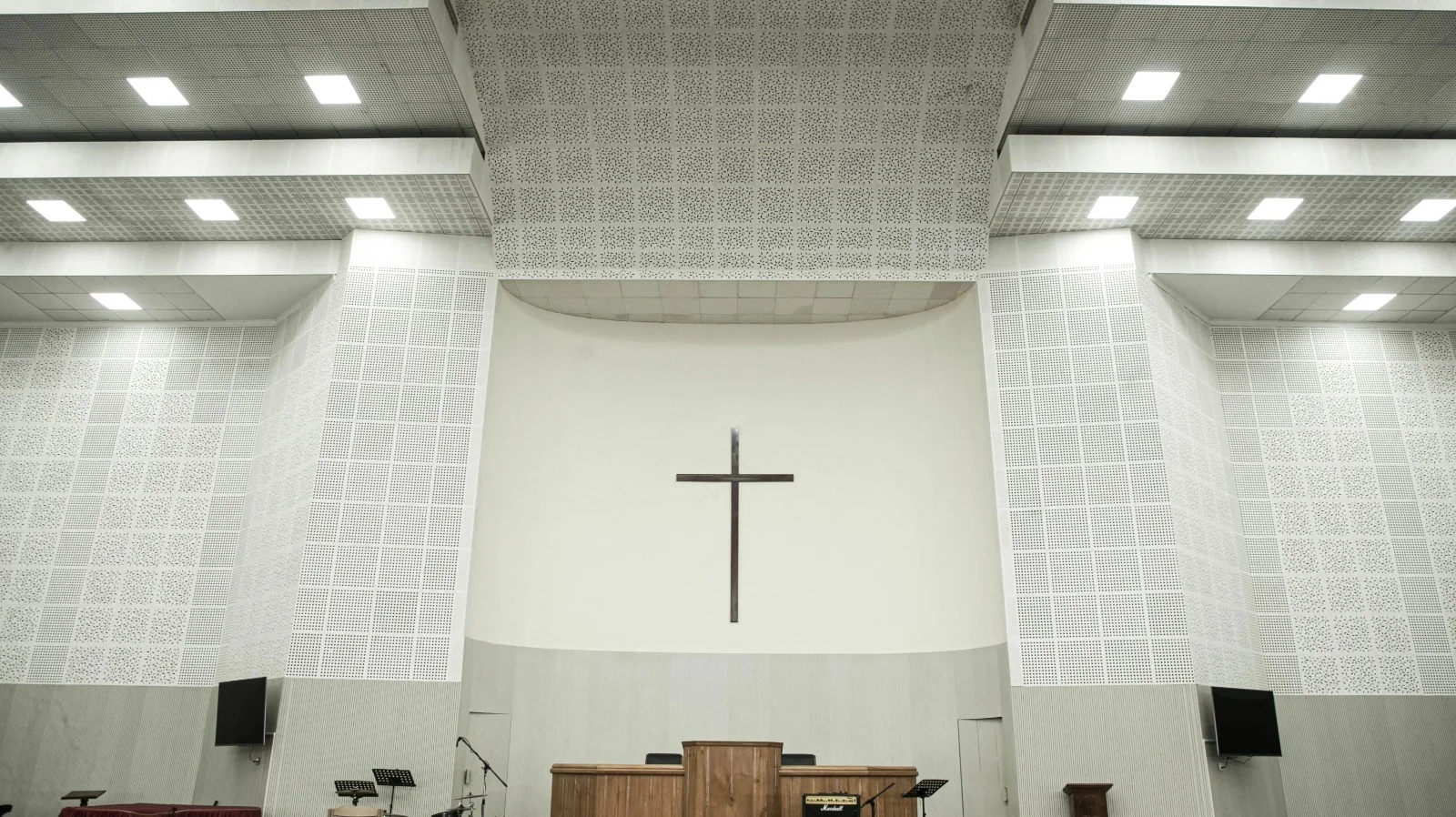

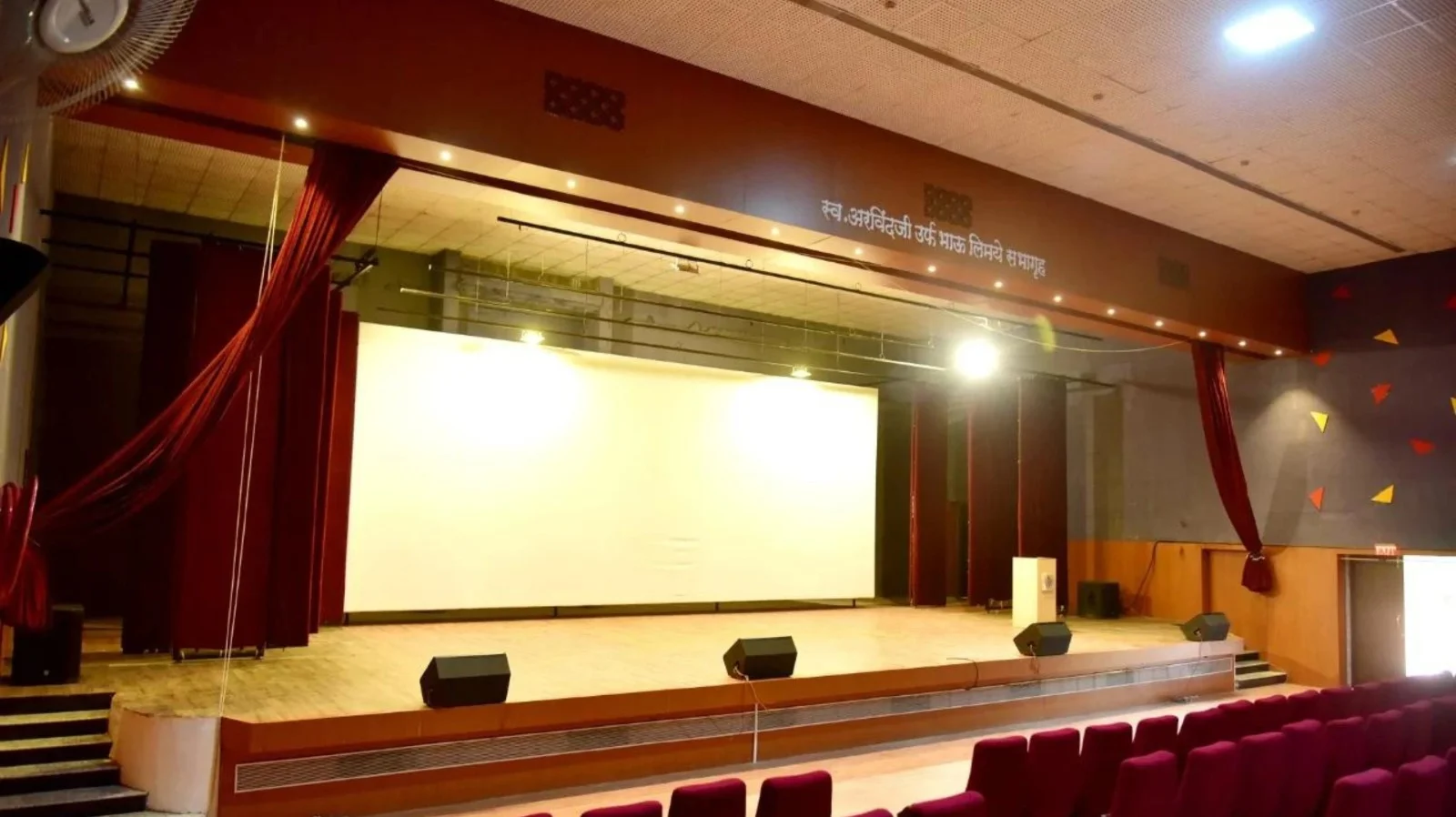

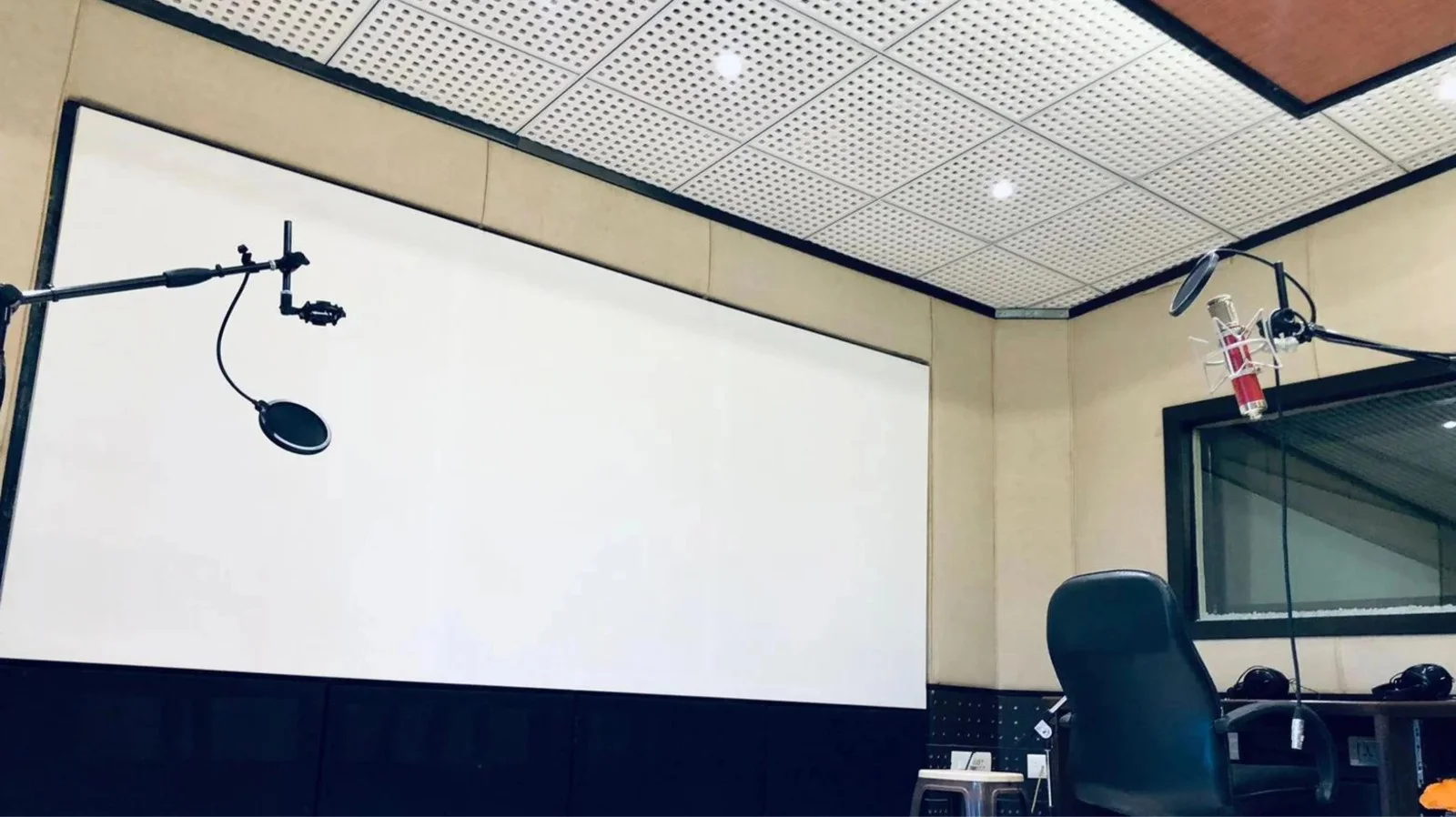

Reference projects with Void

Void beckons with enigmatic allure, a space of endless adaptability. It adorns homes, schools, and kindergartens, effortlessly integrating with standard dry-lining—a captivating realm of design.
