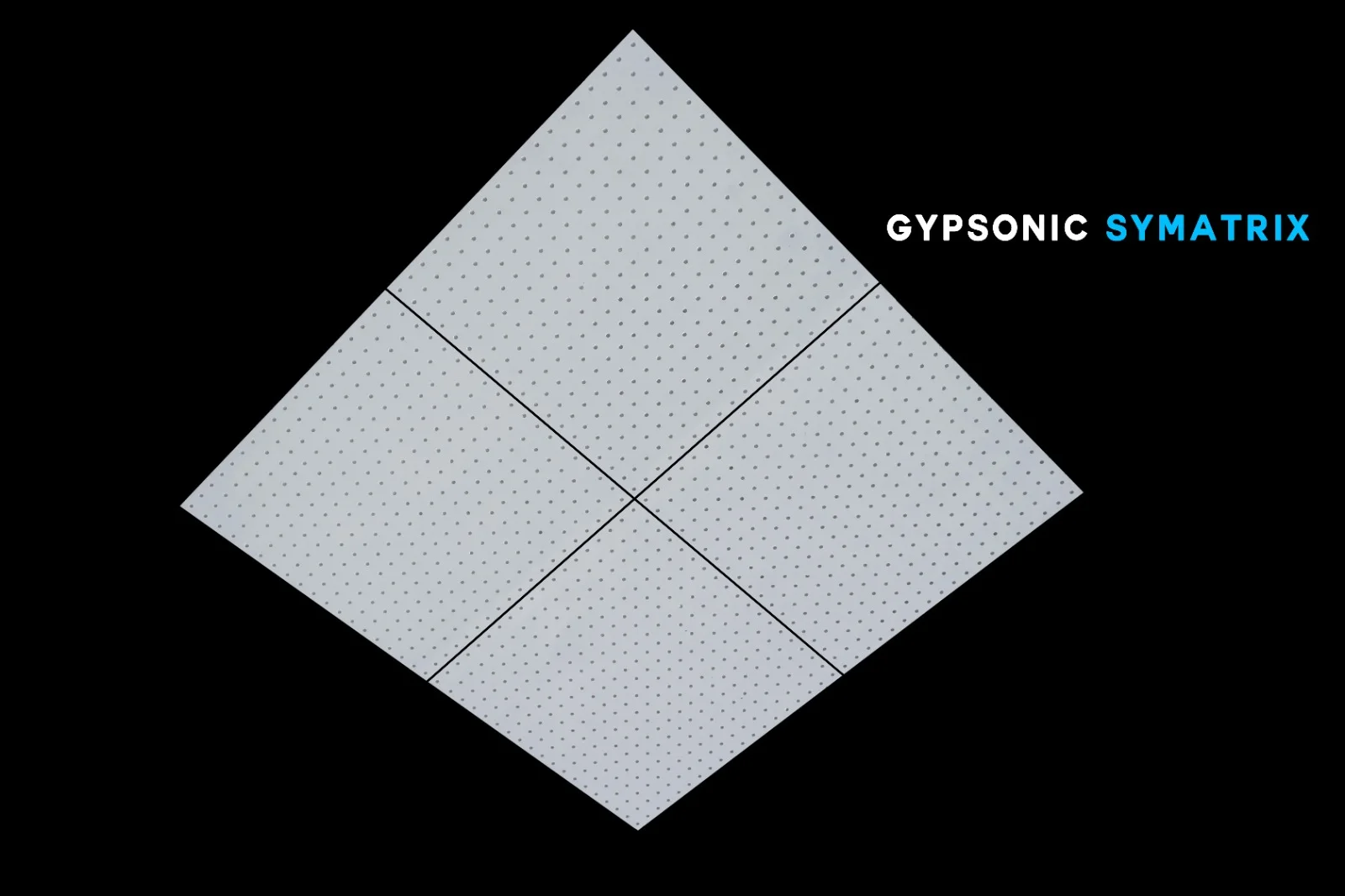

SYMATRIX

Achieve a high standard of design and functionality with our GRG ceiling, which offer long-term durability and acoustic excellence in commercial environments.

drag

Key Features

BUILD QUALITY

30+ Years product life
Aesthetic semi-perforated pattern
Wide design range & versatile aesthetics
Bend-proof panels with high structural rigidity
100% Paperless & fully sustainable
High moisture resistance (RH 99% tested)
100% Fireproof (Class 0 certified)
Free from termite & vermin
Standard Brilliant White finish (pre-painted)

FITTING & PERFORMANCE

T-Grid & seamless screw-fix installation systems
Ceiling & wall installation versatility
Calibrated semi-perforation for 0.62 NRC
Reinforced with pre-stressed glass fiber (GRG)
350 cycles crack-free jolting strength tested
Hidden fixings with no extra painting or filling
Only 28% water absorption (IS 2095 Part 1)
Modified curved panels available

GREEN & SUSTAINABLE

100% Green product (gypsum & glass fiber)
Anti-bacterial: 99.98% microbial reduction (ILAC-MRA)
Improved indoor air quality (particle emission < 0.75 mg)
100% Recyclable & incombustible
Zero VOC & safe material
Sun-dried eco-friendly panels
Enhanced indoor climate conditions

Description

Versatile Installations: T-Grid and Seamless Screw Fixing for Symatrix Acoustical Ceiling

The Symatrix acoustical ceiling provides versatile installation options, including the demountable T-Grid system and contemporary seamless screw fixing.

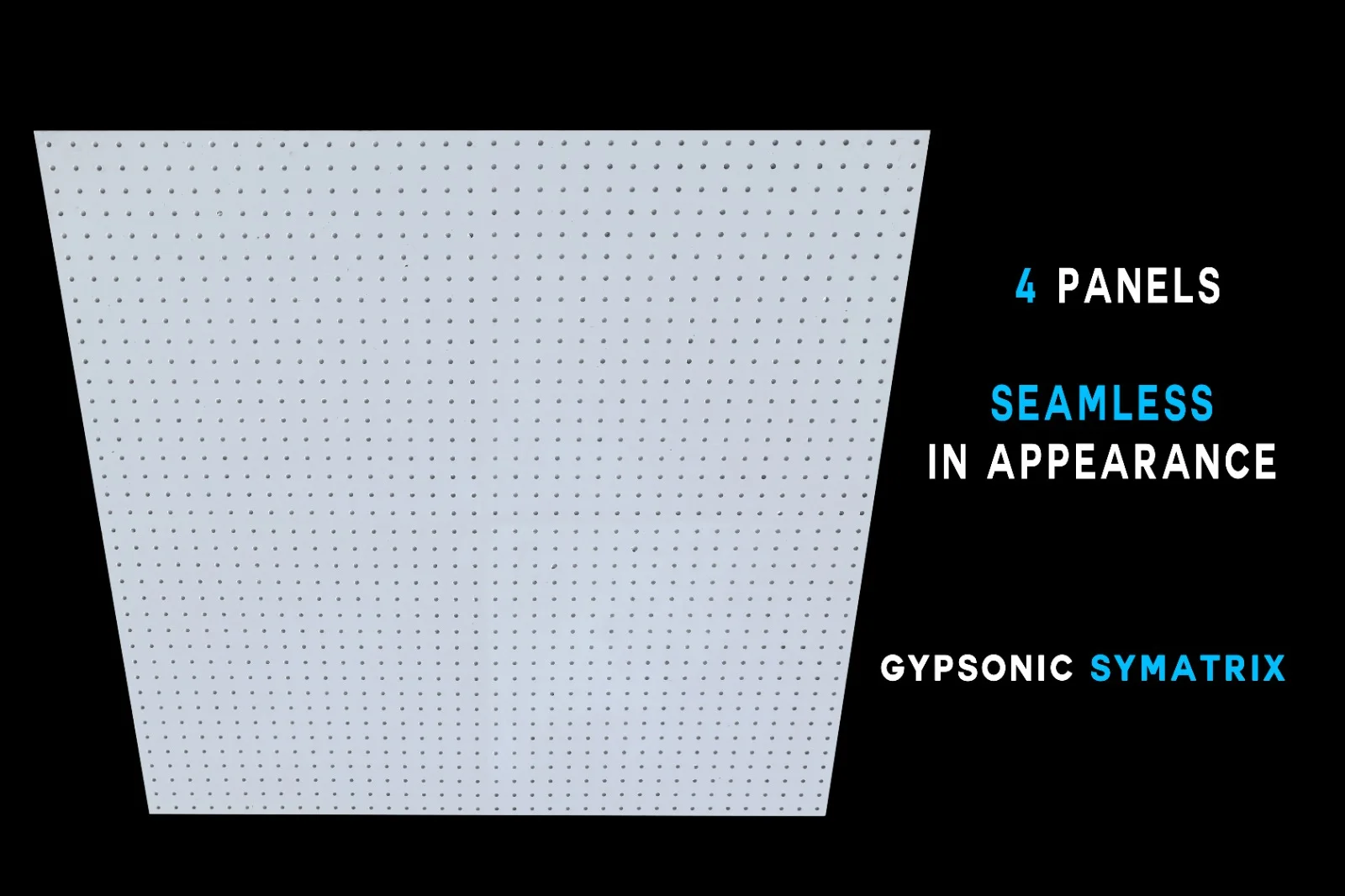

Architects and interior designers can select the preferred method based on project specifications. While T-Grid allows convenient plenum access, seamless screw fixing achieves a sleek, monolithic uninterrupted ceiling line.

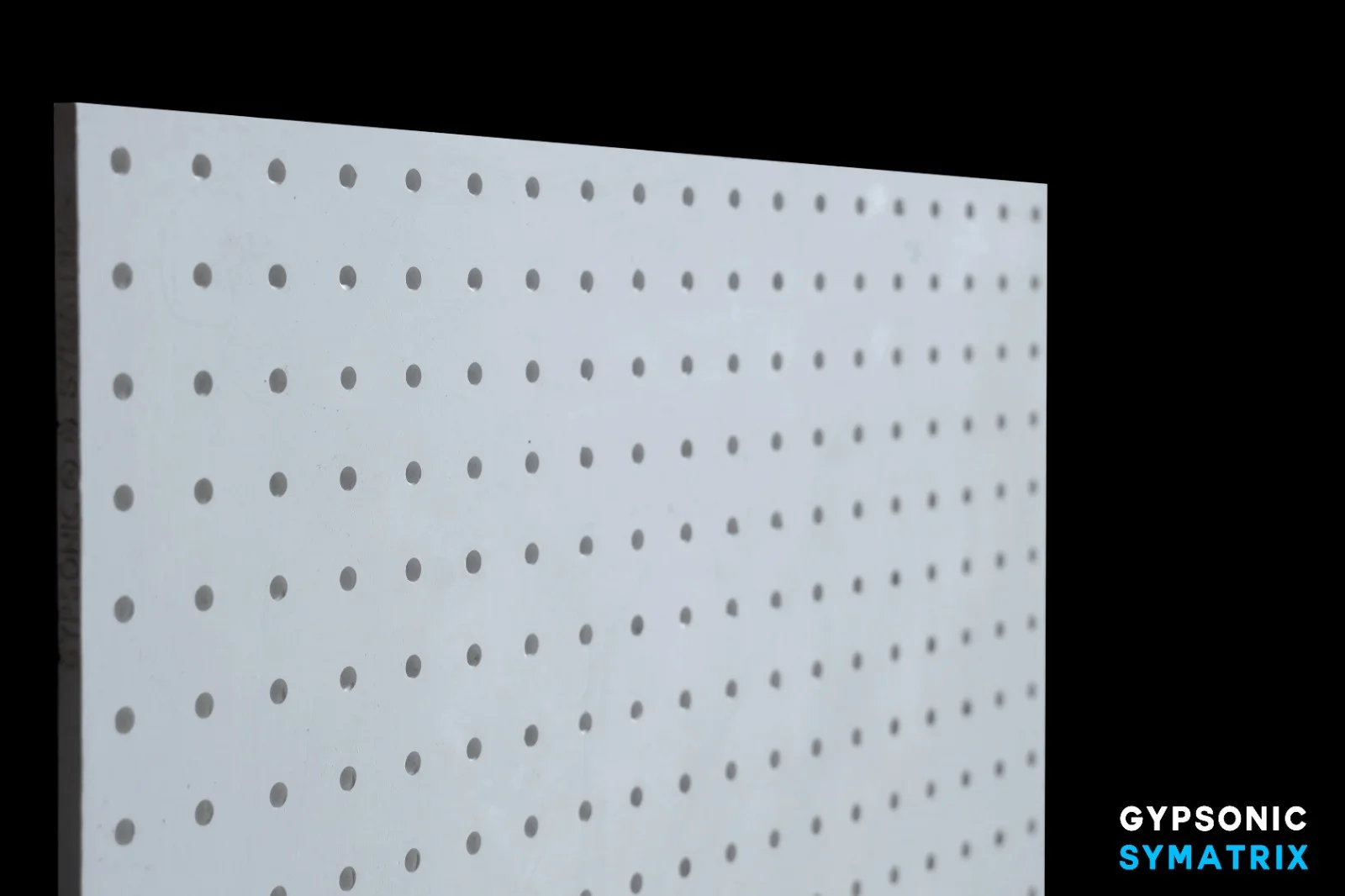

Contemporary Elegance: Distinct Semi-Perforated Pattern of Symatrix

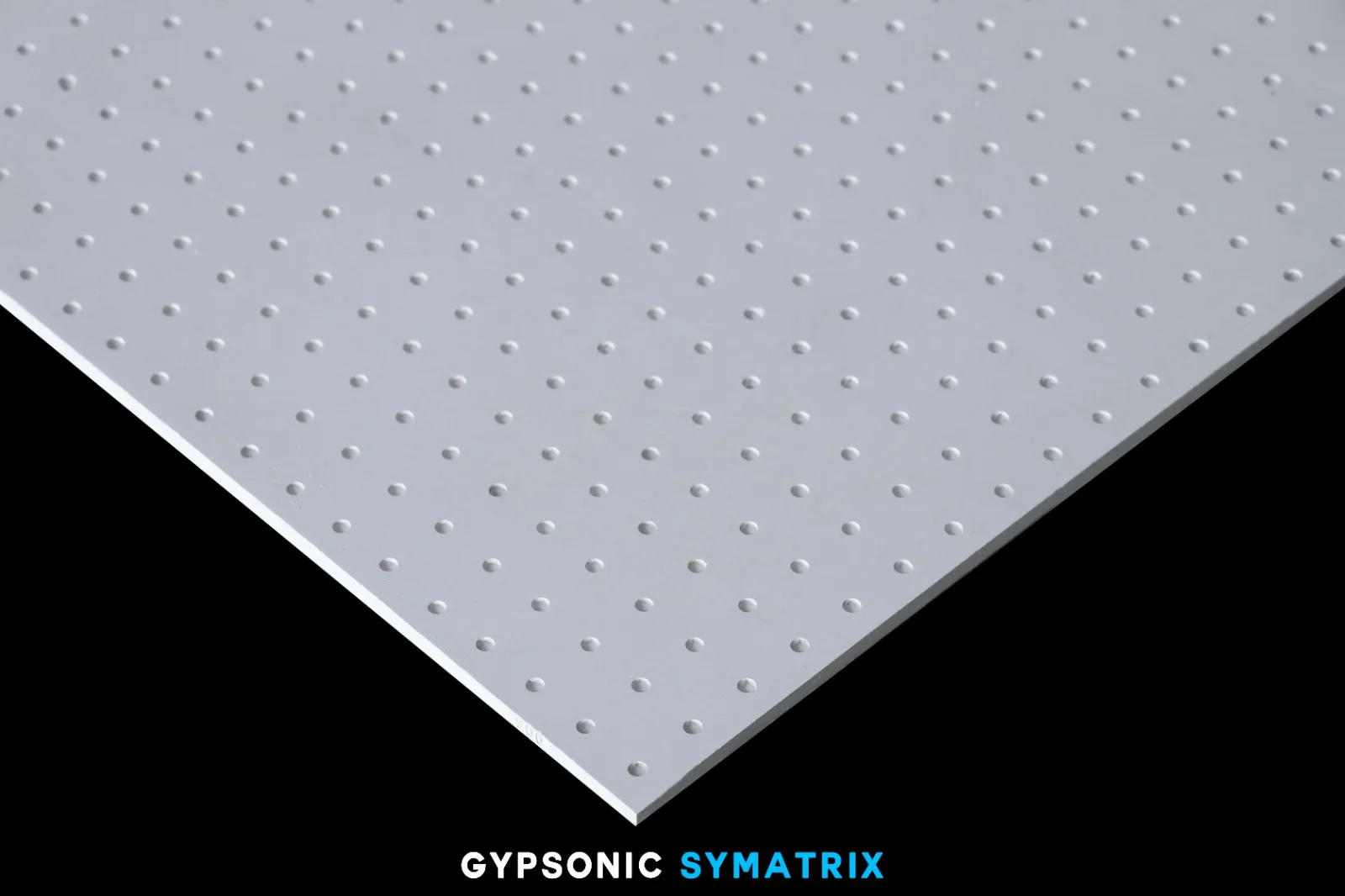

Symatrix acoustical ceiling tiles feature a beautifully balanced semi-perforated design, combining acoustic functionality with a clean, modern aesthetic.

This geometric layout brings architectural rhythm and visual interest to interiors while harmonizing with varied lighting and HVAC fixtures.

Pre-painted in standard brilliant white, it ensures rapid and hassle-free installation without on-site painting or finishing.

Optimized Acoustic Control: NRC 0.62 Sound Absorption

Engineered with acoustic felt backing and precise perforation geometry, Symatrix achieves a sound absorption rating of NRC 0.62.

It controls unwanted reverberation, echo, and noise build-up to deliver optimal speech intelligibility and acoustic comfort in busy environments.

Symatrix creates an acoustically balanced environment ideal for corporate offices, commercial complexes, healthcare facilities, and educational institutions.

Enduring Strength with GRG Material: Robust Structural Integrity

Manufactured using premium Glassfiber Reinforced Gypsum (GRG), Symatrix acoustic tiles provide exceptional bend-proof strength and long-term durability.

Supported by RH99 humidity resistance, GRG panels will not sag, warp, or degrade in demanding ambient conditions.

Certified Class-0 for fire propagation and non-combustibility, Symatrix offers superior fire protection and safety.

Sustainable & Healthy Indoor Environments with GRG

Formulated from pure gypsum and glass fiber without paper, Symatrix ceiling tiles are completely eco-friendly and 100% recyclable.

With 99.98% anti-bacterial microbial reduction and low particle emissions, Symatrix actively promotes cleaner, healthier indoor air quality.

Architects and designers across India rely on Symatrix for high-performance sustainable ceiling solutions that unite durability, safety, and modern design elegance.

Gypsonic – Leading GRG (Glass Reinforced Gypsum), false ceiling, and acoustic ceiling tiles manufacturers and suppliers in Surat, Ahmedabad, Vadodara, Rajkot, Mumbai, Pune, Aurangabad, Nagpur, Nashik, Jaipur, Jodhpur, Udaipur, Bhopal, Indore, Jabalpur, Gwalior, Ujjain, and across India.

Installation Video

Specification

T-Grid

Main-T : 15/24 x 32 mm

Cross-T : 15/24 x 26 mm

Size	595 X 595 mm (+/- 3 mm)
Thickness	10 mm (+/- 0.5 mm)
Weight	Indicative tile weight: 8.1 to 8.3 kg/m2
Surface	Standard Brilliant White
Air Quality Index	Indoor value: 10 days Particle emission: low (< 0.75 mg)
Cleaning	Dust is removed using a dry duster or vacuum cleaner. Marks can be removed with a damp cloth using normal cleaning practices and neutral cleaning solutions.
Moisture Conditions	The product is designed to perform under normal conditions of Use. Tested at 99% RH and 27°C. The product can withstand ambient temperatures of up to 55°C.
Impact Strength	As per IS 13360 part 5/ sec 5 obtained result of 11.90 min against the requirement of 10 Minutes.

Seamless

Intermediate : 45 mm

Ceiling Section : 50 mm

Wall Angle : 24 x 24 mm

Fire Class	CLASS-0 (The time taken for 10% loss in mass was observed 32 Minutes)
Robustness	Made of robust, glass fibre reinforced material with excellent pressure resistance. Under normal conditions of use, the product properties are preserved and there is no decomposition of material over time.
Anti-Bacterial	The product is designed to reduce 99.98% Microbial population (ILAC-MRA)
Water Absorption	The product is designed to absorb only 28% of water against the requirement of 50% Maximum as per IS 2095 Part 1.
Jolting Strength Test	The product does not show crack or chipping off from the surface before 350 cycles.
Perforation Details	Semi-Perforated Pattern
N.R.C. Value	0.62
Certificates	IS 2095 PART-3 (2022) TESTS Declaration of Conformity By Bureau Of Indian Standards (CM/L No. 7100049497)

Acoustics

Range (Hz)	125	250	500	1000	2000	4000	NRC
Symatrix (α_s)	0.16	0.40	0.62	0.75	0.50	0.24	0.62

All India First License

APPROVED BY

Documents

Product Brochure

Gypsonic© | Datasheet

Test Reports

Gypsonic© 12 Material Property Tests

Installation Guidlines

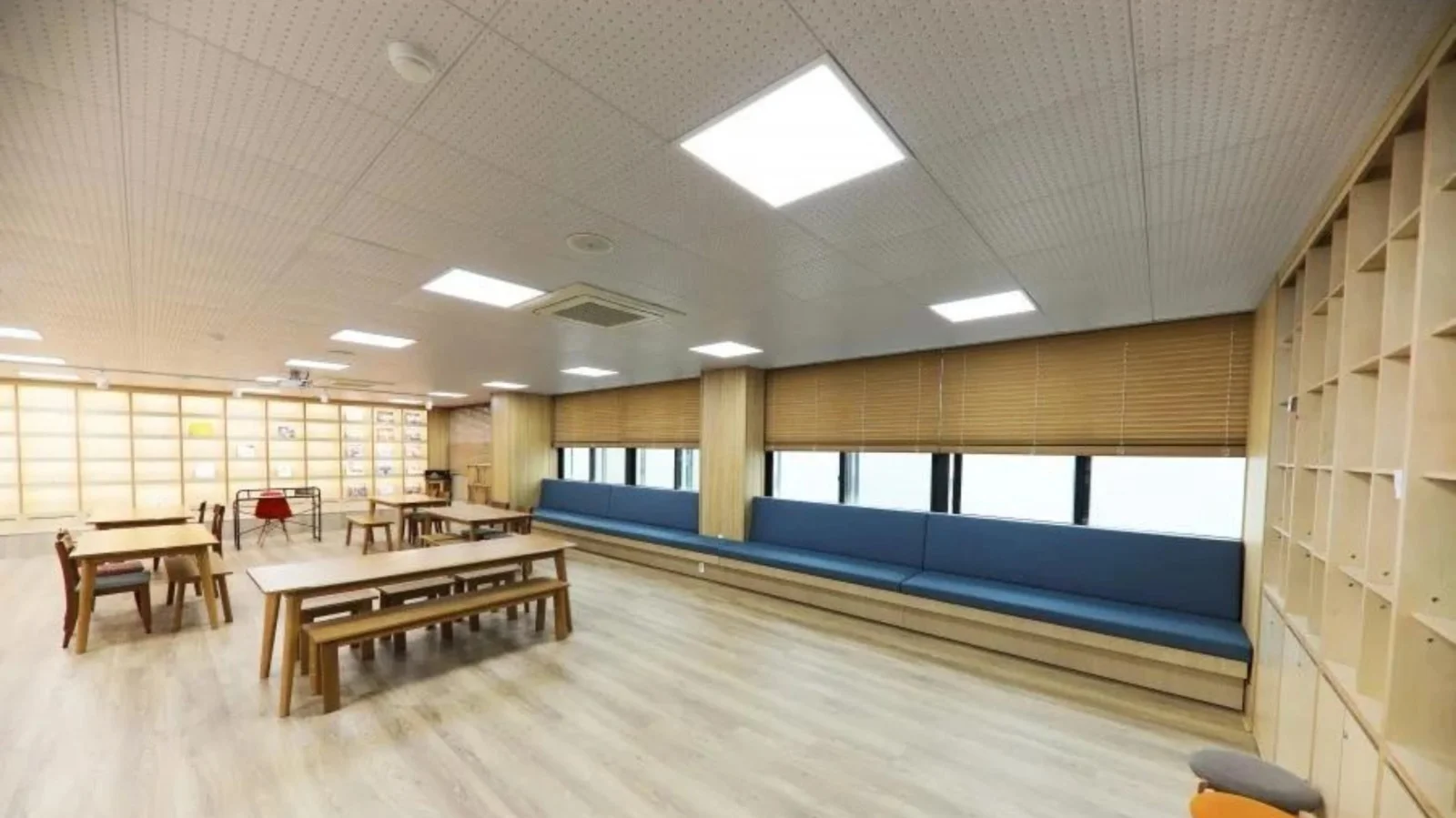

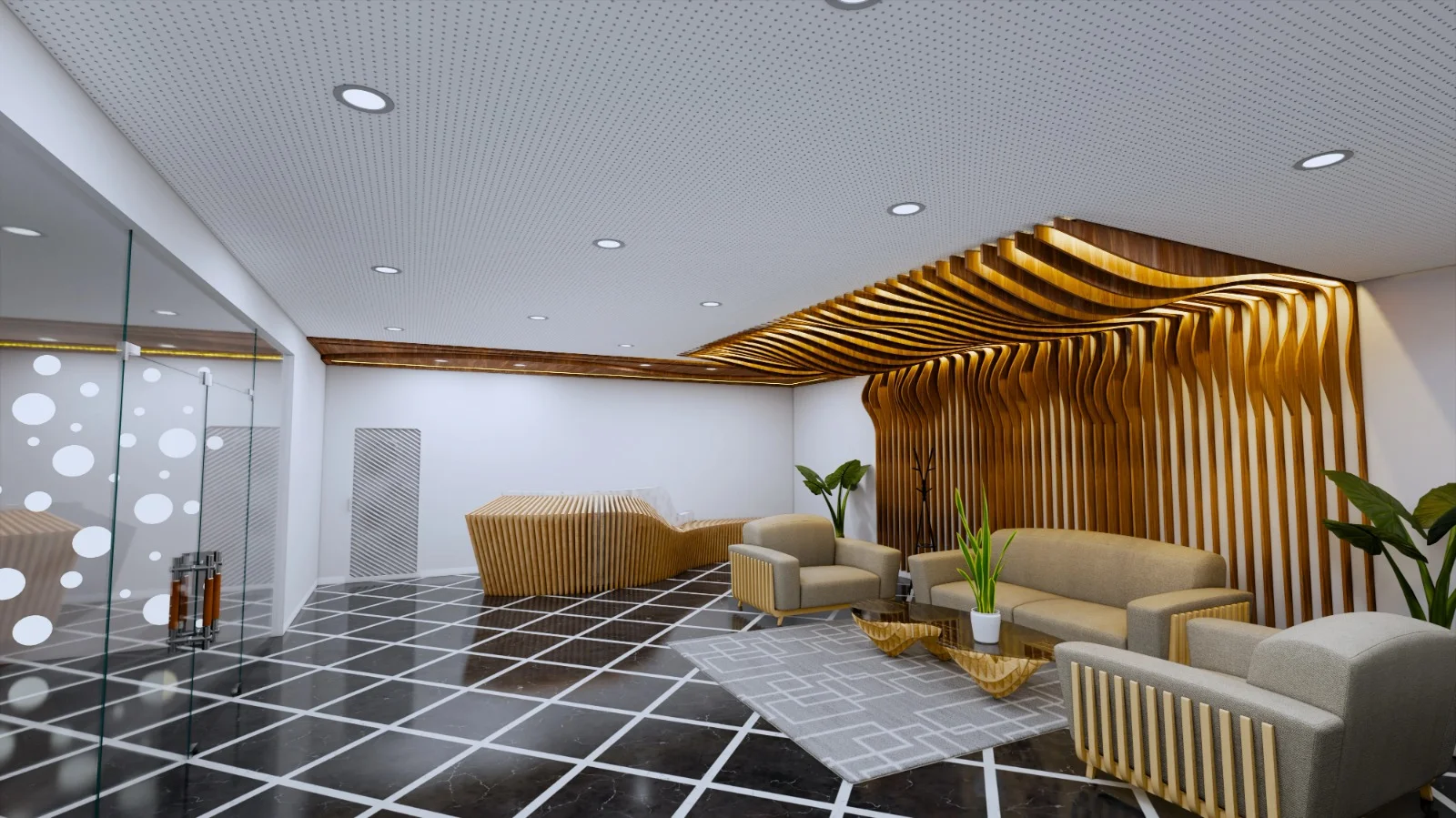

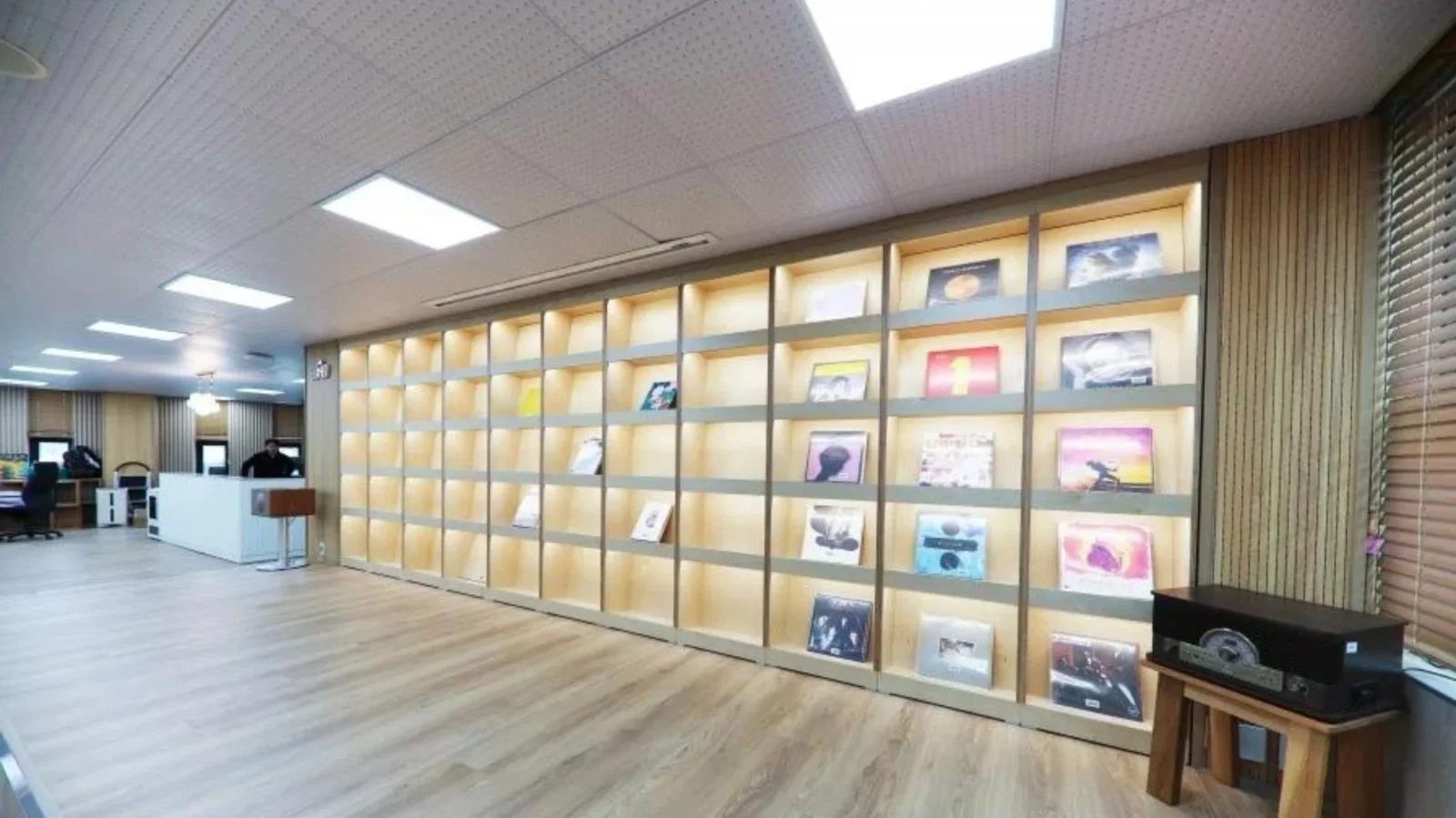

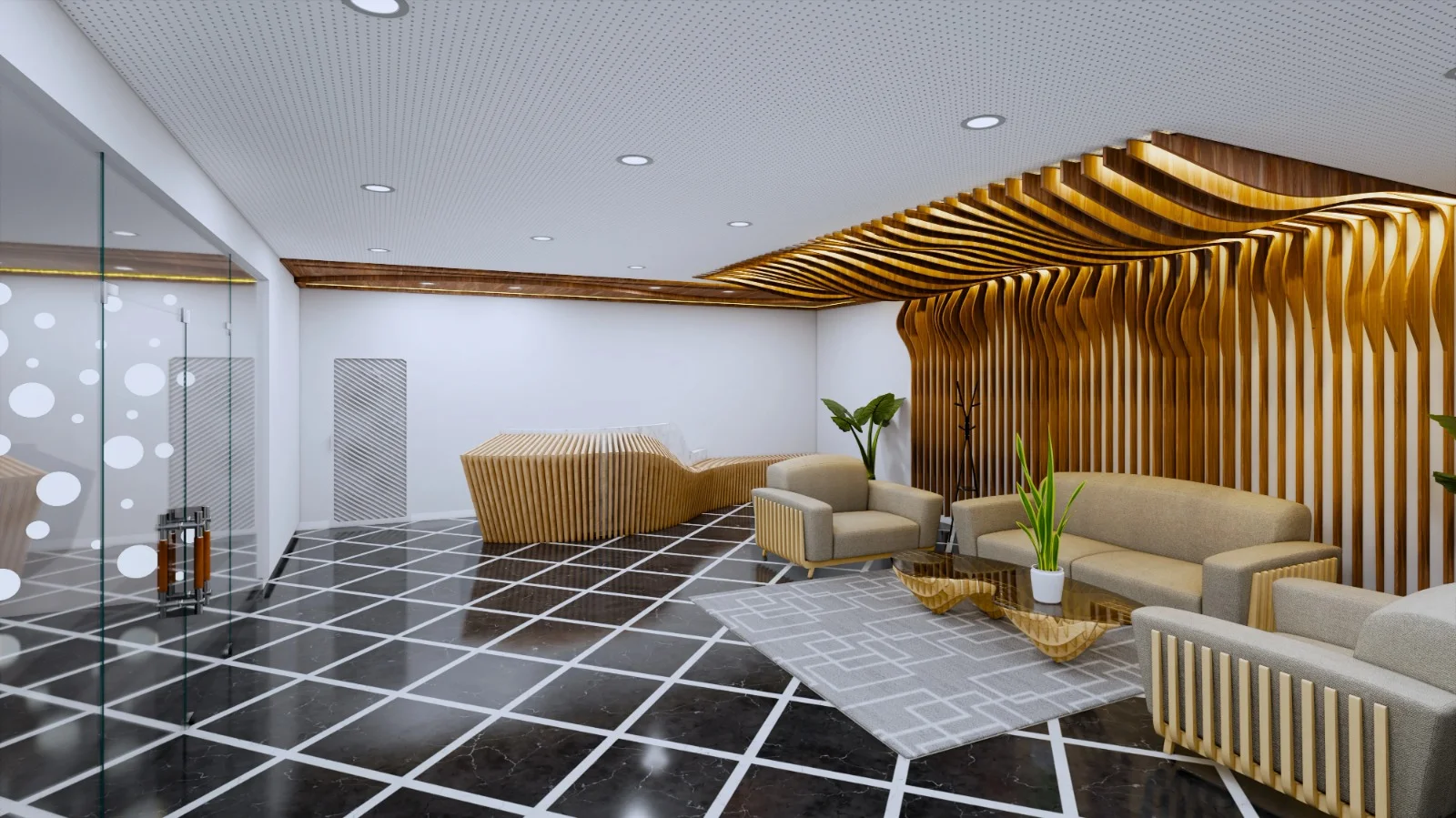

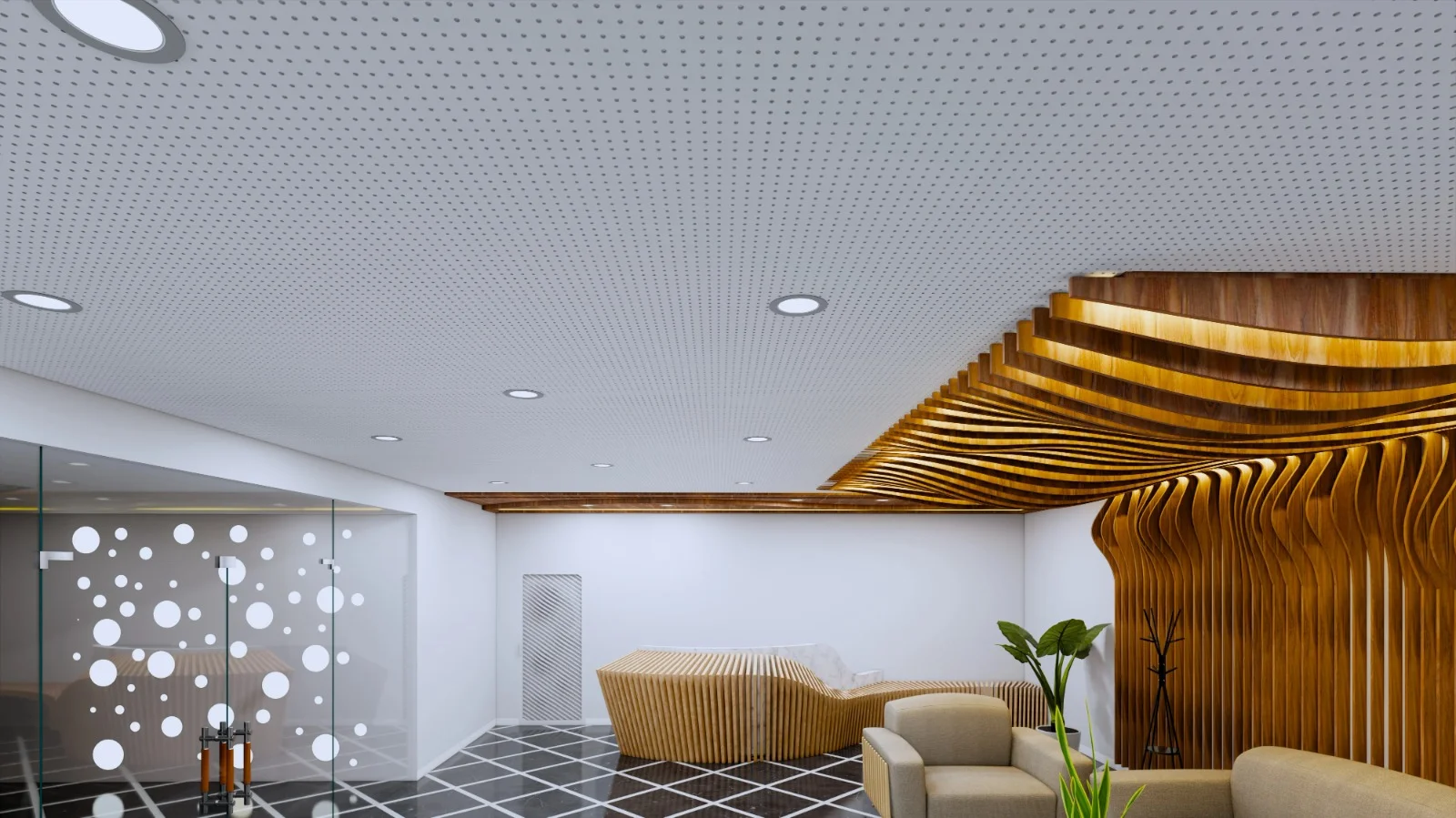

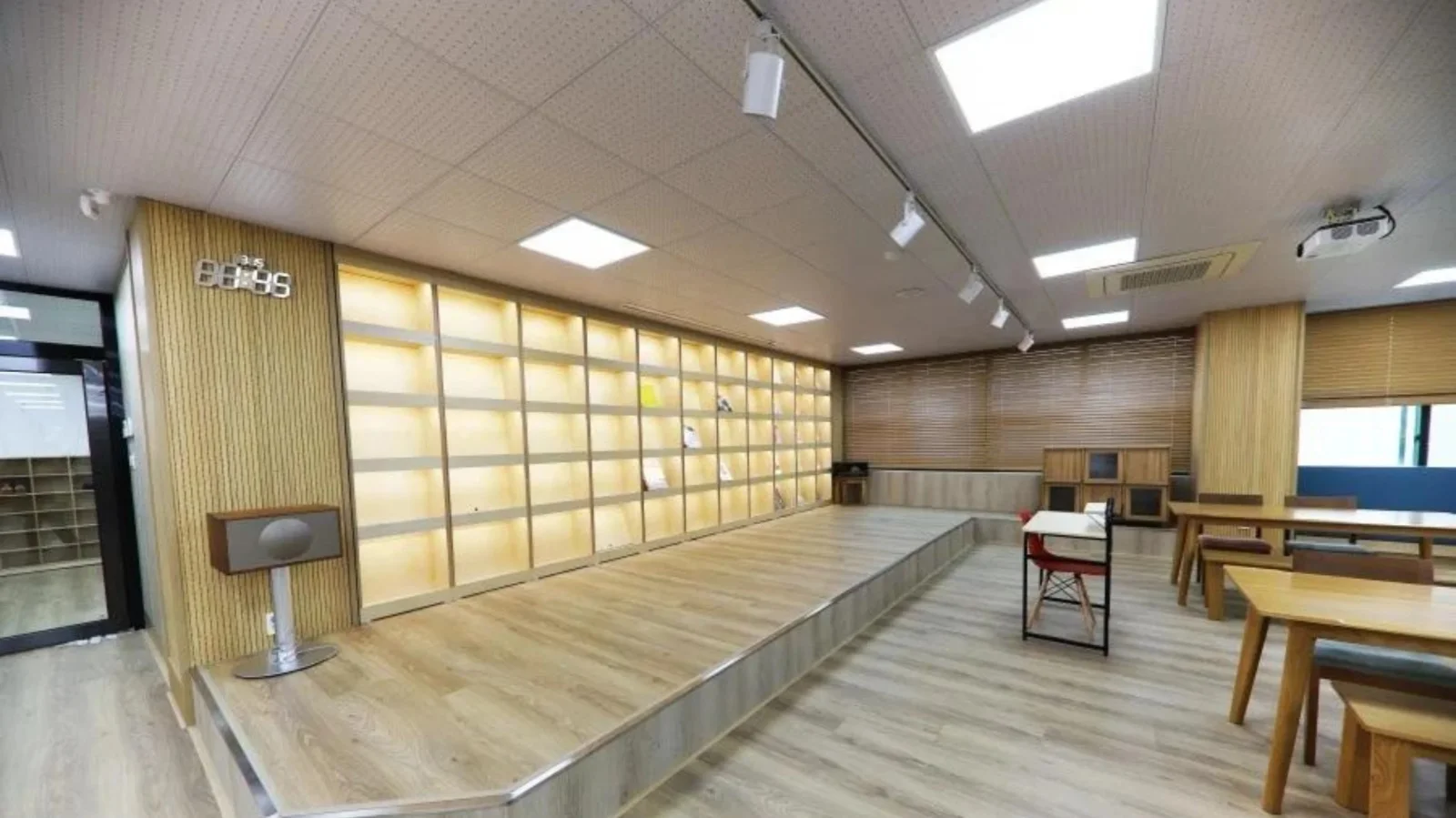

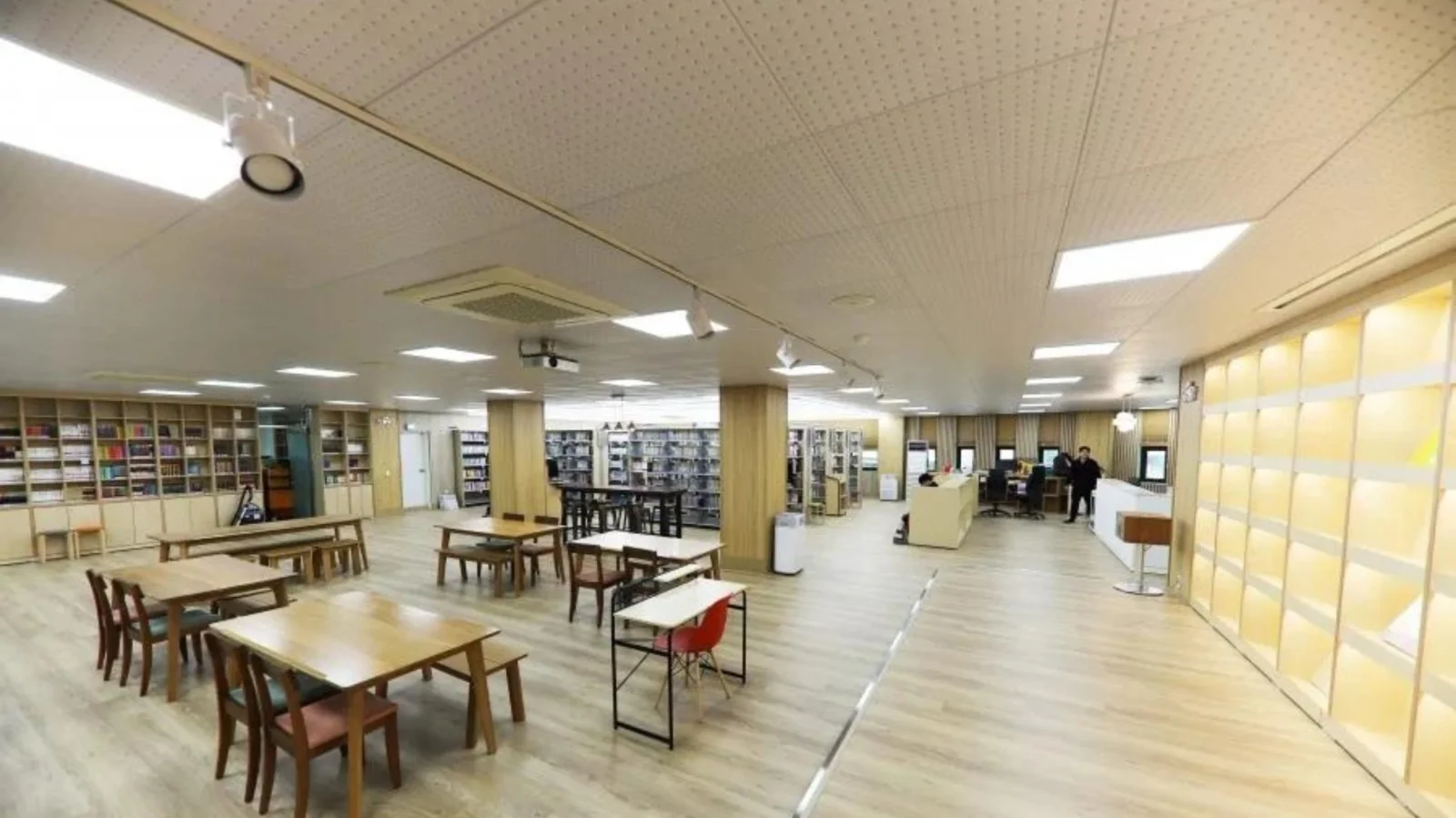

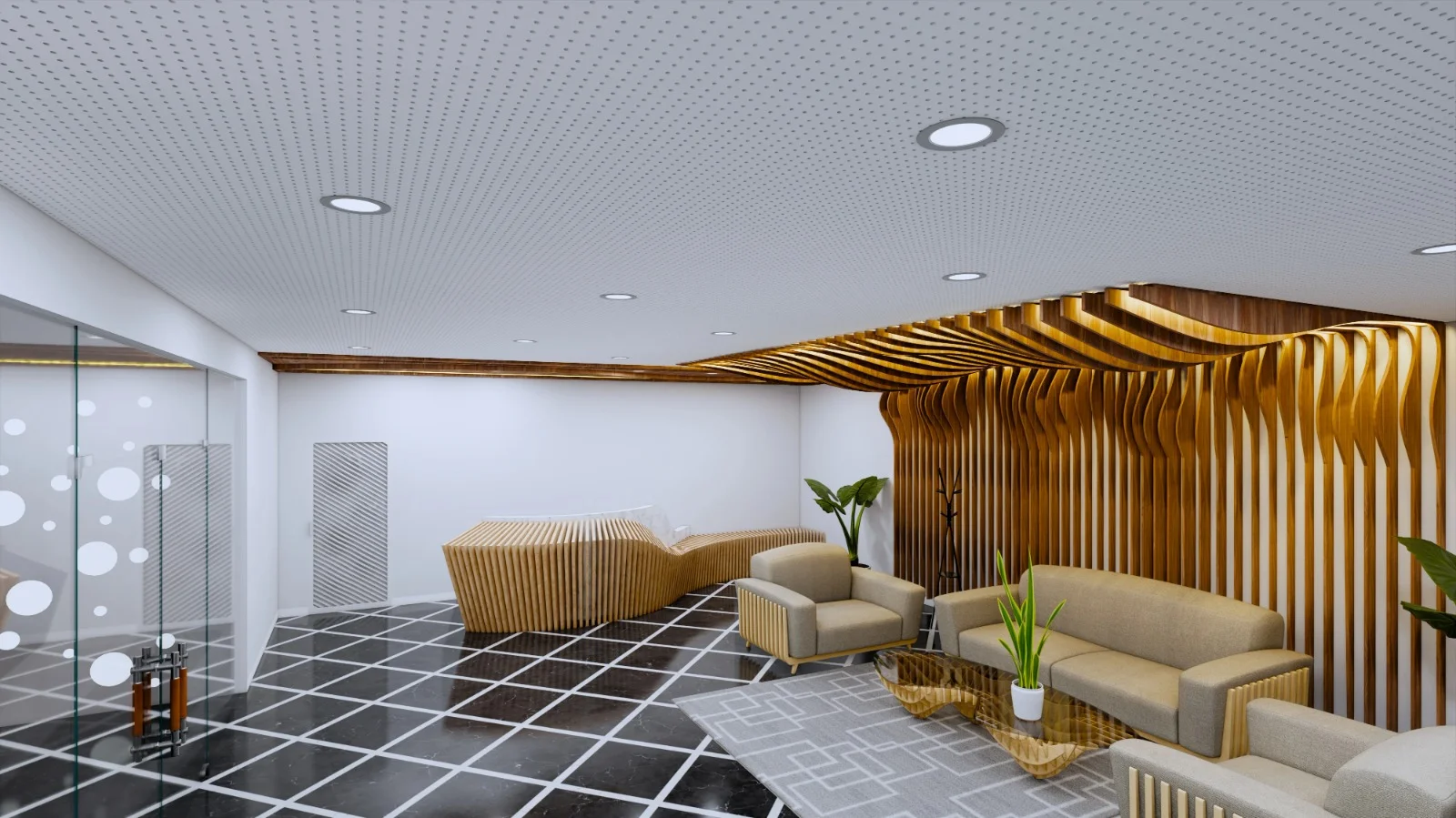

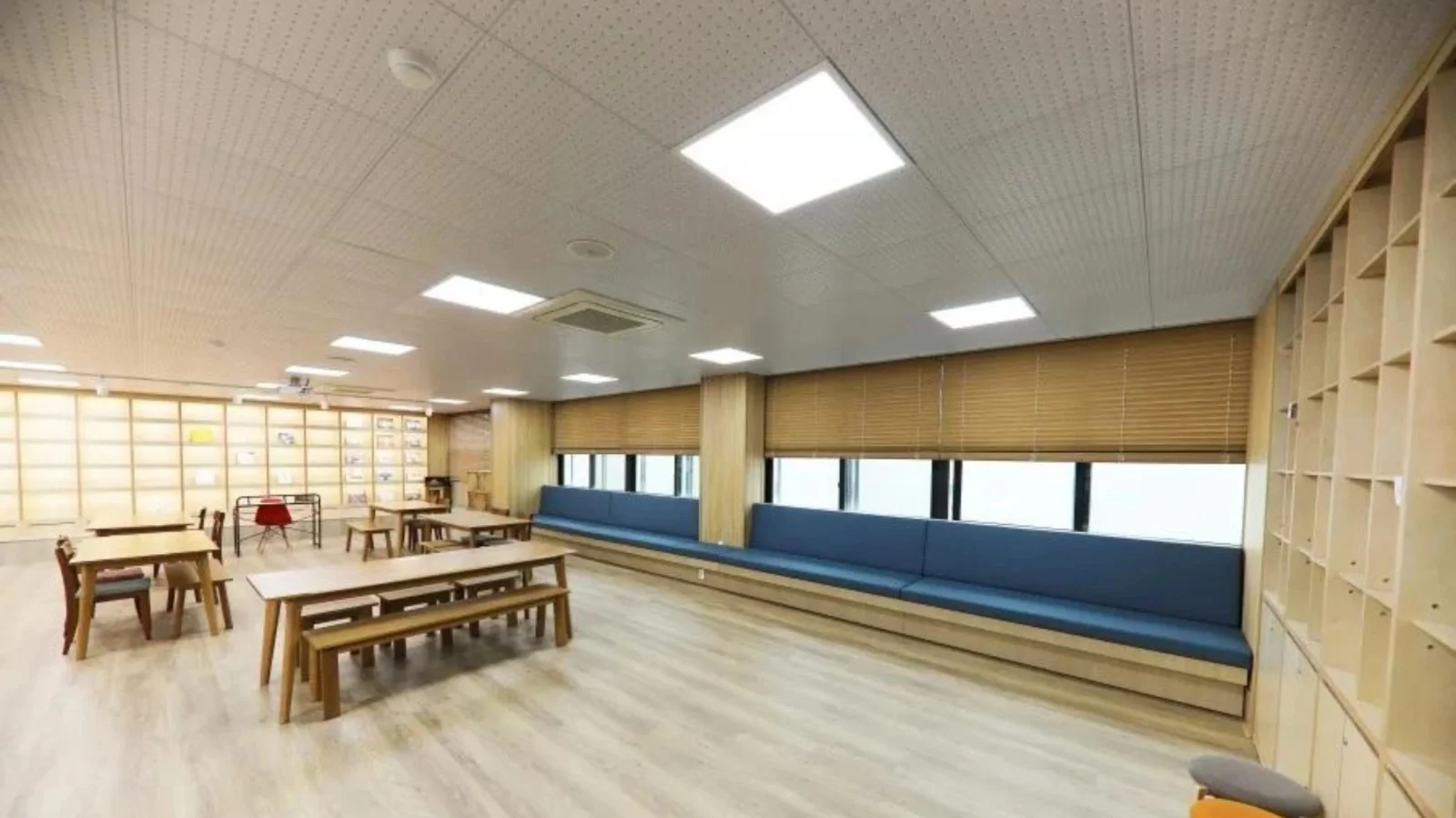

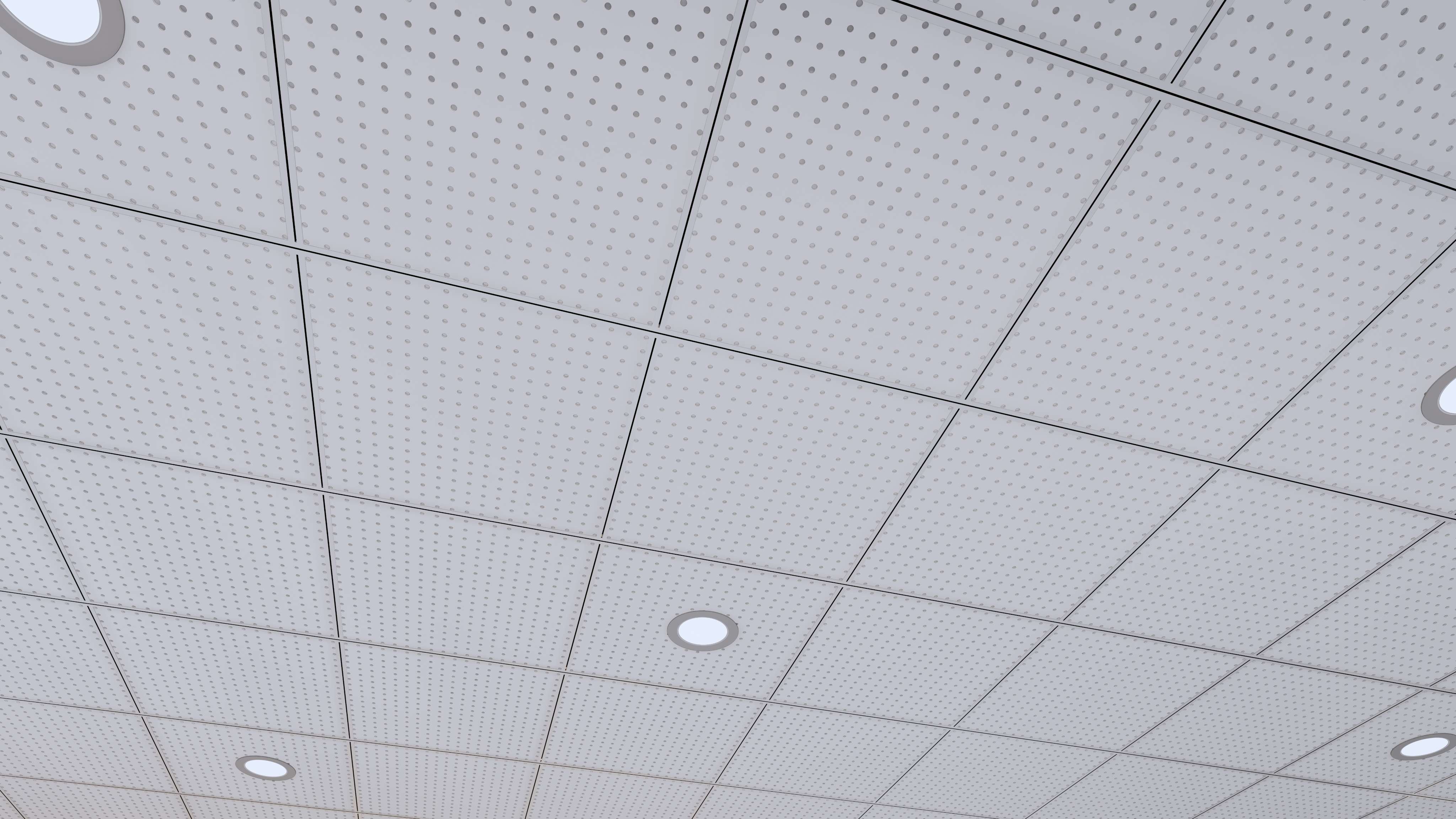

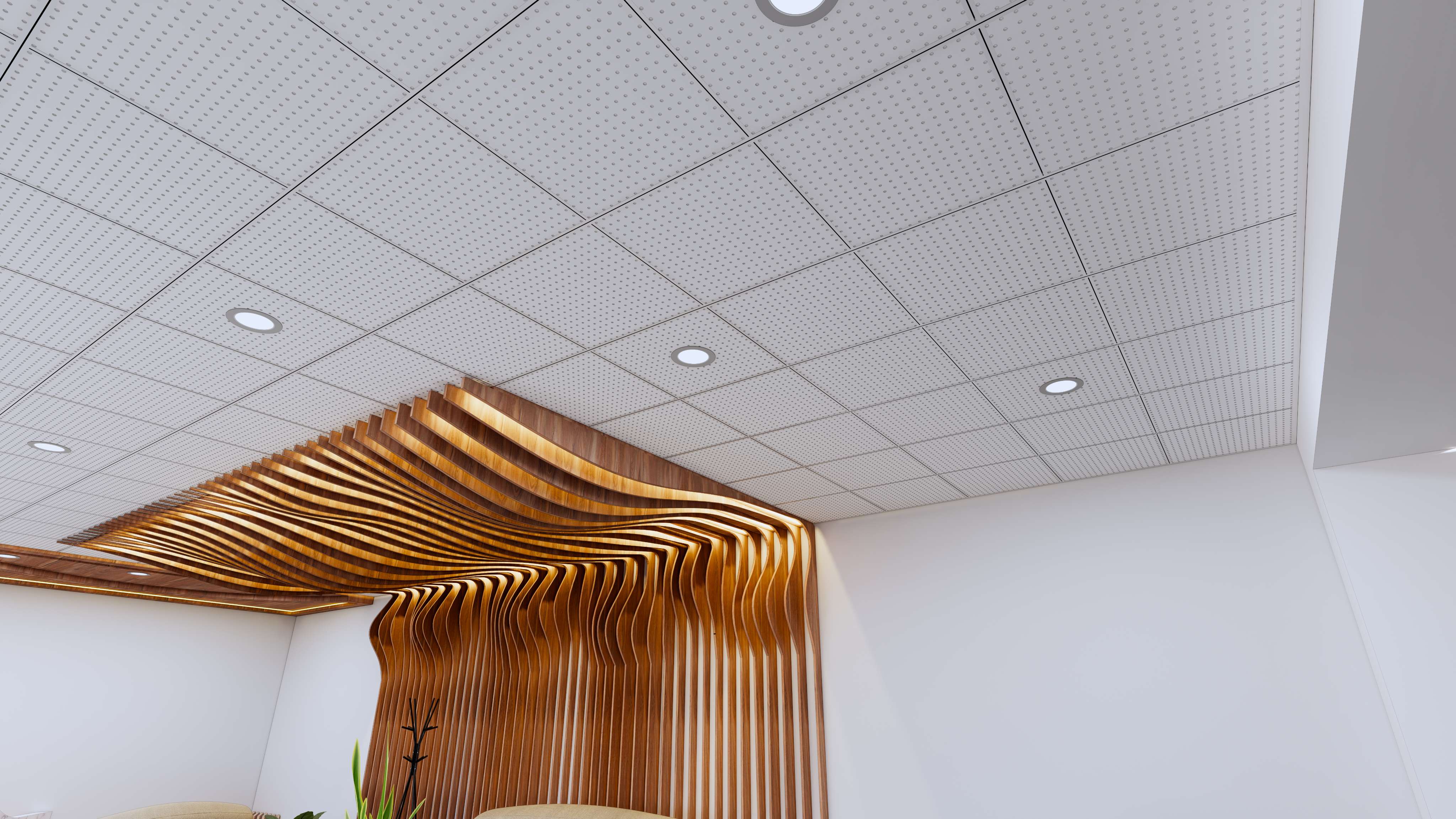

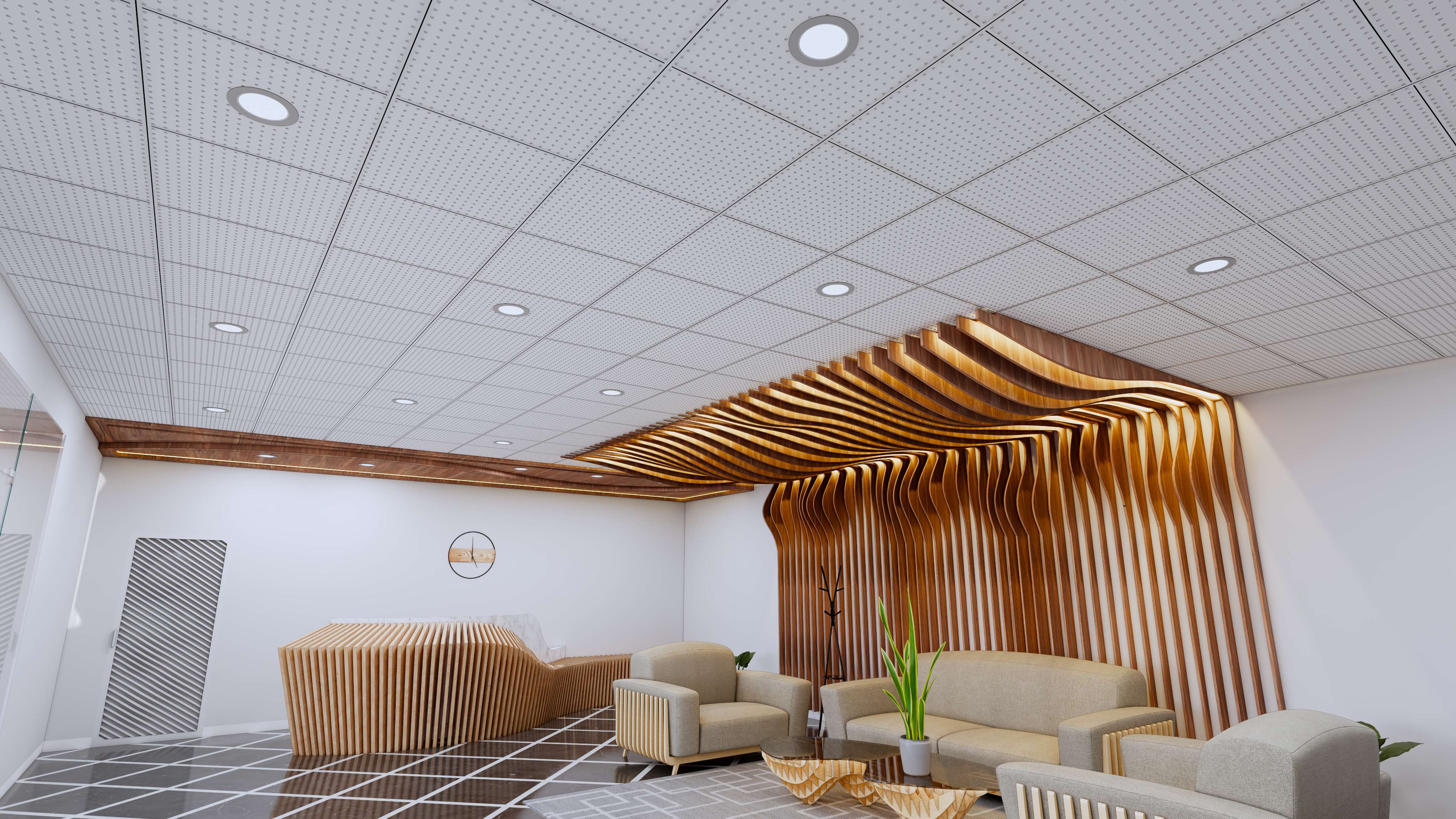

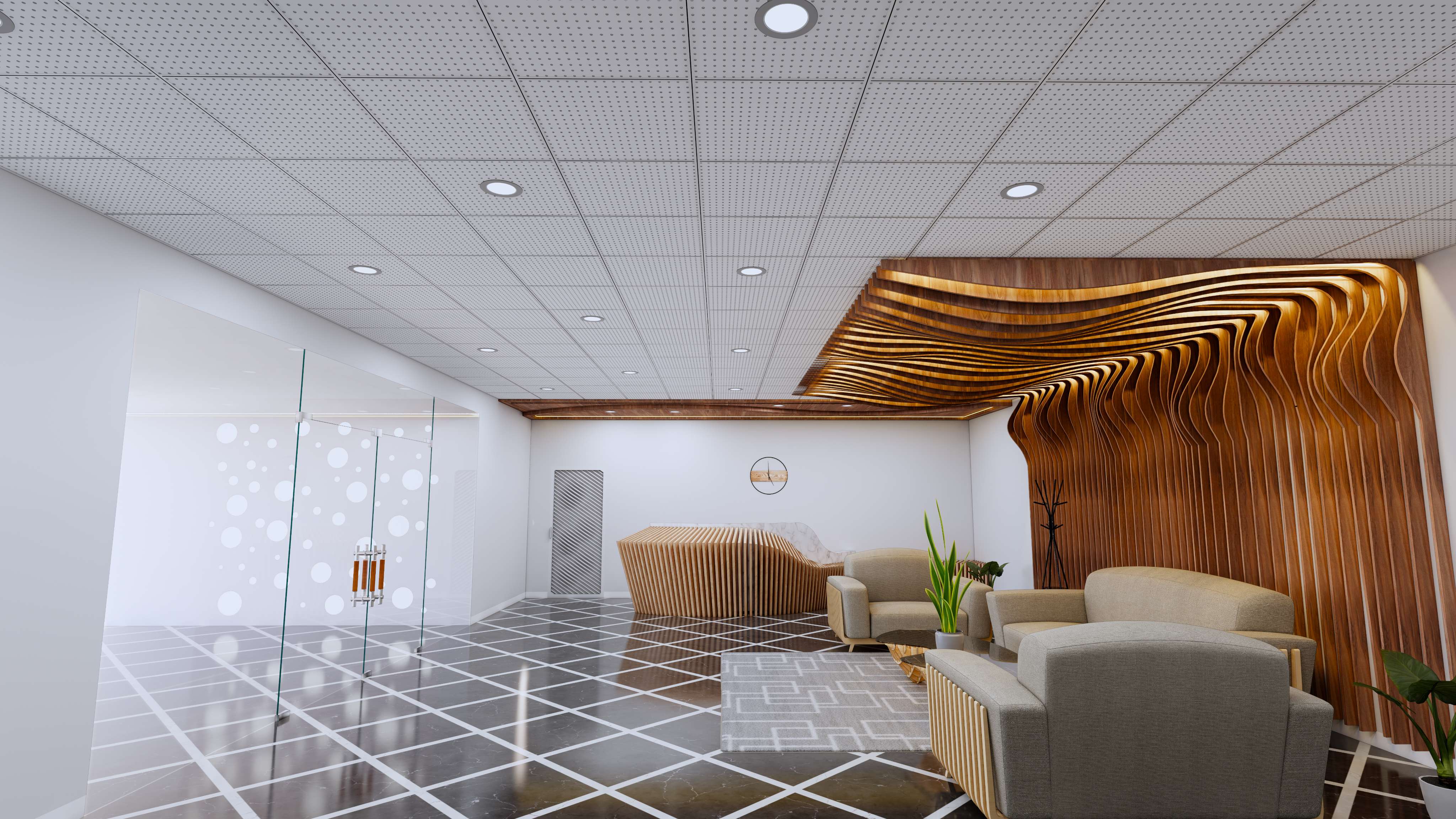

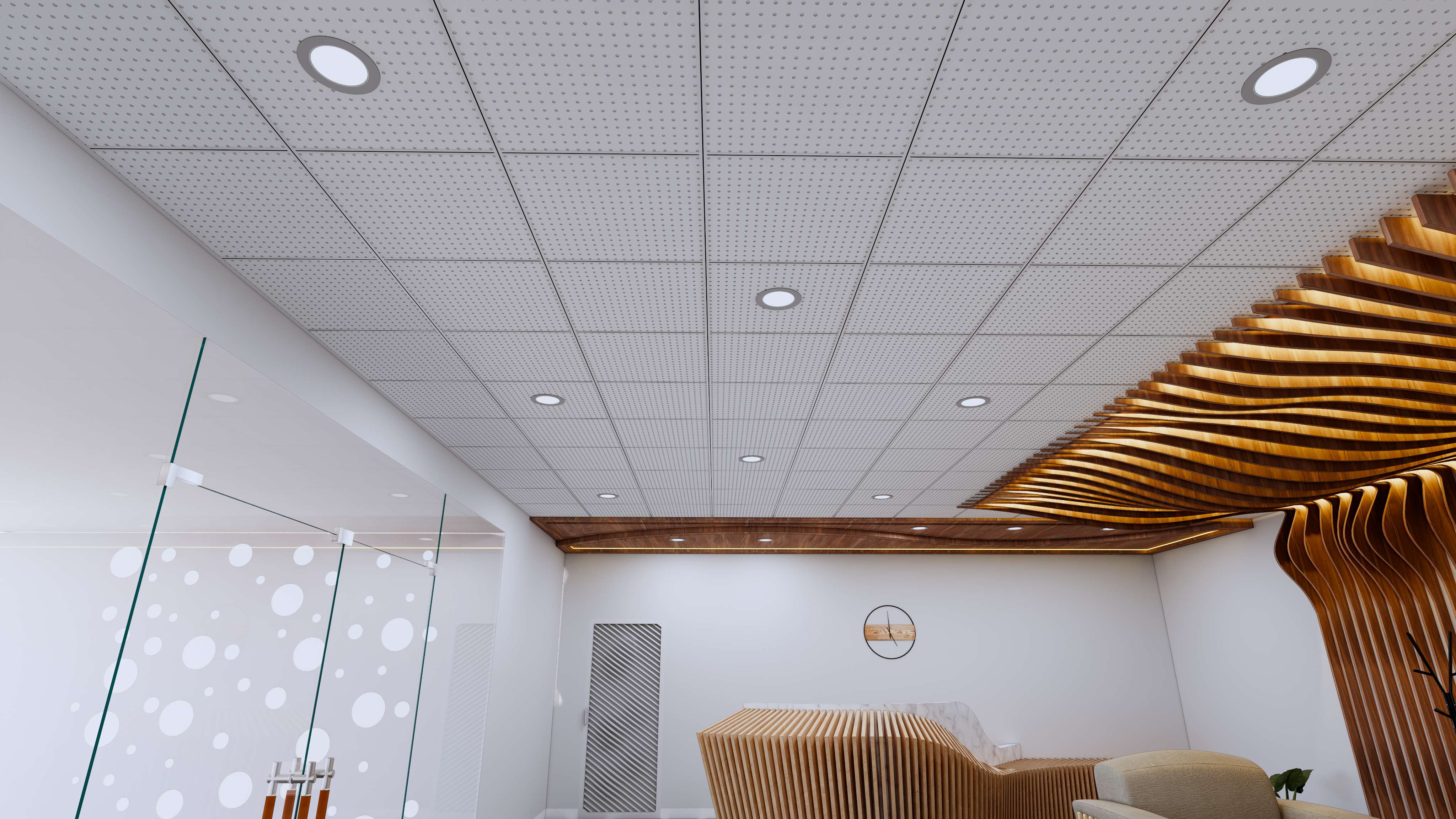

Reference projects with Symatrix

Symatrix weaves intricate versatility, an artistry of precision. It finds its place in homes, schools, and kindergartens, seamlessly uniting with traditional dry-lining—a symphony of design with boundless potential.
