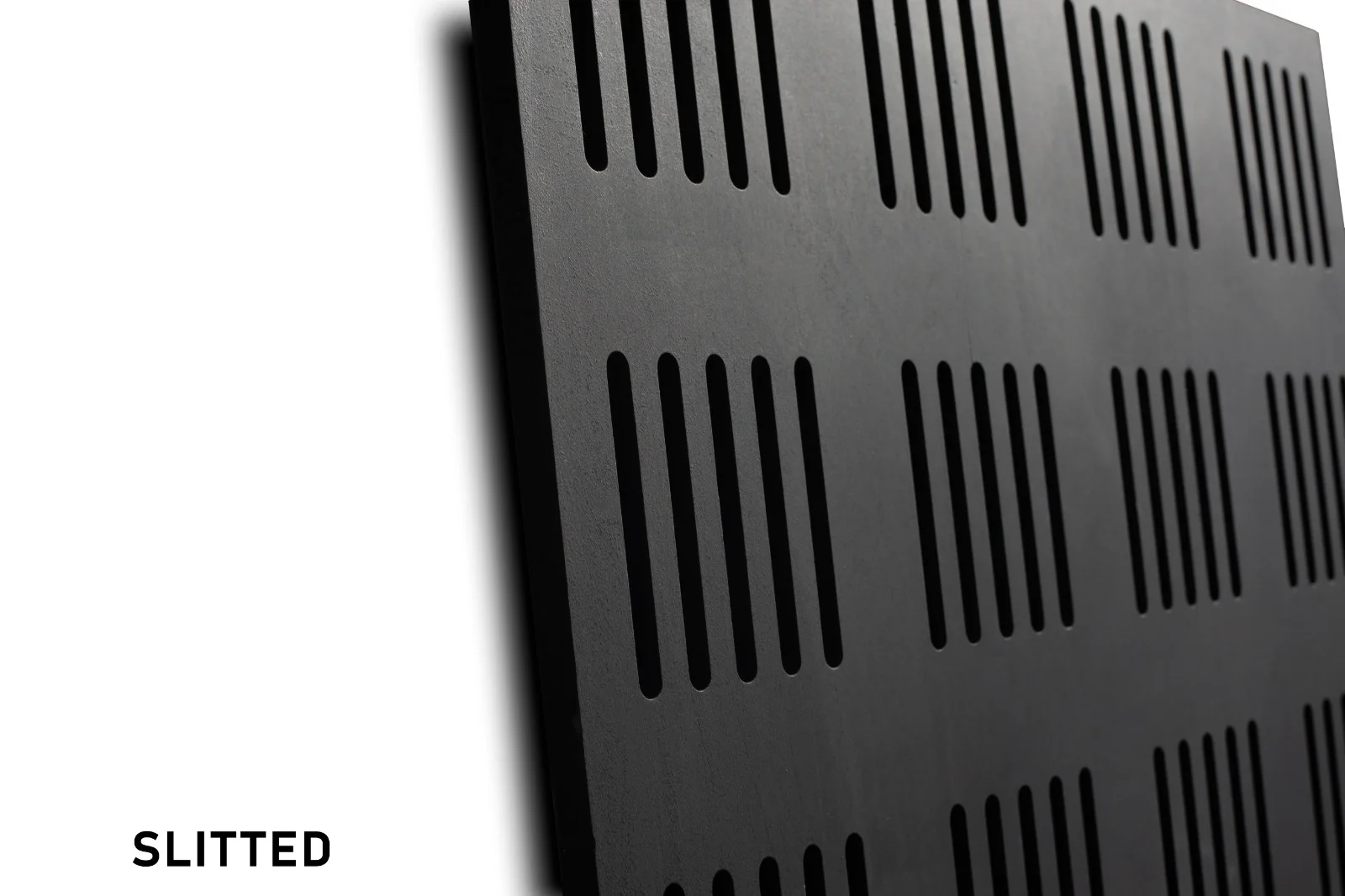

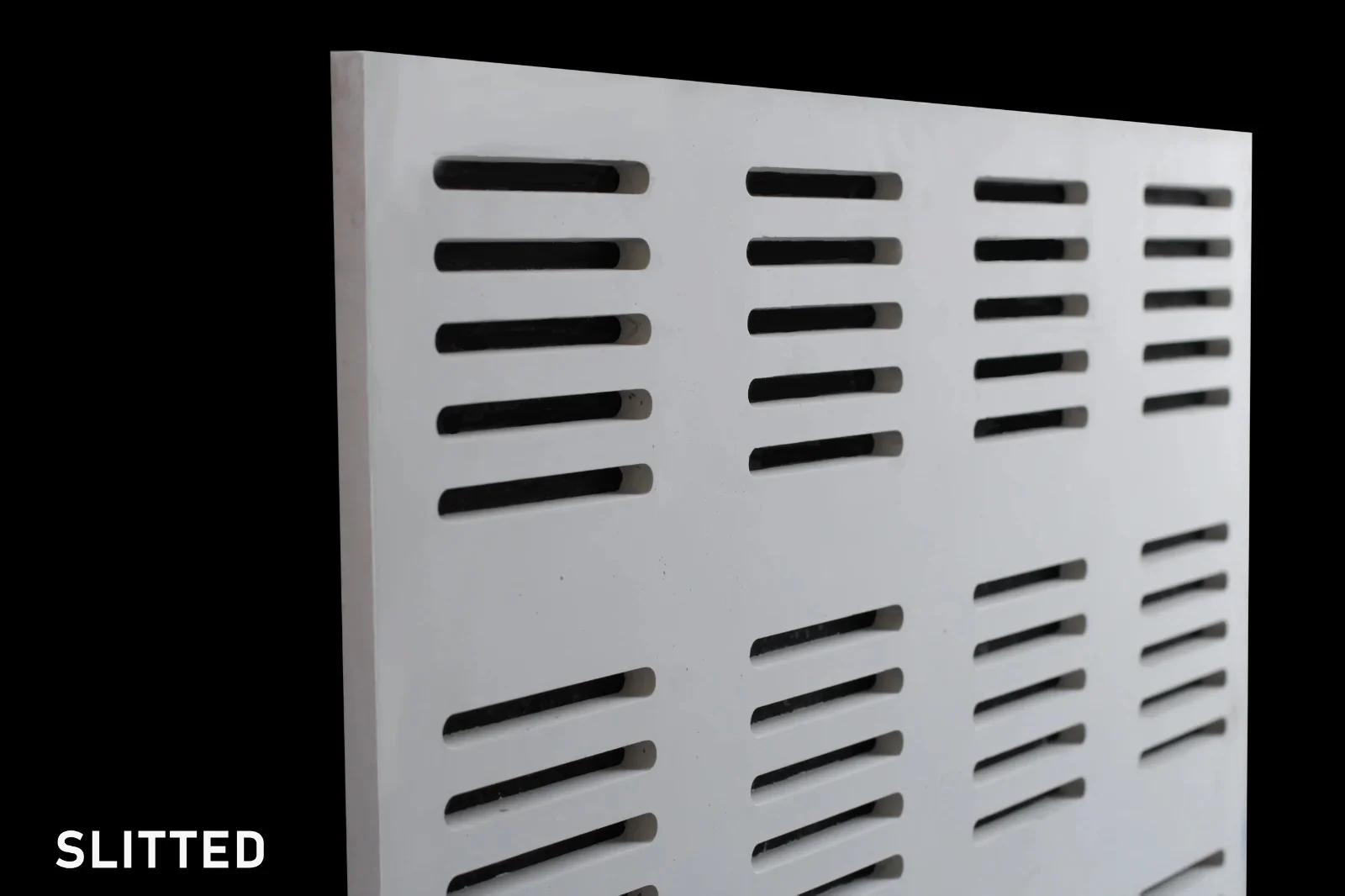

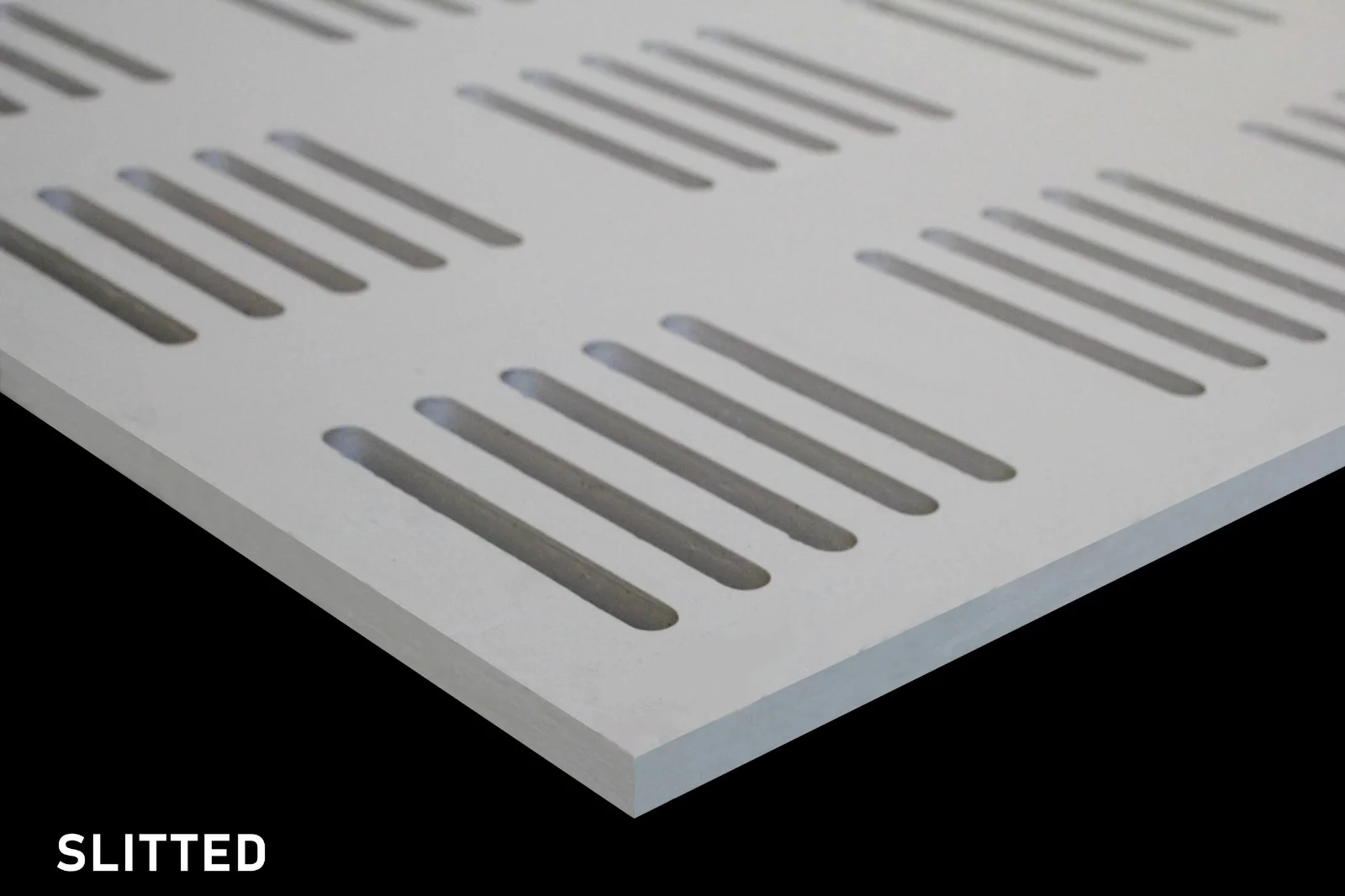

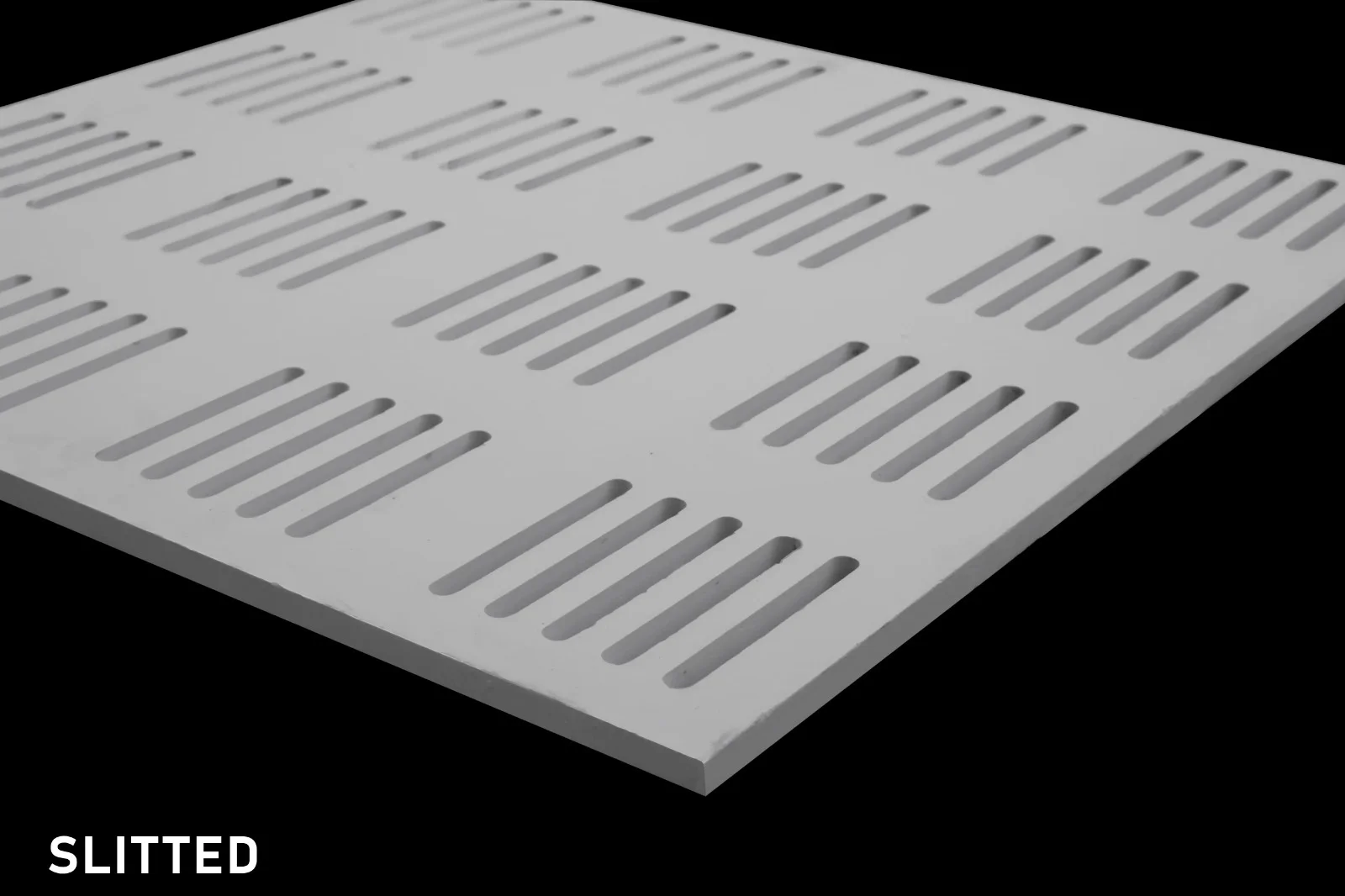

Slitted Acoustical Ceiling Tile

Commonly used in airports, features slender slits that enhance both design and acoustic performance. Its contemporary look adds sophistication while reducing noise, making it ideal for noise-sensitive environments.

drag

Slitted Acoustical Ceiling Tile Manufacturer, Supplier & Wholesaler in Gujarat, India

Key Features

BUILD QUALITY

Superior built quality with long-lasting life
Aesthetic, wide & versatile designs
Easy & economical installation
Bend - proof panels
Paperless & fully sustainable
Highly moisture & fire resistant
Customized creations
Free from termite & vermin

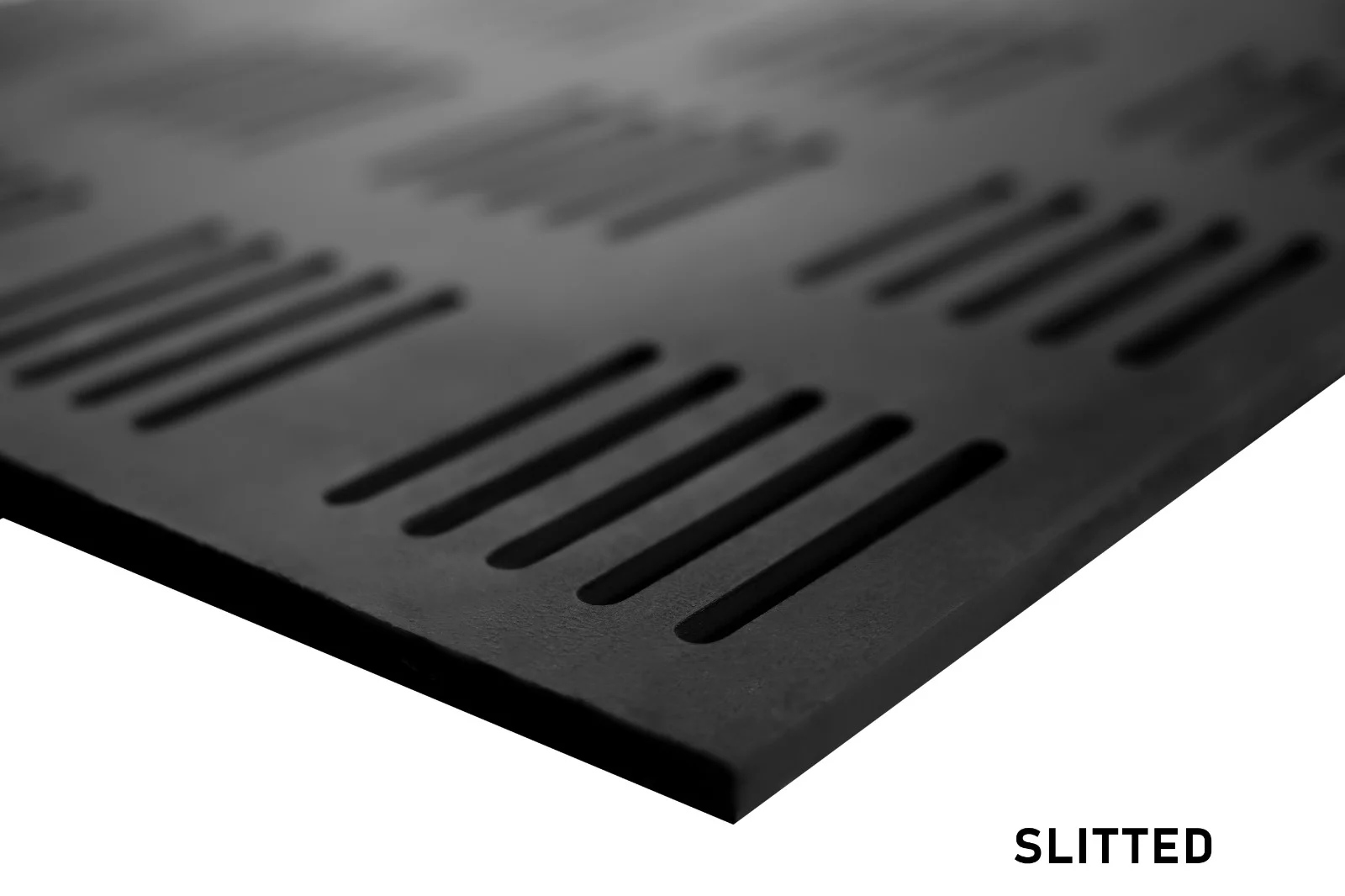

Available in Z-black color

T-grid & joint less installation systems
Ceilling & wall installation
Modified curved panels
Reinforced with pre-stressed glass fiber
Boot time crack-free drop tested
Exposed gypsum surface
Class 0' fire resistant

SUSTAINABLE PRODUCT

Made of gypsum & glass fiber
No use of paper
Sun-dried panels
Safe material
100% recyclable & incombustible
Enhanced indoor climate conditionfa

Description

Adaptable Installation Methods: T-Grid and Seamless Screw Fixing for Slitted Acoustical Ceiling

The Slitted acoustical ceiling offers flexibility in installation, accommodating both the traditional T-Grid method and the innovative seamless screw fixing technique.

This adaptability ensures a seamless fit for various installation preferences.

The T-Grid method provides a classic approach, while seamless screw fixing brings modern efficiency to the installation process.

Airport Aesthetics: Slitted Acoustical Ceiling's Sleek Design and Noise Reduction

Favored for its sleek design and impressive acoustic performance, the Slitted acoustical ceiling is a common sight in airports.

Characterized by evenly spaced, slender slits, this contemporary design not only adds an element of sophistication but also contributes to noise reduction.

The design's inherent properties make it a well-suited choice for noise-sensitive environments such as airports.

Elevated Indoor Atmosphere: GRG Material and Elegance of Slitted Acoustical Ceiling

Crafted from GRG (Glassfiber Reinforced Gypsum) material, the Slitted acoustical ceiling not only boasts a sophisticated design but also enhances the indoor atmosphere.

Beyond its visual appeal, the ceiling solution is adept at reducing noise levels and echoes, creating a more comfortable and serene ambiance.

With its seamless integration and elegant design, the Slitted ceiling offers both functionality and aesthetic charm.

Note:

The provided paragraphs have been tailored to include the design name "Slitted," while also adhering to your SEO requirements by incorporating relevant keywords.

The balance between keyword inclusion and readability is crucial for effective SEO content.

Installation Video

Specification

T-Grid

Main-T : 15/24 x 32 mm

Cross-T : 15/24 x 26 mm

Size	595 X 595 mm (+/- 3 mm)
Thickness	12 mm (+/- 0.5 mm)
Weight	Indicative tile weight: 8.3 to 8.5 kg/m2
Surface	Standard Brilliant White
Air Quality Index	Indoor value: 10 days Particle emission: low (< 0.75 mg)
Cleaning	Dust is removed using a dry duster or vacuum cleaner. Marks can be removed with a damp cloth using normal cleaning practices and neutral cleaning solutions.
Moisture Conditions	The product is designed to perform under normal conditions of Use. Tested at 99% RH and 27°C. The product can withstand ambient temperatures of up to 55°C.
Impact Strength	As per IS 13360 part 5/ sec 5 obtained result of 11.90 min against the requirement of 10 Minutes.

Seamless

Intermediate : 45 mm

Ceiling Section : 50 mm

Wall Angle : 24 x 24 mm

Fire Class	CLASS-0 (The time taken for 10% loss in mass was observed 32 Minutes)
Robustness	Made of robust, glass fibre reinforced material with excellent pressure resistance. Under normal conditions of use, the product properties are preserved and there is no decomposition of material over time.
Anti-Bacterial	The product is designed to reduce 99.98% Microbial population (ILAC-MRA)
Water Absorption	The product is designed to absorb only 28% of water against the requirement of 50% Maximum as per IS 2095 Part 1.
Jolting Strength Test	The product does not show crack or chipping off from the surface before 500 cycles.

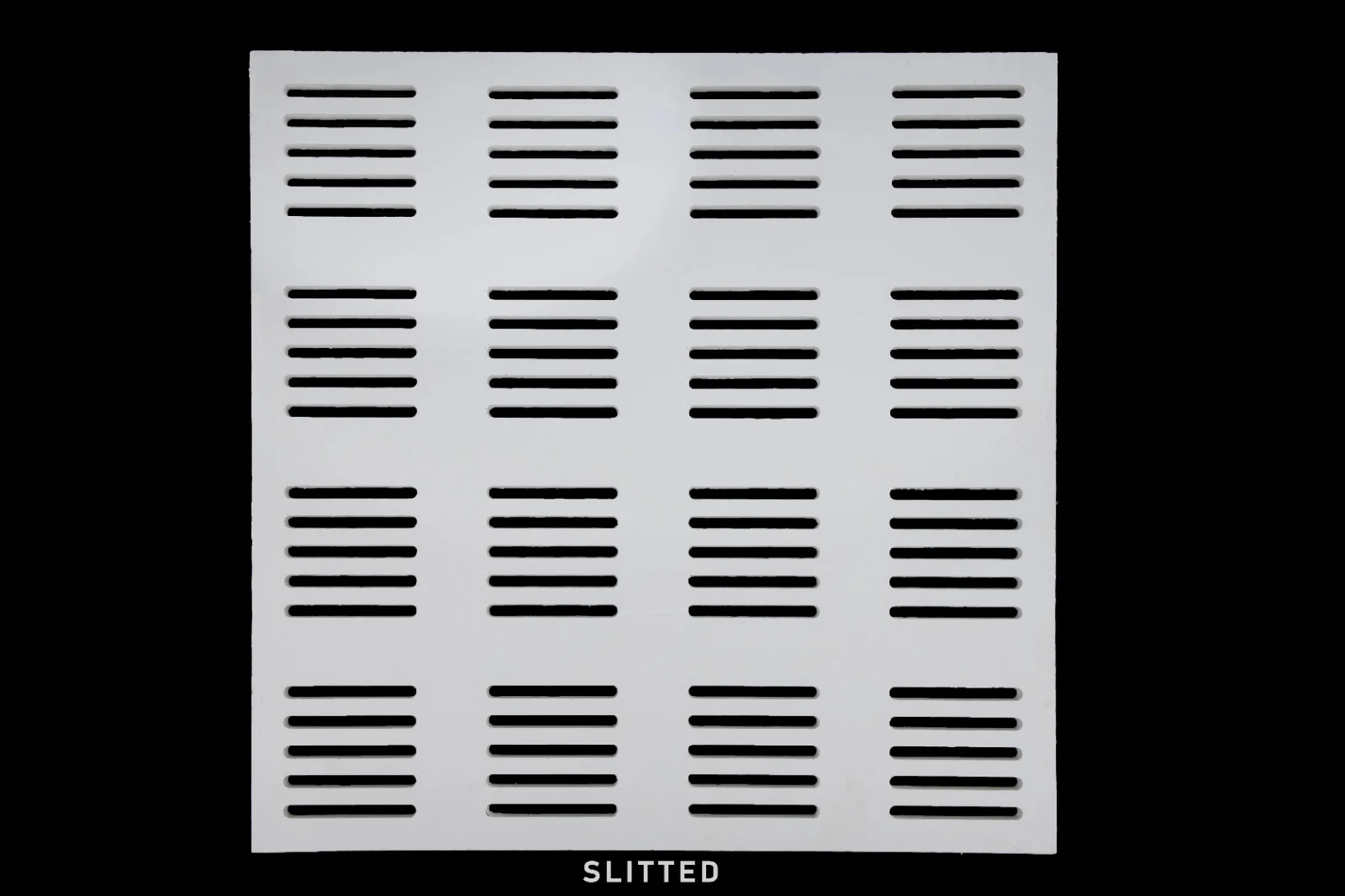

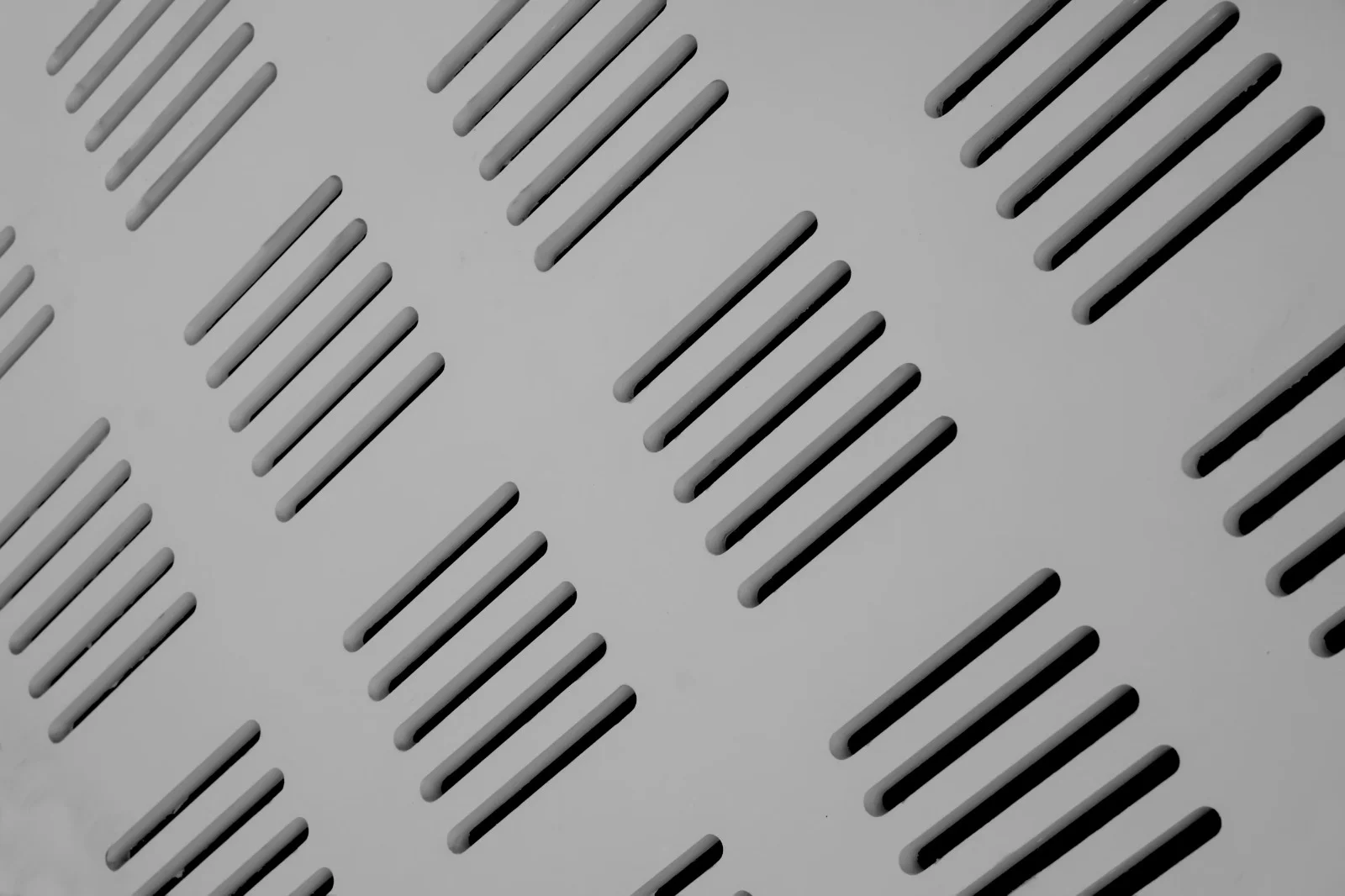

Perforation Details	Capsule shape slitted : 12 mm broad 80 Slits (22.11% perforation)
N.R.C. Value	0.75
Certificates	IS 2095 PART-3 (2022) TESTS Declaration of Conformity By Bureau Of Indian Standards (CM/L No. 7100049497)

Acoustics

Range (Hz)	125	250	500	1000	2000	4000	NRC
Slitted (α_s)	0.52	0.69	0.84	0.79	0.63	0.58	0.75

All India First License

APPROVED BY

Documents

Product Brochure

Test Reports

Installation Guidlines

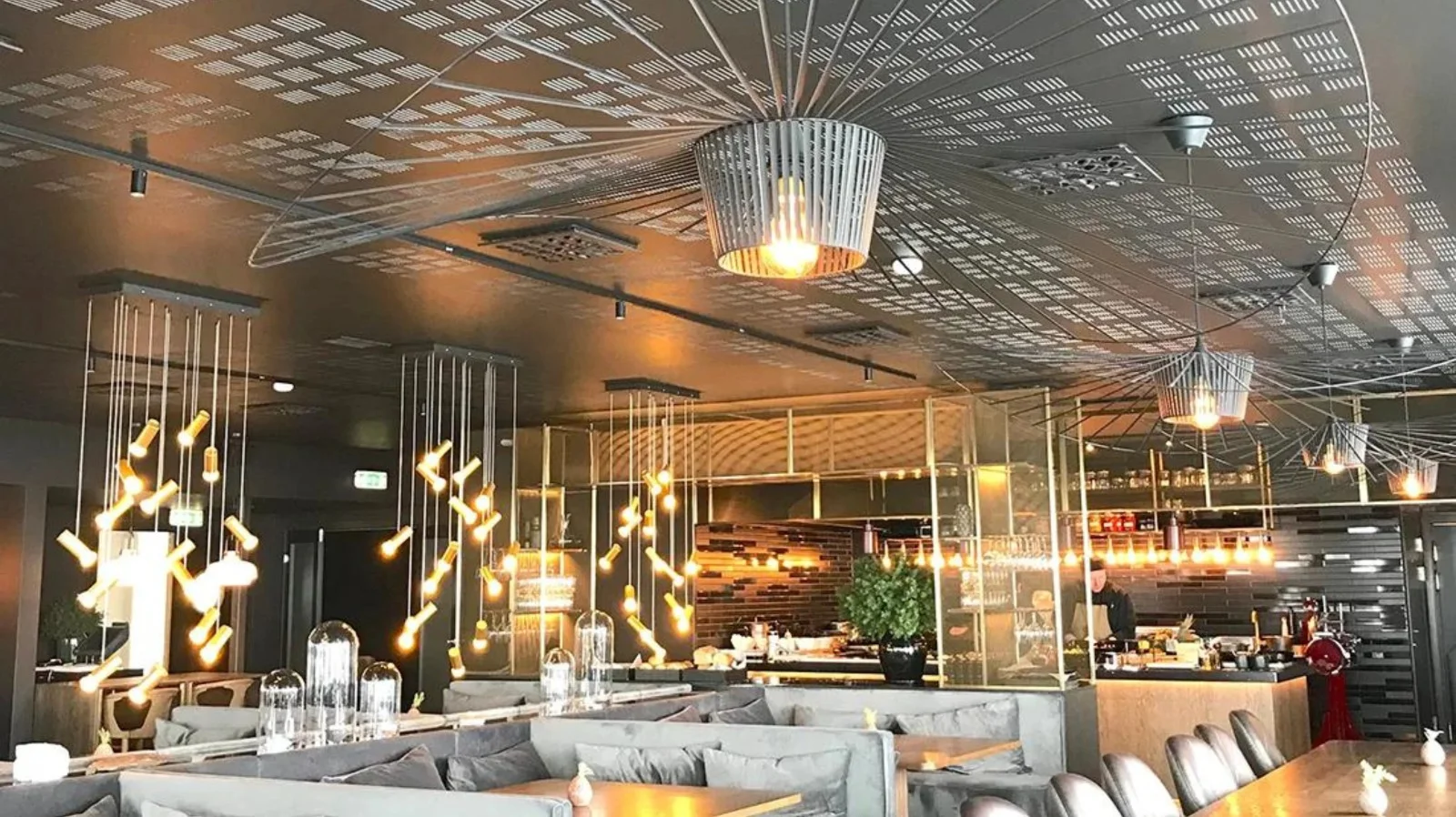

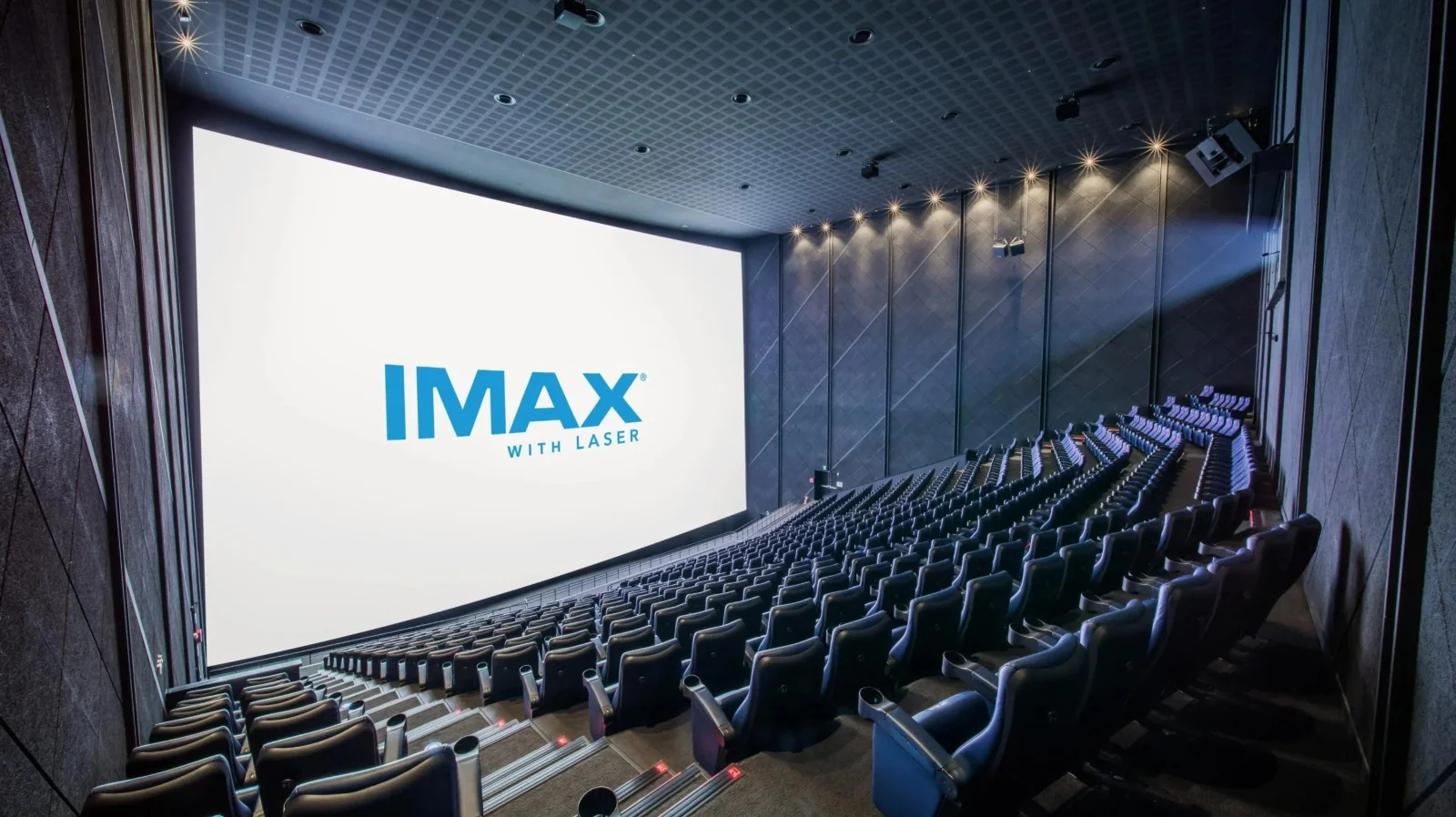

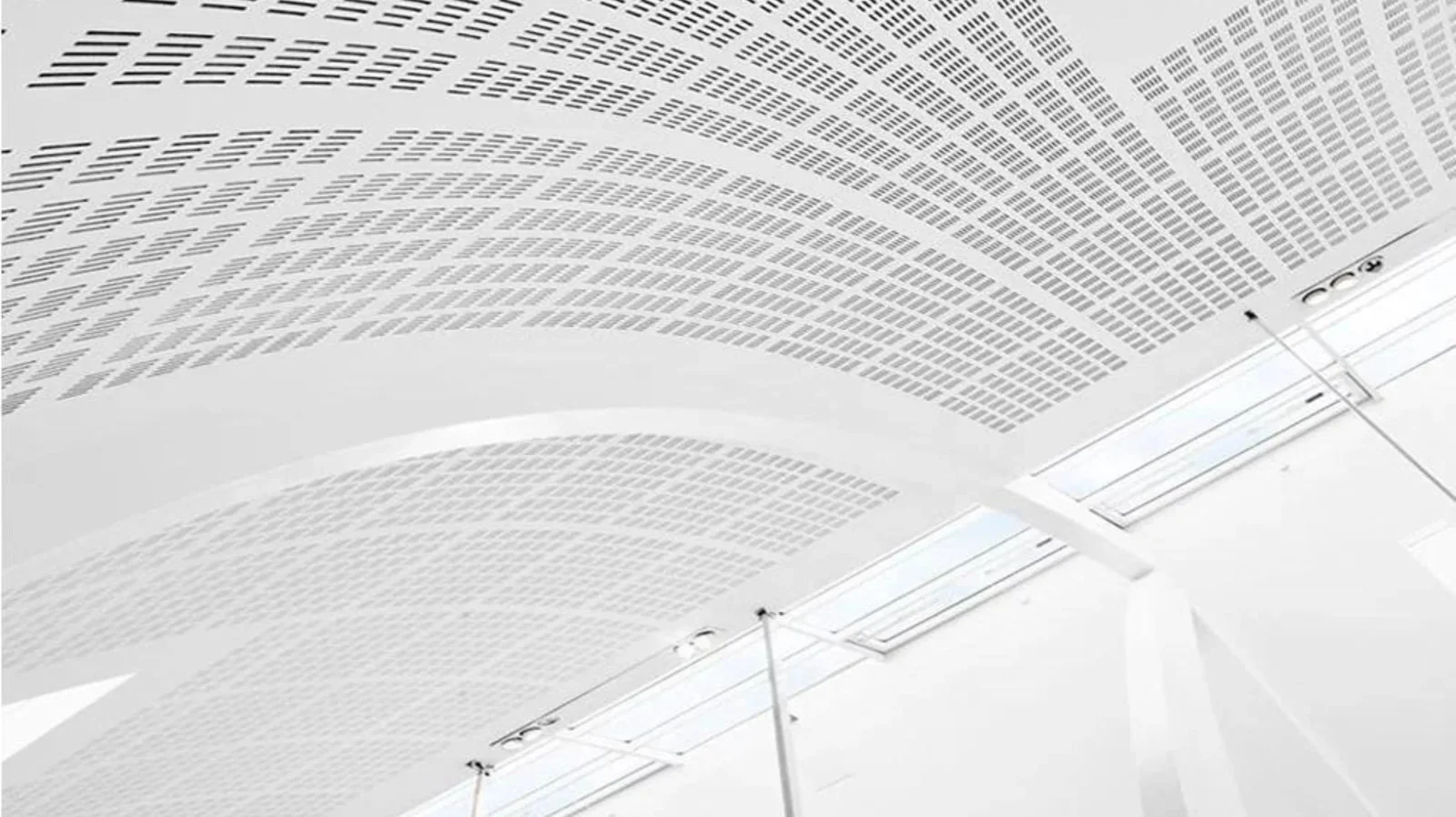

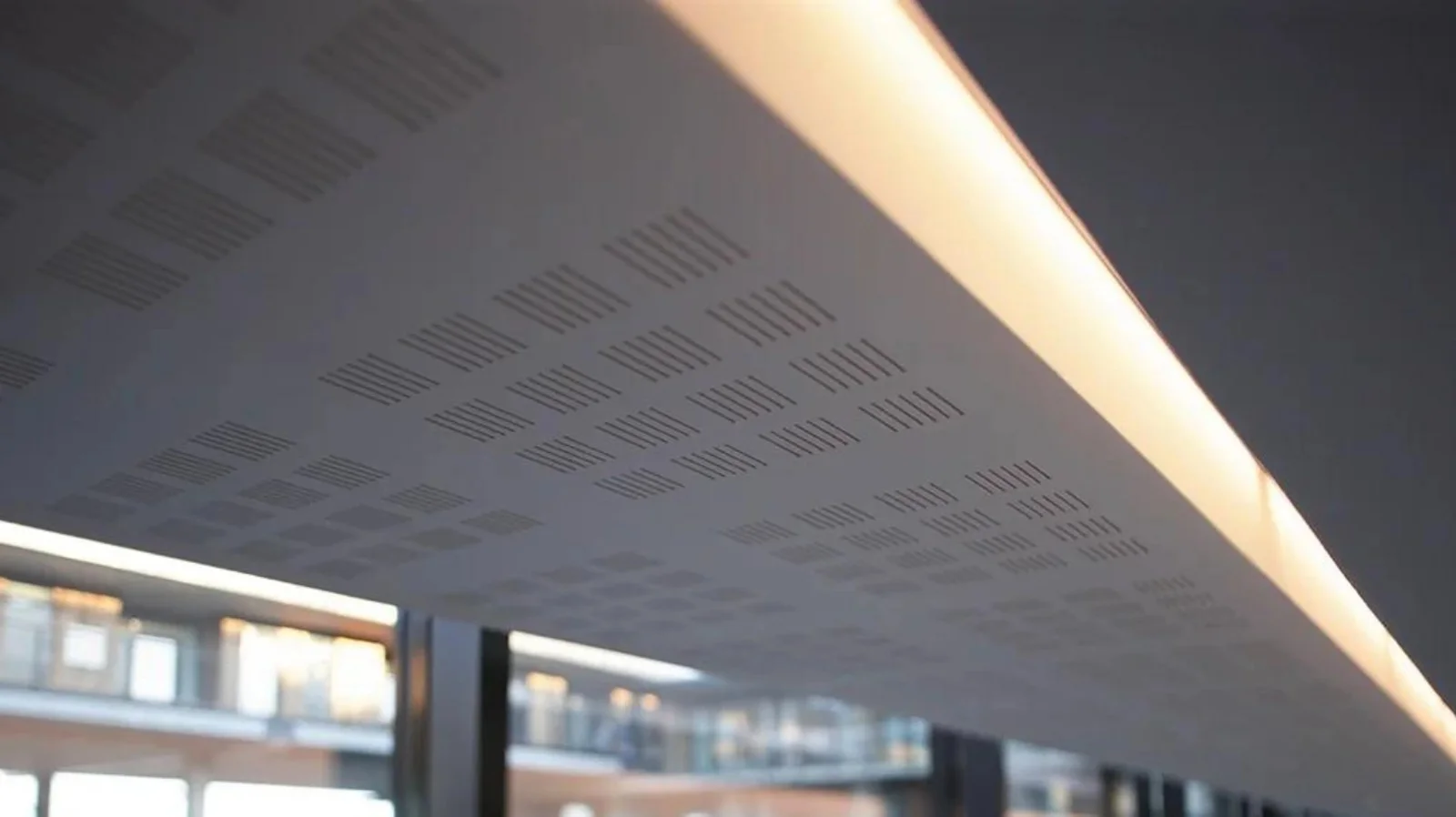

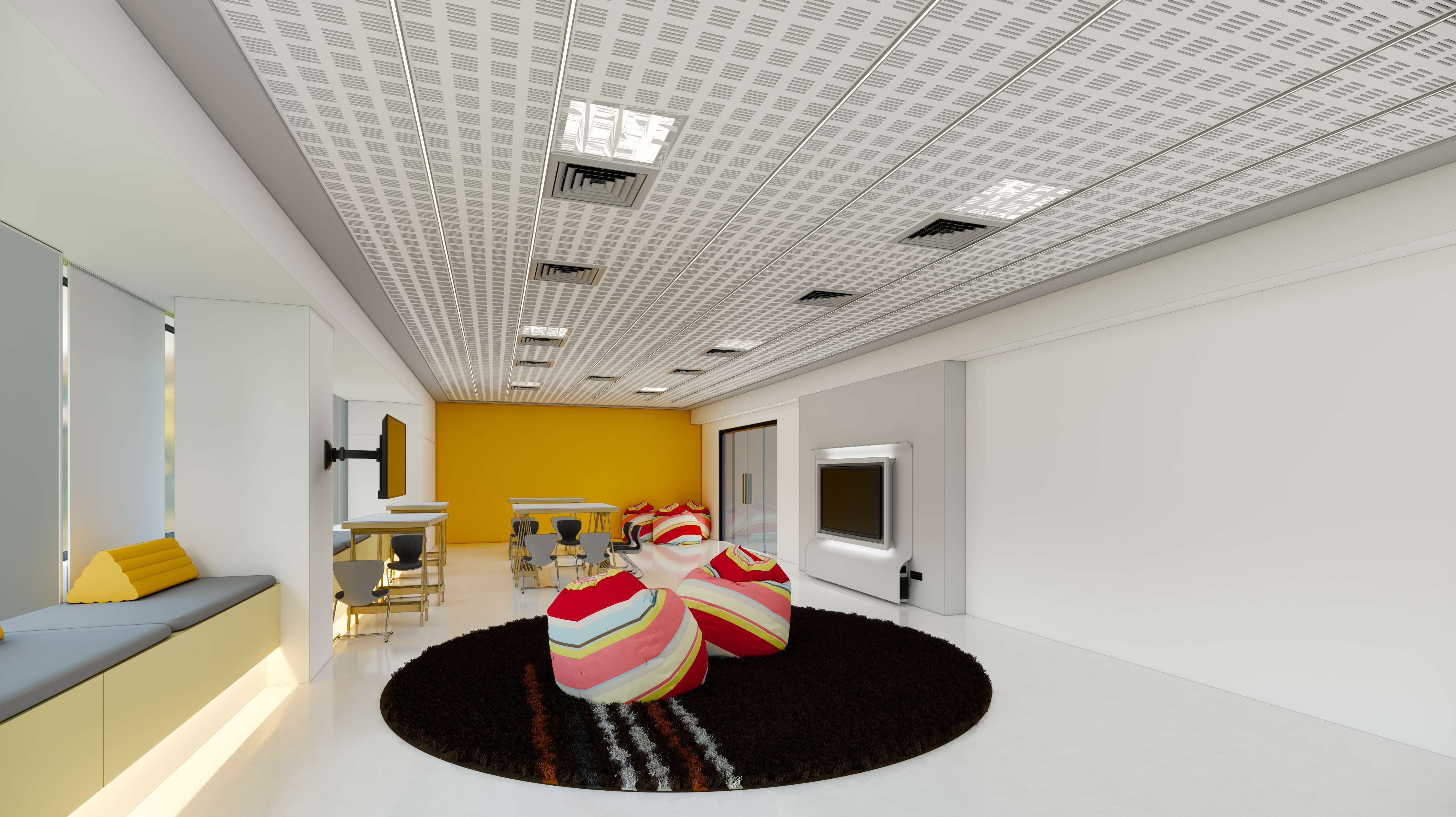

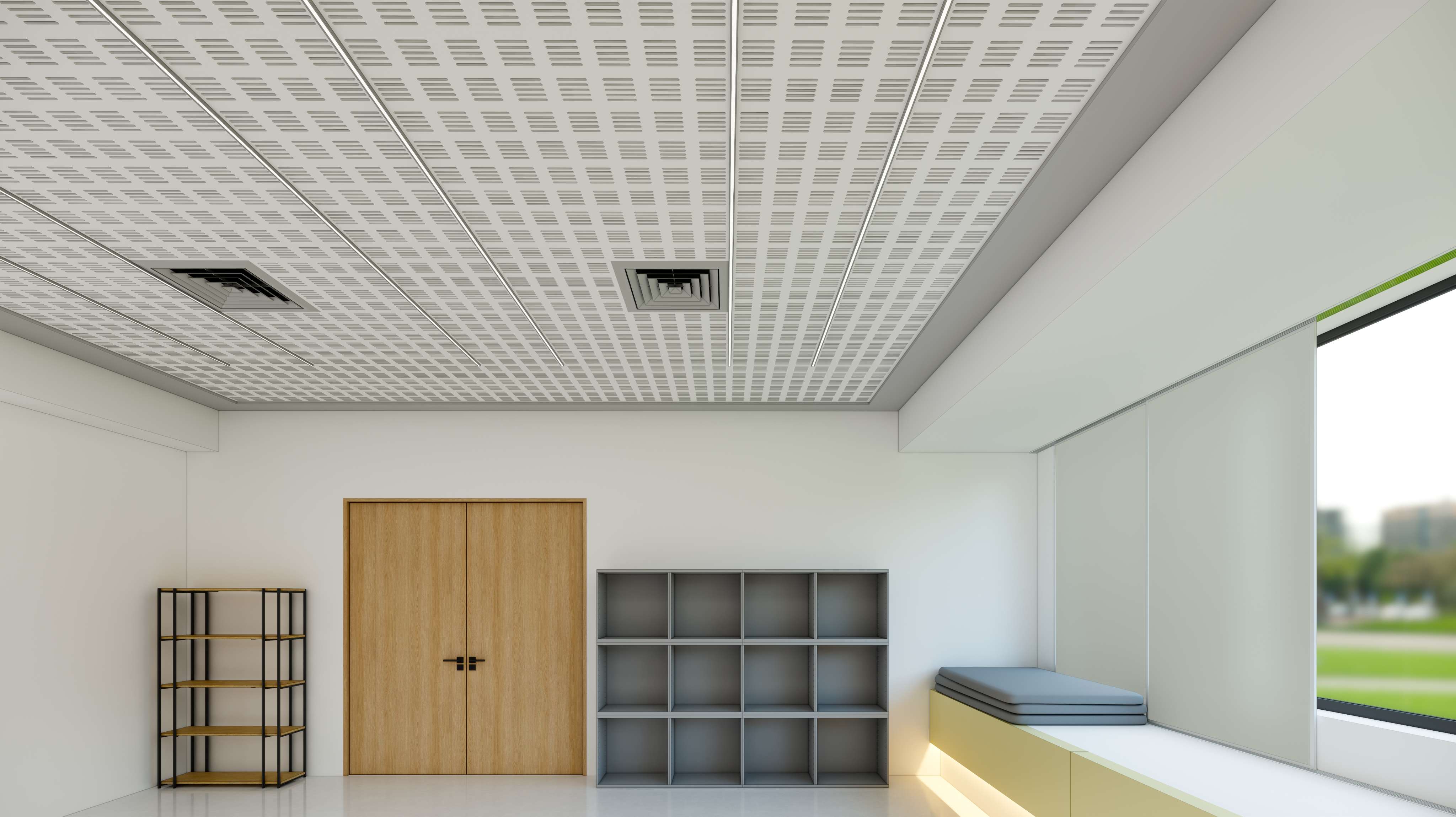

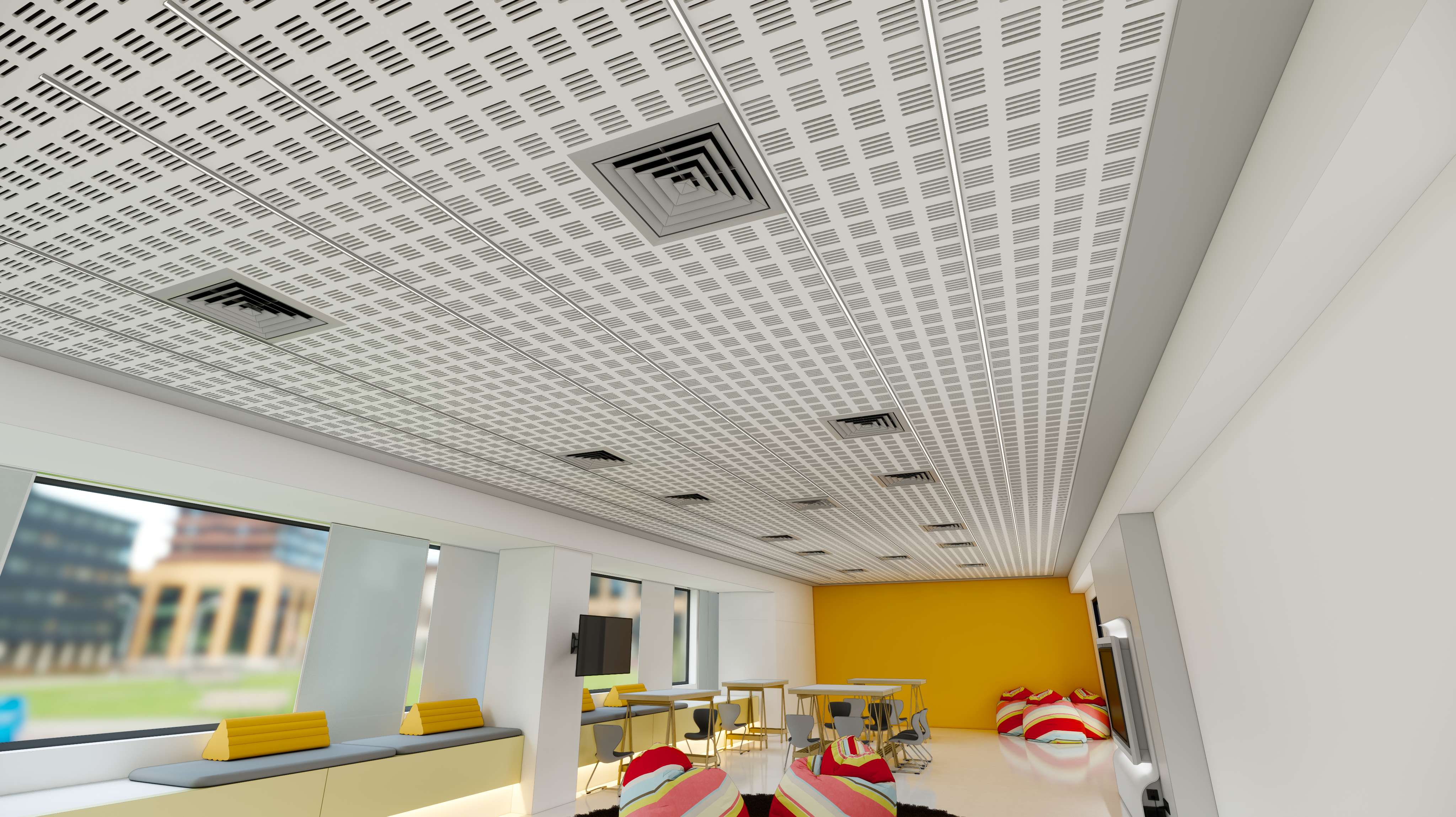

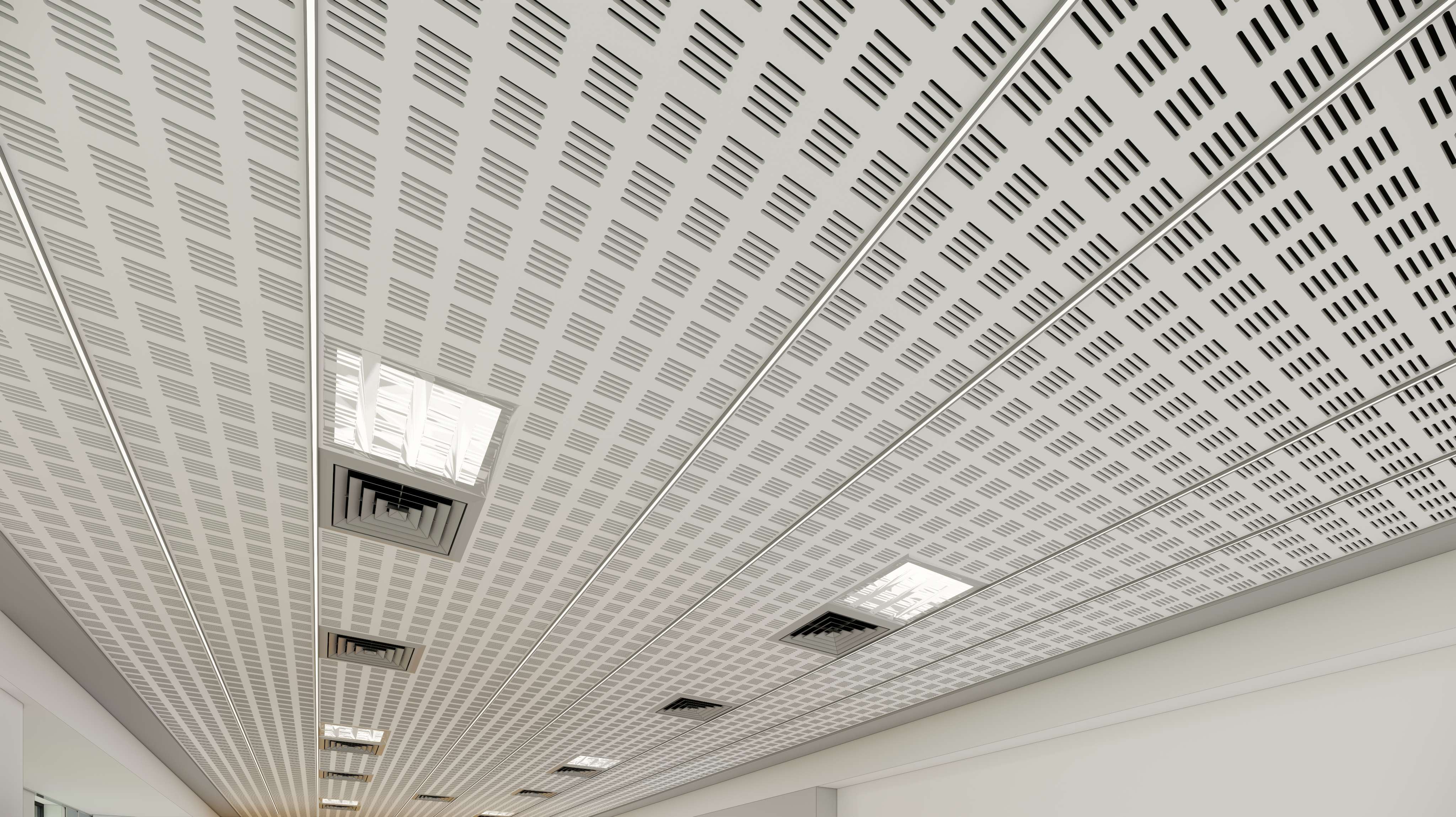

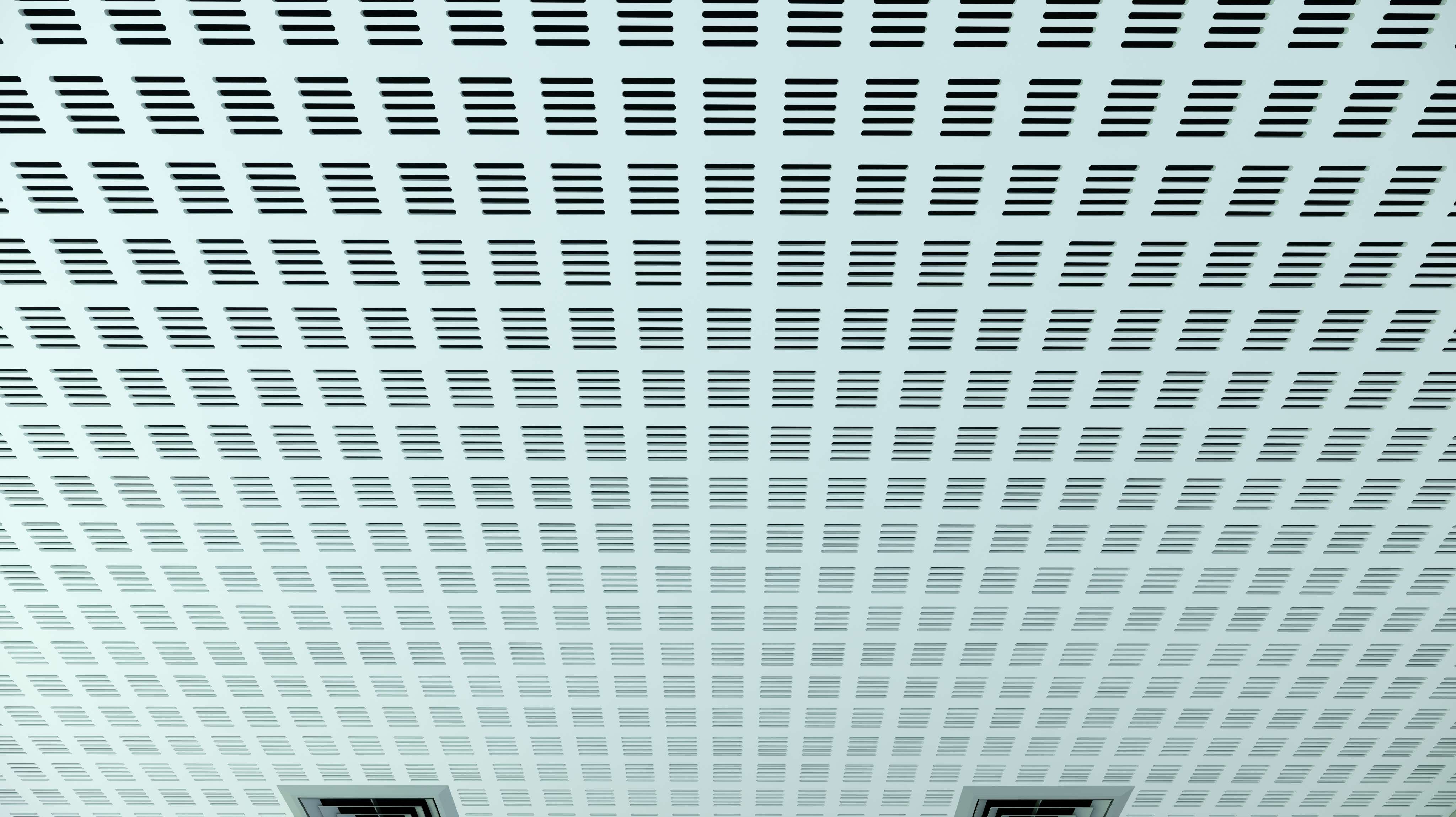

Reference projects with Slitted

Slitted reveals its unique charm, an elegant twist of adaptability. It finds its place in homes, schools, and kindergartens, seamlessly merging with conventional dry-lining, a slender wonder of design.
