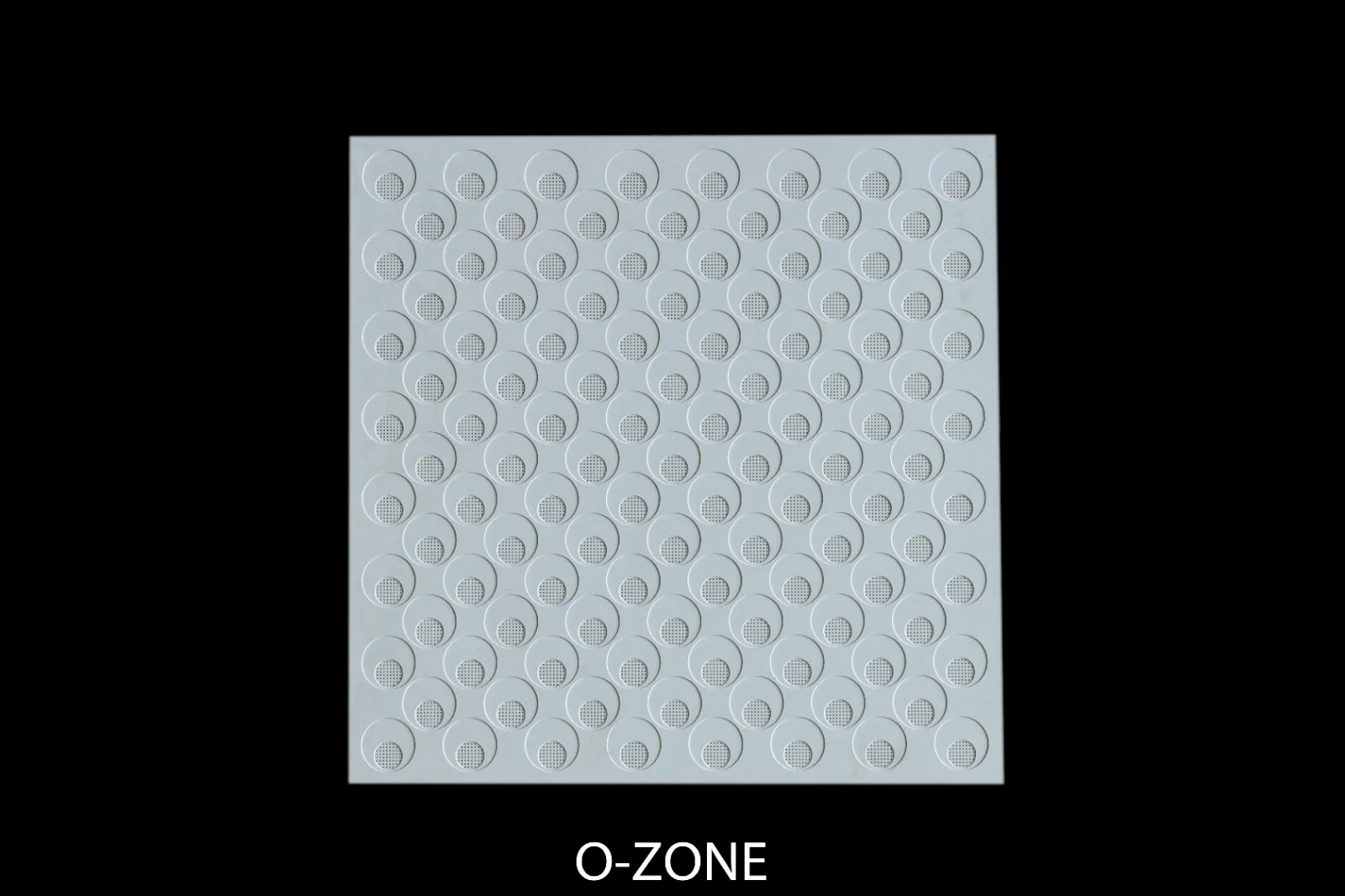

O-ZONE

This acoustic ceiling lining provides a refined, consistent look with its pre-painted finish and hidden fixings, making it an ideal choice for a quick and easy installation without additional painting or filling.

drag

ALL INDIA FIRST LICENSE

APPROVED BY

Key Features

BUILD QUALITY

30+ Years product life
Aesthetic semi-perforated circular embossed pattern
Wide design range & versatile aesthetics
Bend-proof panels with high structural rigidity
100% Paperless & fully sustainable
High moisture resistance (RH 99% tested)
100% Fireproof (Class 0 certified)
Free from termite & vermin
Standard Brilliant White finish (pre-painted)

FITTING & PERFORMANCE

T-Grid & seamless screw-fix installation systems
Ceiling & wall installation versatility
Calibrated circular perforation for 0.62 NRC
Reinforced with pre-stressed glass fiber (GRG)
350 cycles crack-free jolting strength tested
Hidden fixings with no extra painting or filling
Only 28% water absorption (IS 2095 Part 1)
Modified curved panels available

GREEN & SUSTAINABLE

100% Green product (gypsum & glass fiber)
Anti-bacterial: 99.98% microbial reduction (ILAC-MRA)
Improved indoor air quality (particle emission < 0.75 mg)
100% Recyclable & incombustible
Zero VOC & safe material
Sun-dried eco-friendly panels
Enhanced indoor climate conditions

Description

Versatile Installations: T-Grid and Seamless Screw Fixing for O-Zone Acoustical Ceiling

The O-Zone acoustical ceiling offers versatile installation options, including the reliable T-Grid system and contemporary seamless screw fixing.

Architects and interior designers can select the preferred method based on architectural requirements. While T-Grid follows a proven, demountable system, seamless screw fixing provides a flawless, continuous monolithic appearance.

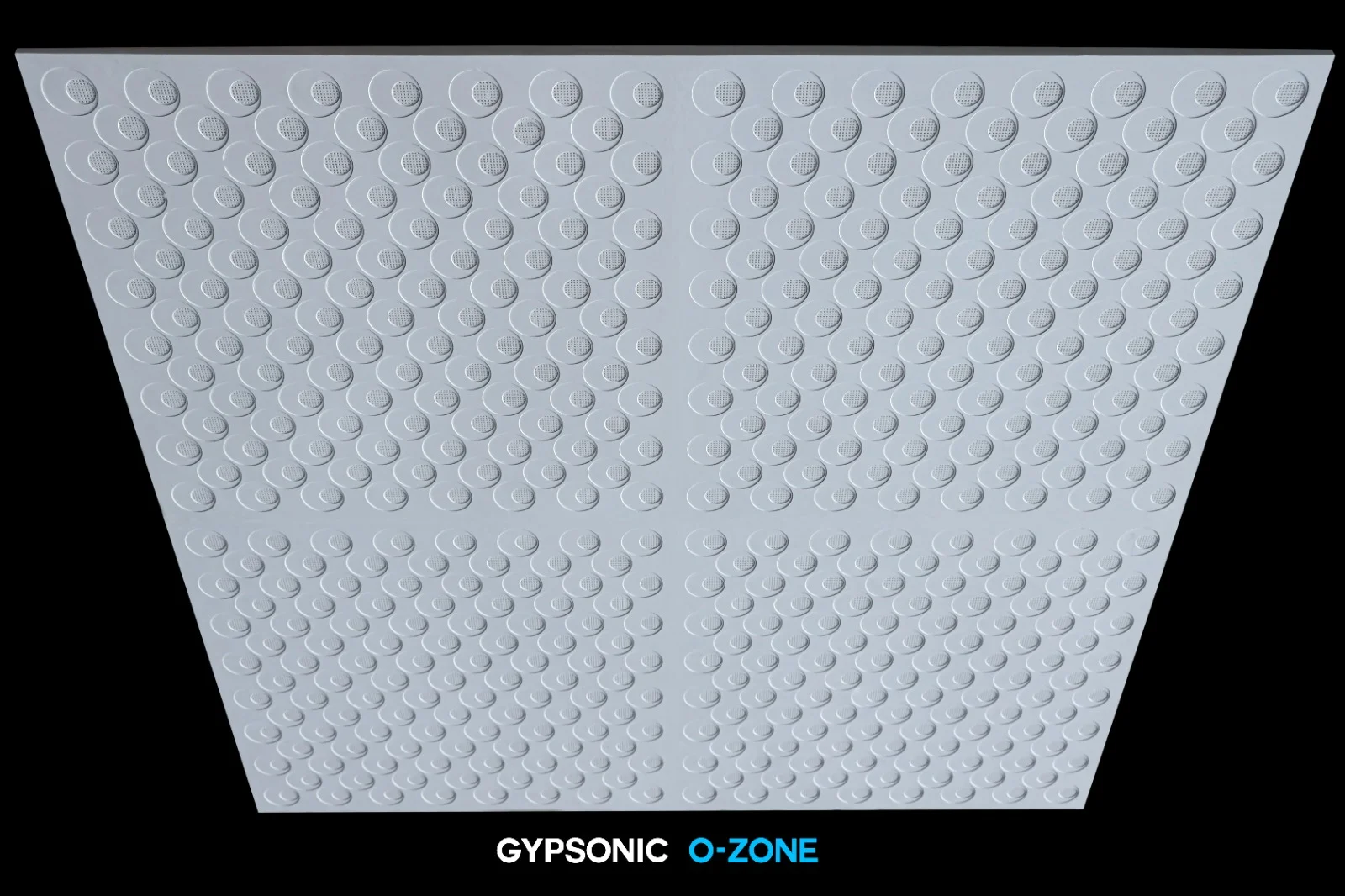

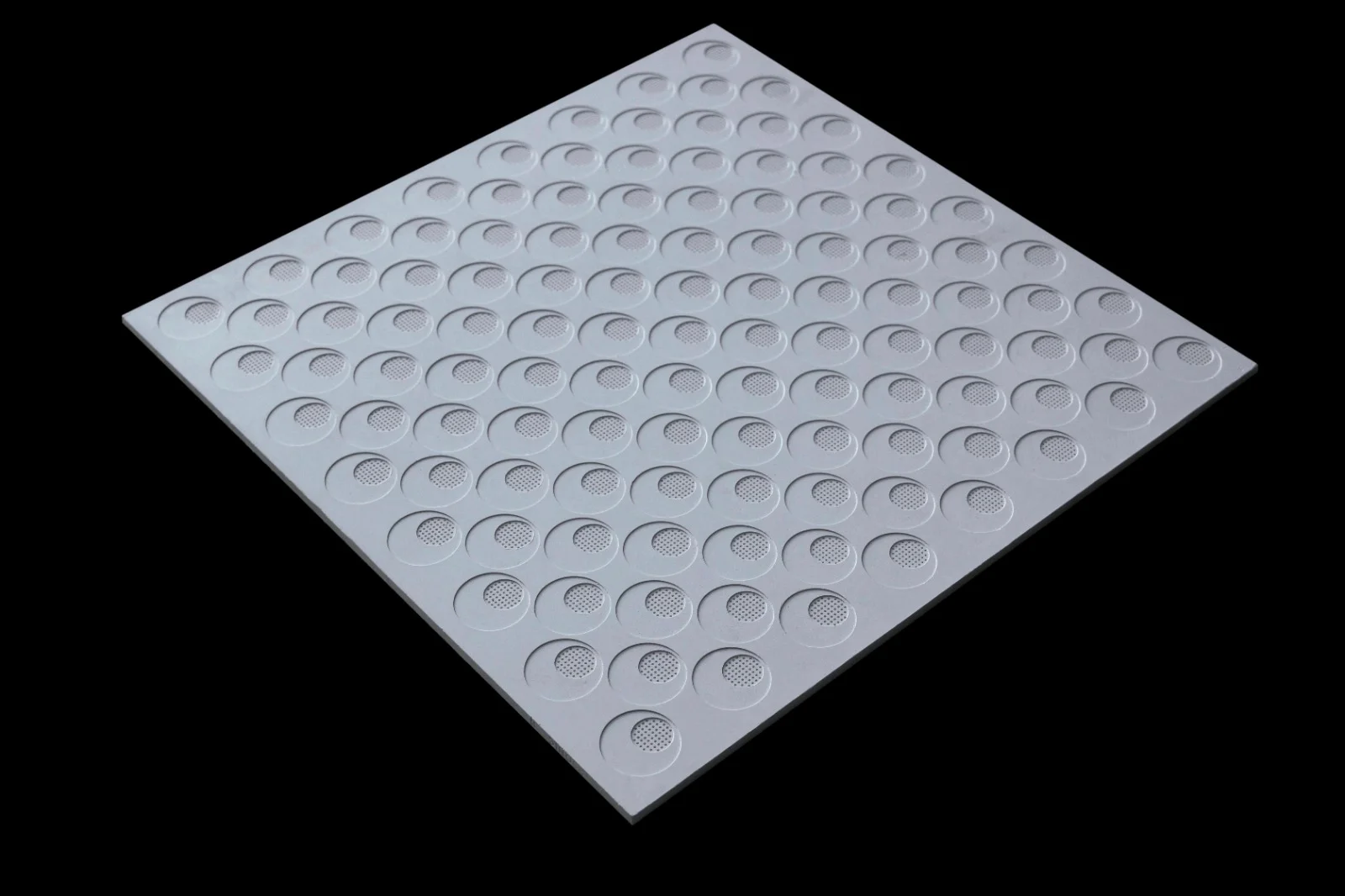

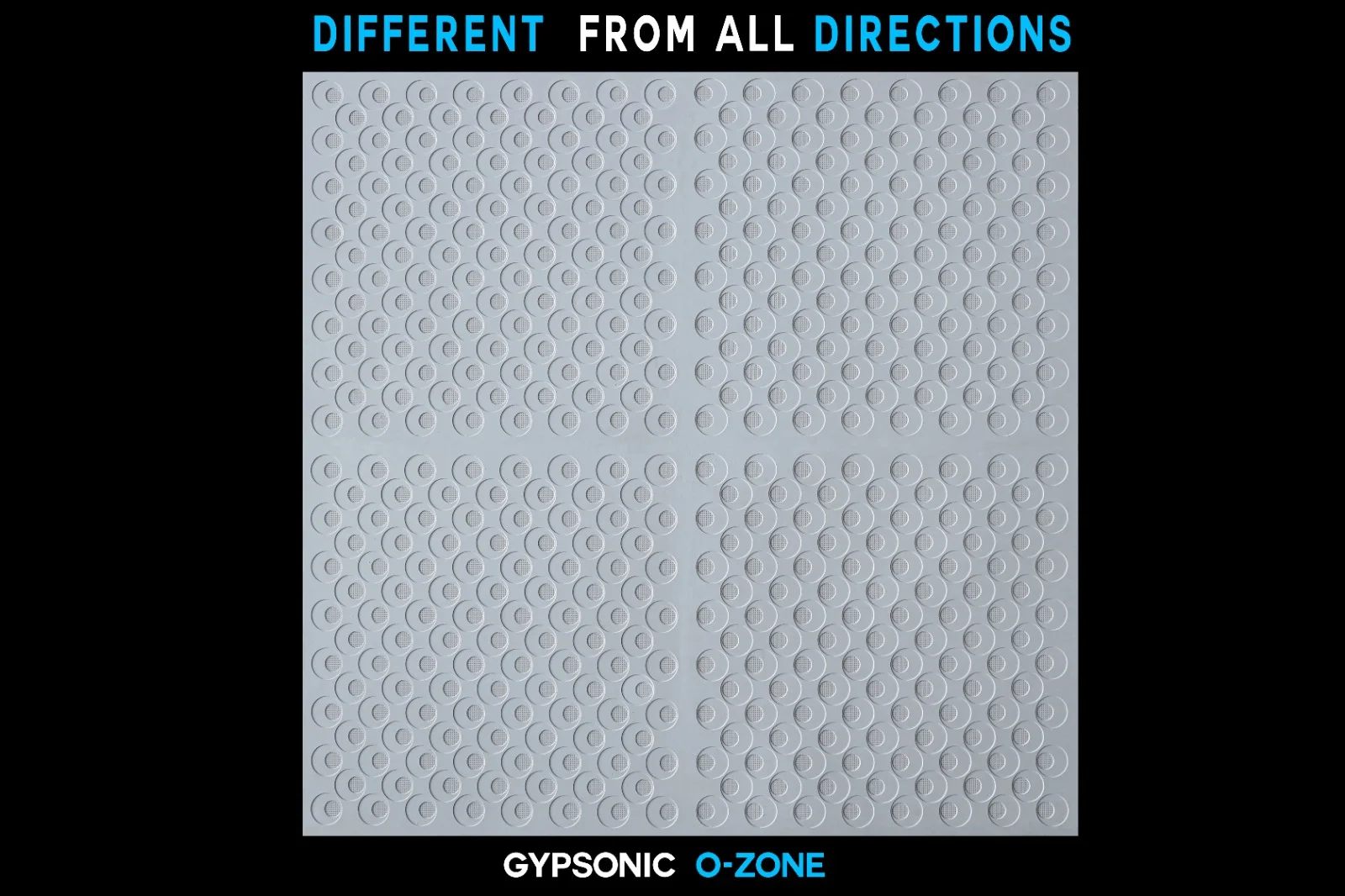

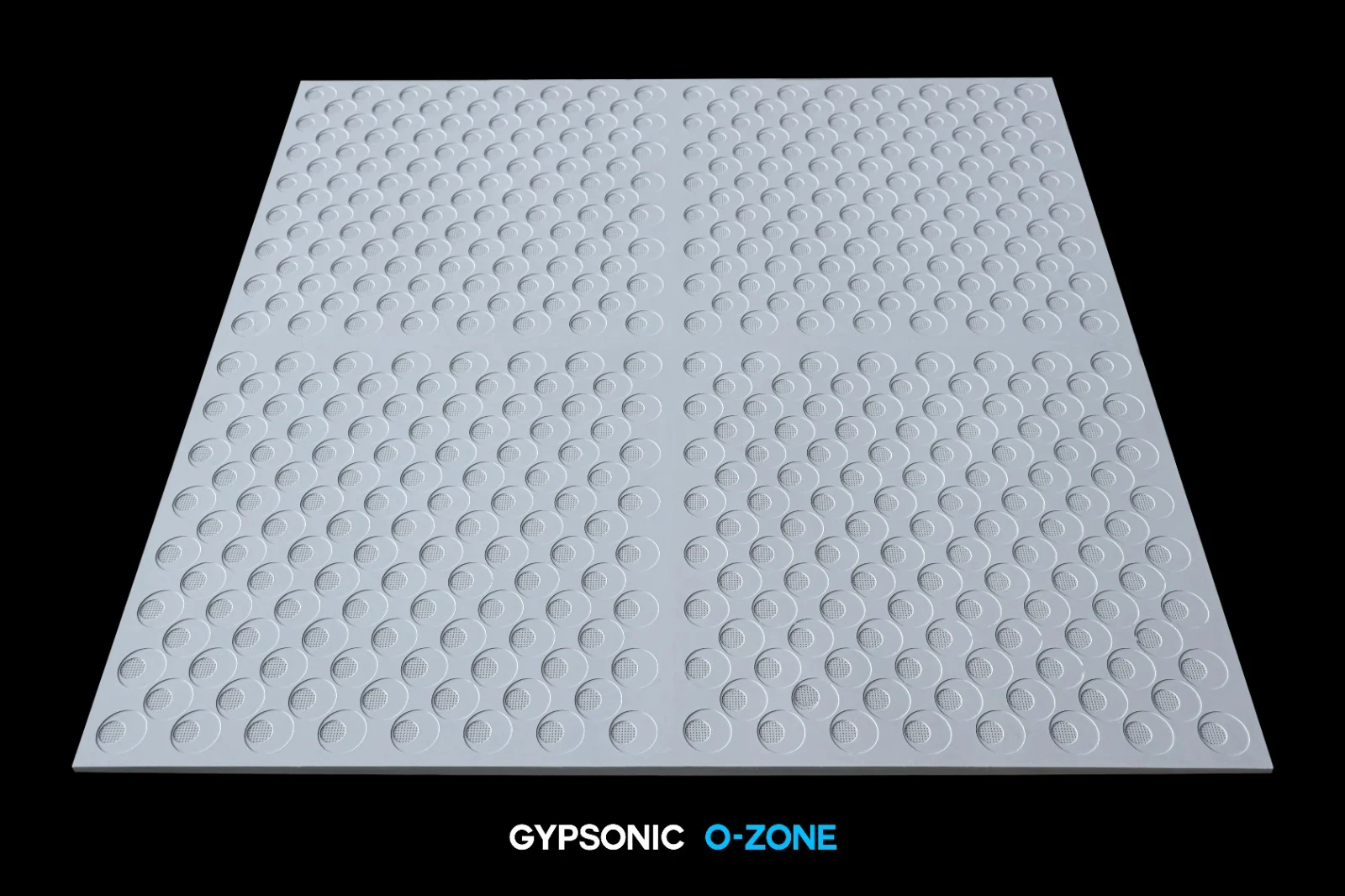

Distinctive Aesthetics: Semi-Perforated Circular Embossed Pattern of O-Zone

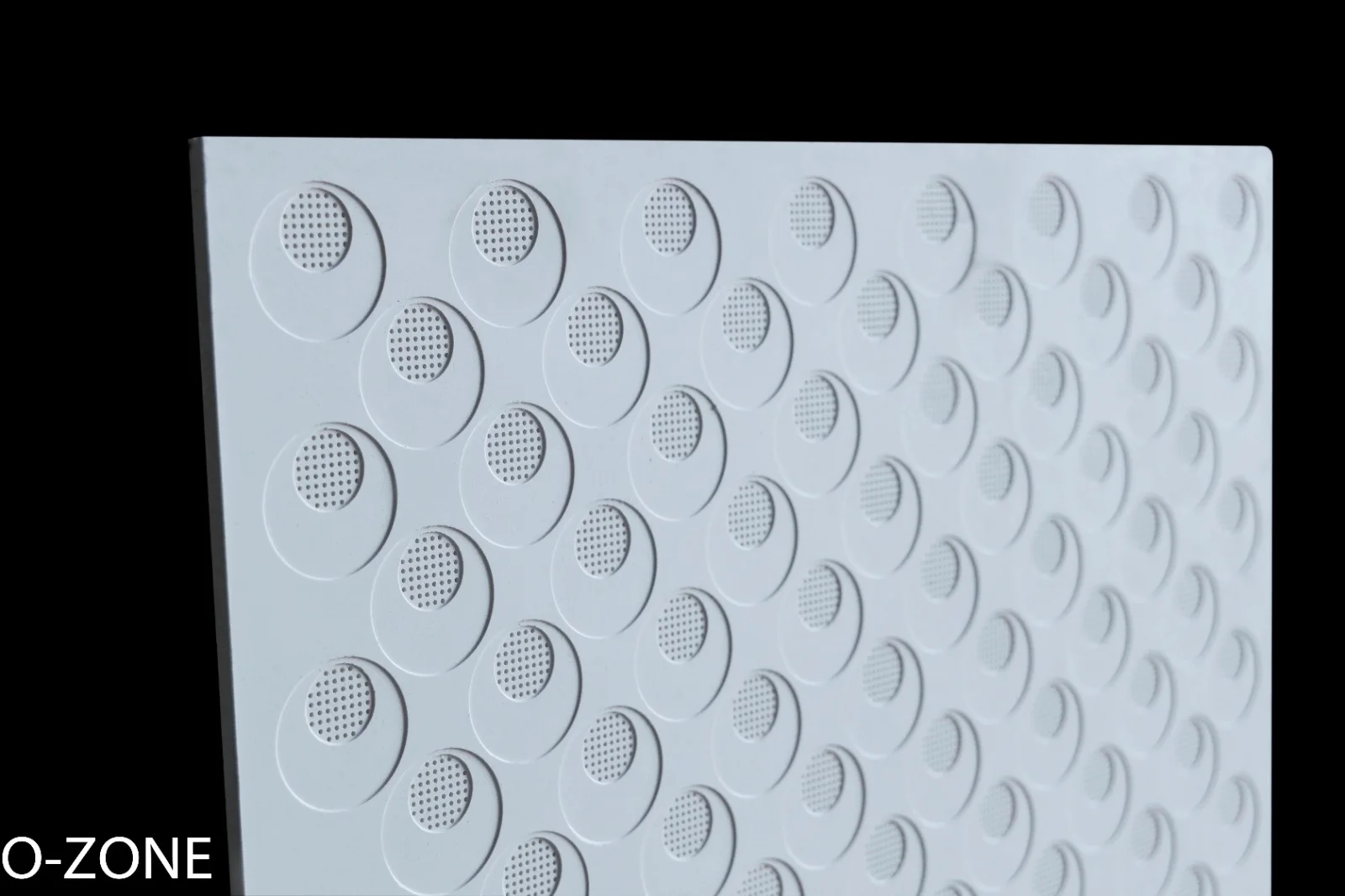

Exhibiting an elegant semi-perforated design, O-Zone features an artful circular embossed pattern that brings subtle depth, texture, and visual interest to modern interiors.

This signature pattern offers a refined architectural balance between solid reflective areas and acoustic absorption zones, making it an inspired choice for designers.

Its factory pre-painted brilliant white finish requires no additional painting or filling, enabling rapid and pristine installations.

Balanced Acoustic Performance: NRC 0.62 Sound Absorption

Engineered with acoustic felt backing and calibrated circular perforations, O-Zone achieves an impressive 0.62 NRC rating.

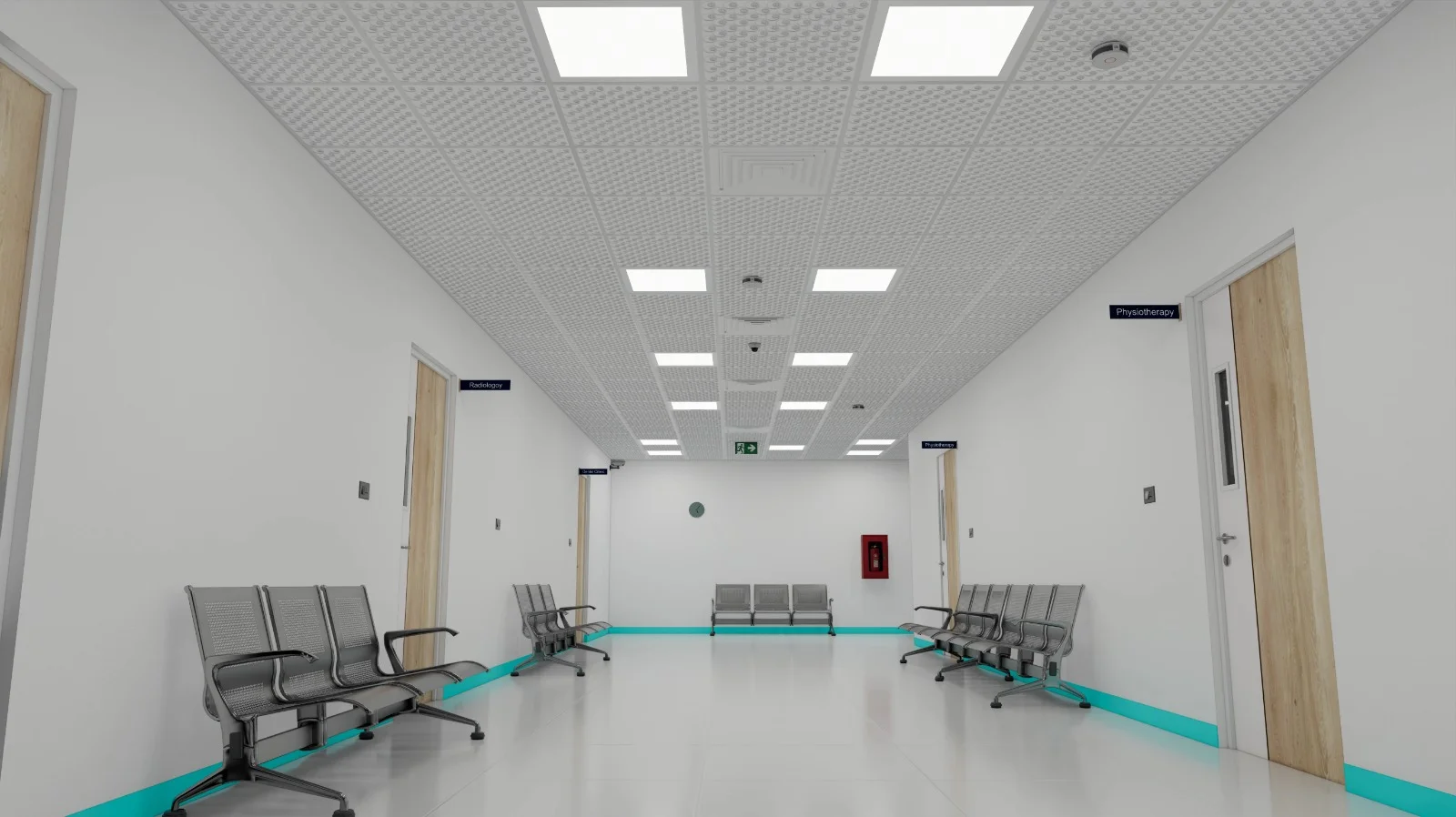

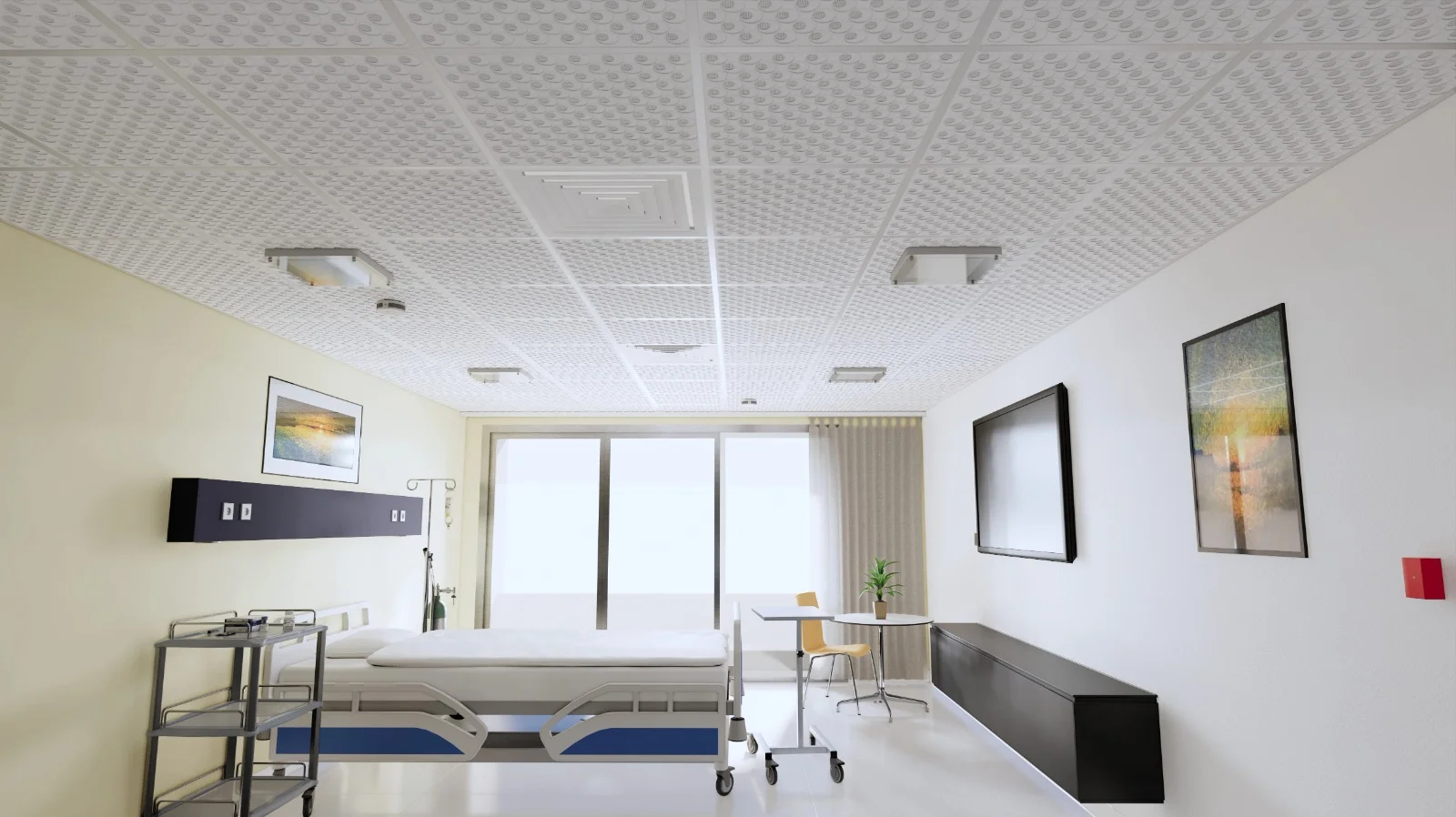

This ensures balanced reverberation control and speech clarity, ideal for educational institutions, corporate offices, healthcare facilities, and conference rooms.

With O-Zone, create calm, productive, and acoustically comfortable spaces designed to meet rigorous architectural performance standards.

Robust Resilience with GRG Material: Enduring Integrity

Crafted from premium GRG (Glassfiber Reinforced Gypsum), O-Zone acoustic ceiling tiles provide remarkable structural rigidity, dimensional stability, and bend-proof performance.

Certified for Class-0 fire rating and tested at 99% RH, the material resists moisture, sagging, termite infestation, and environmental degradation.

O-Zone is 100% recyclable, paperless, and promotes healthy indoor air quality with ultra-low particle emissions.

Effortless Integration: Architectural Flexibility with GRG Material

The inherent strength and versatility of GRG allows O-Zone tiles to integrate harmoniously into commercial, residential, and institutional environments.

Design professionals value O-Zone for its seamless integration with standard drywall systems, lighting, and air diffusers.

From contemporary corporate hubs to schools and hospitality venues, O-Zone delivers enduring quality, safety, and acoustic excellence.

Gypsonic – Leading GRG (Glass Reinforced Gypsum), false ceiling, and acoustic ceiling tiles manufacturers and suppliers in Surat, Ahmedabad, Vadodara, Rajkot, Mumbai, Pune, Aurangabad, Nagpur, Nashik, Jaipur, Jodhpur, Udaipur, Bhopal, Indore, Jabalpur, Gwalior, Ujjain, and across India.

Installation Video

Specification

T-Grid

Main-T : 15/24 x 32 mm

Cross-T : 15/24 x 26 mm

Size	595 X 595 mm (+/- 3 mm)
Thickness	10 mm (+/- 0.5 mm)
Weight	Indicative tile weight: 8.4 to 8.5 kg/m2
Surface	Standard Brilliant White
Air Quality Index	Indoor value: 10 days Particle emission: low (< 0.75 mg)
Cleaning	Dust is removed using a dry duster or vacuum cleaner. Marks can be removed with a damp cloth using normal cleaning practices and neutral cleaning solutions.
Moisture Conditions	The product is designed to perform under normal conditions of Use. Tested at 99% RH and 27°C. The product can withstand ambient temperatures of up to 55°C.
Impact Strength	As per IS 13360 part 5/ sec 5 obtained result of 11.90 min against the requirement of 10 Minutes.

Seamless

Intermediate : 45 mm

Ceiling Section : 50 mm

Wall Angle : 24 x 24 mm

Fire Class	CLASS-0 (The time taken for 10% loss in mass was observed 32 Minutes)
Robustness	Made of robust, glass fibre reinforced material with excellent pressure resistance. Under normal conditions of use, the product properties are preserved and there is no decomposition of material over time.
Anti-Bacterial	The product is designed to reduce 99.98% Microbial population (ILAC-MRA)
Water Absorption	The product is designed to absorb only 28% of water against the requirement of 50% Maximum as per IS 2095 Part 1.
Jolting Strength Test	The product does not show crack or chipping off from the surface before 350 cycles.
Perforation Details	Semi-Perforated Circular Embossed Pattern
N.R.C. Value	0.62
Certificates	IS 2095 PART-3 (2022) TESTS Declaration of Conformity By Bureau Of Indian Standards (CM/L No. 7100049497)

Acoustics

Range (Hz)	125	250	500	1000	2000	4000	NRC
O-Zone (α_s)	0.15	0.38	0.61	0.75	0.46	0.35	0.62

Documents

Product Brochure

Test Reports

Installation Guidlines

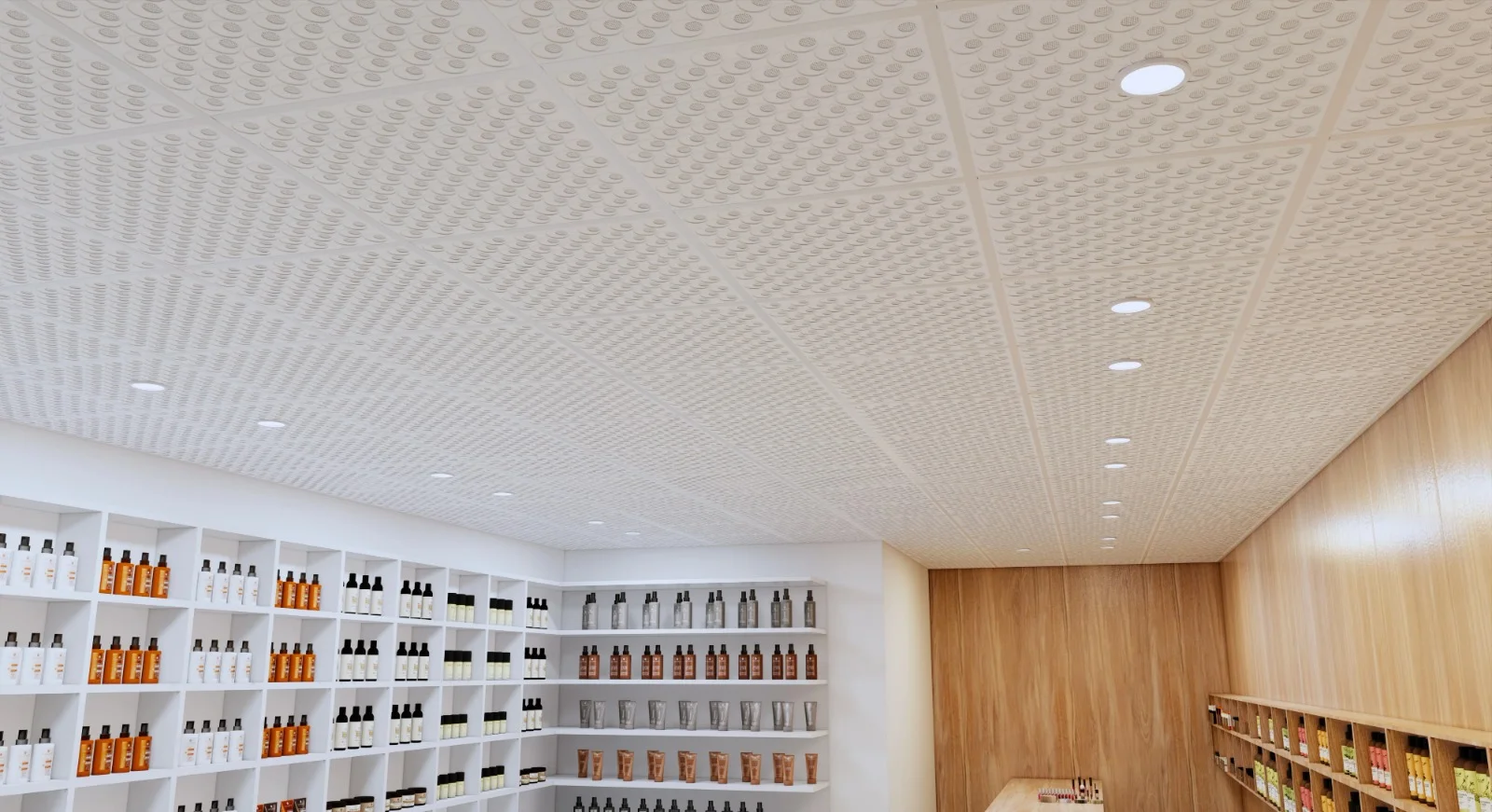

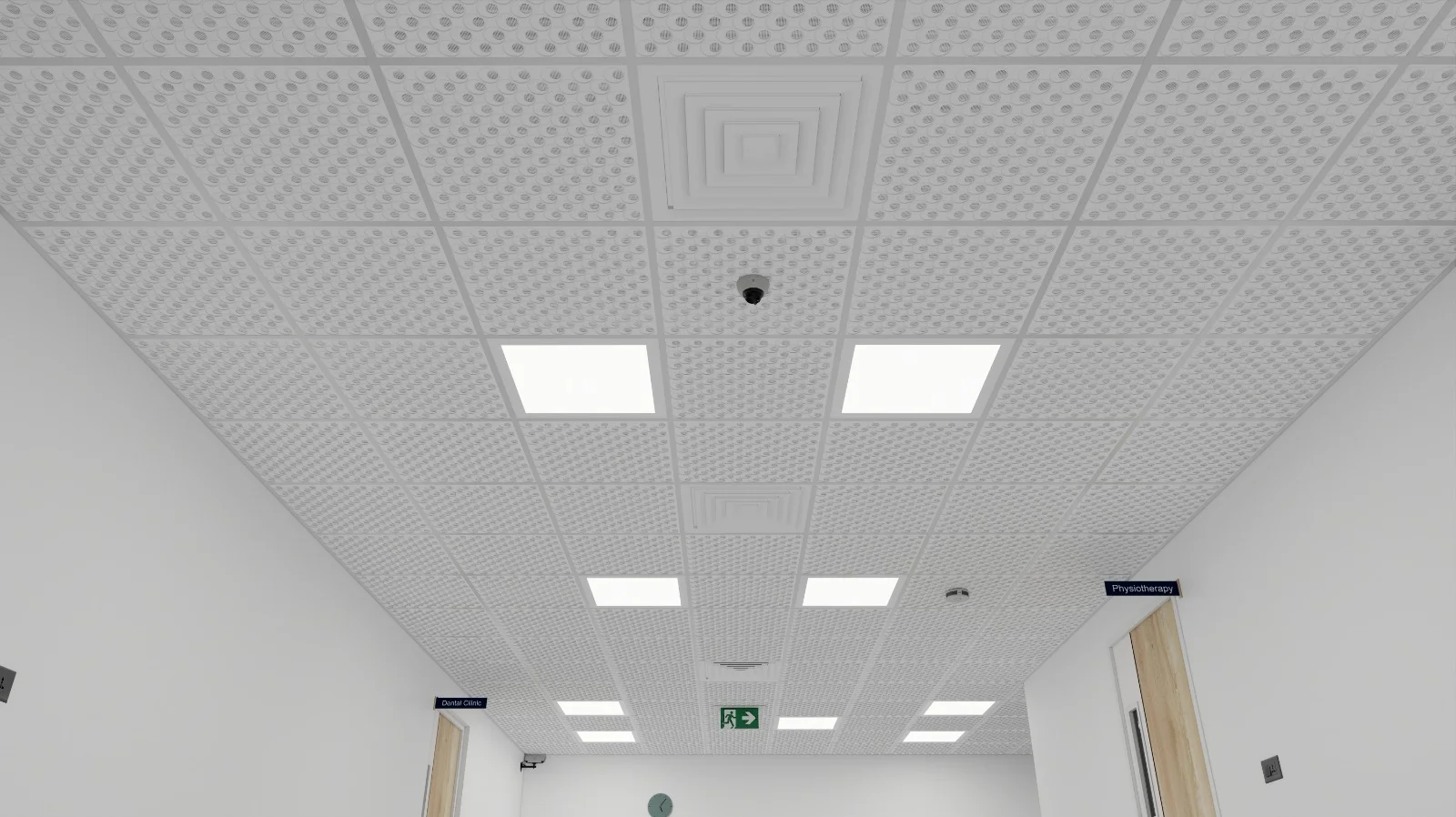

Reference projects with O-Zone

O-Zone breathes innovation, a realm of endless adaptability. It thrives in homes, schools, and kindergartens, blending seamlessly with standard dry-lining—a design sanctuary that defies boundaries.
