Microtone (Edge B+) Acoustical Ceiling Tiles

The scattered perforation layout maximizes noise reduction capabilities while adding a sophisticated and futuristic touch to interior spaces. Engineered with advanced perforation detailing, this ceiling system blends acoustic excellence, contemporary design, and functional performance seamlessly.

drag

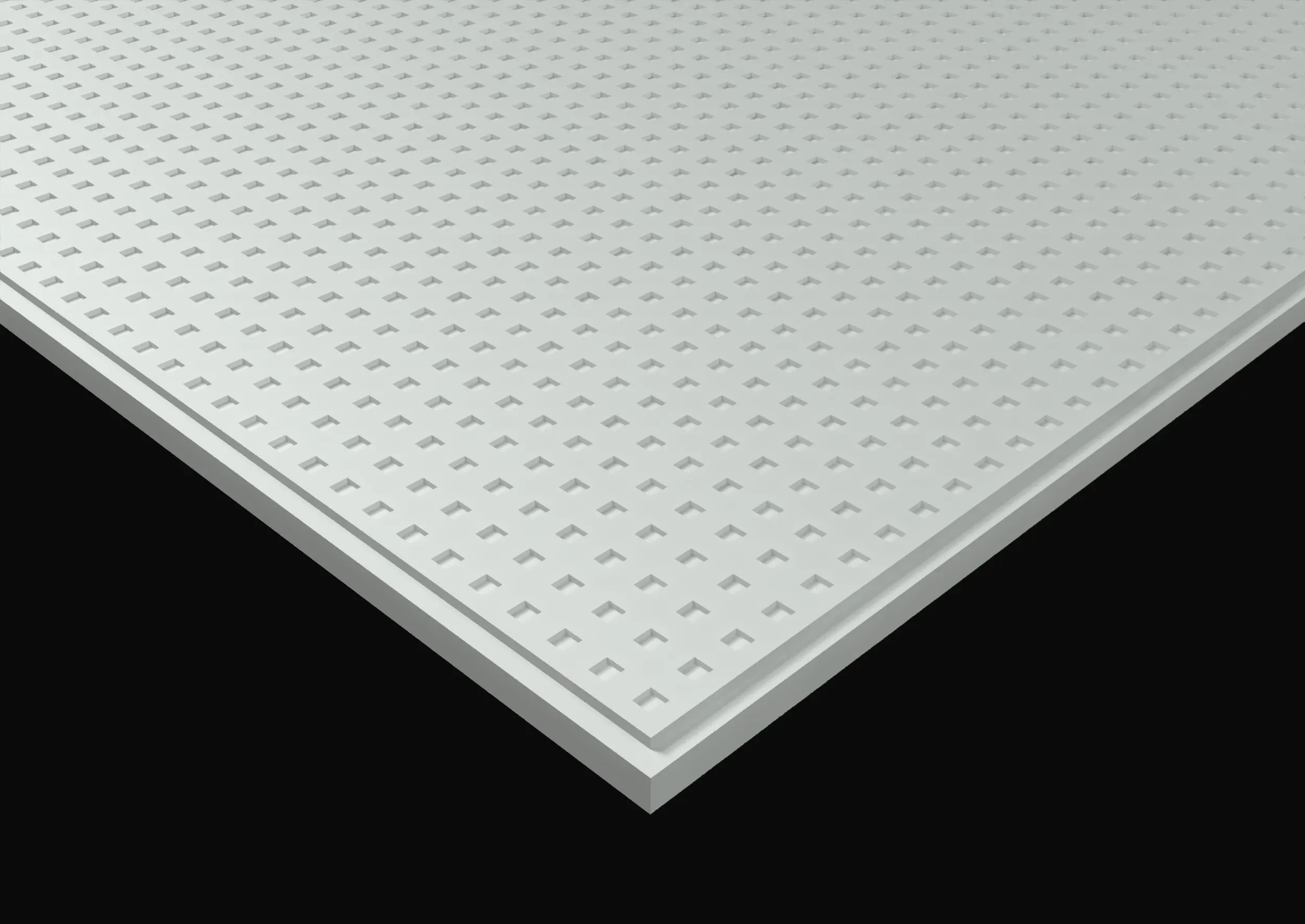

Microtone Acoustical Ceiling Tiles Manufacturer, Supplier & Wholesaler in Gujarat, India

Key Features

BUILD QUALITY

Superior built quality with long-lasting life
Aesthetic, wide & versatile designs
Easy & economical installation
Bend - proof panels
Paperless & fully sustainable
Highly moisture & fire resistant
Customized creations
Free from termite & vermin
Available in Z-black color

SYSTEM & PERFORMANCE

Screw-fix ceiling & wall installation system
Edge B+ edge construction
3.5x3.5 mm square holes at 8.3 mm c/c (17.2% open)
Reinforced with pre-stressed glass fiber
500 cycles crack-free jolting strength tested
White acrylic paint surface
CLASS-1 fire resistant (32 min @ 10% mass loss)
NRC 0.90 (with mineral wool) / 0.80 (no wool)

SUSTAINABLE PRODUCT

Made of gypsum & glass fiber
No use of paper
Sun-dried panels
Safe material
100% recyclable & incombustible
Enhanced indoor climate conditions
30+ years product life
Improved air quality & wide design range

Description

Precision Screw-Fix Installation: Seamless Mounting for Microtone (Edge B+)

The Microtone (Edge B+) acoustical ceiling is engineered for clean, continuous aesthetics using modern seamless screw fixing on primary CD and UD profiles.

Architects and interior designers achieve monolithic, joint-free ceiling and wall surfaces that blend architectural elegance with swift installation efficiency.

Futuristic Elegance: Advanced Scattered Perforation Pattern

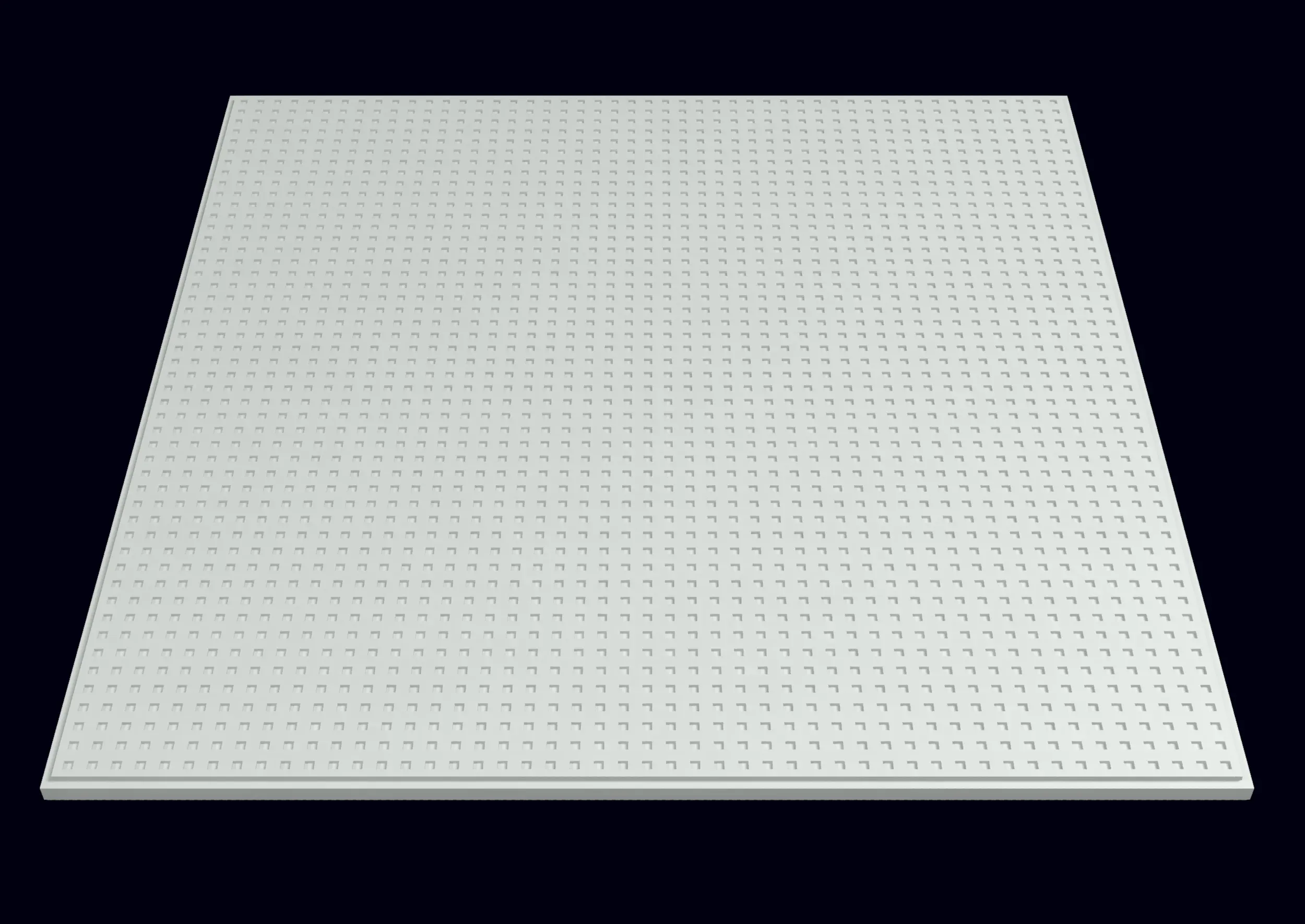

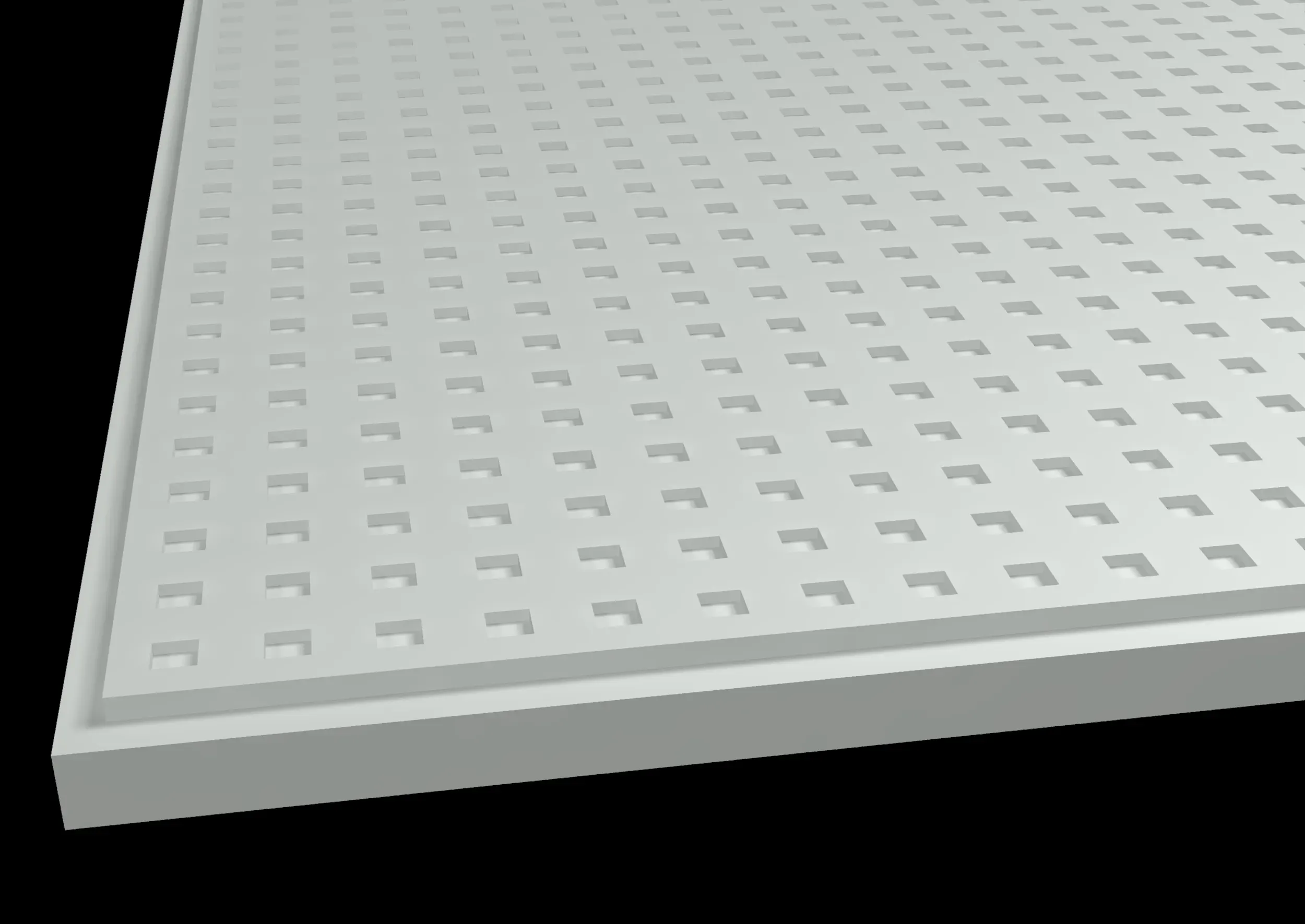

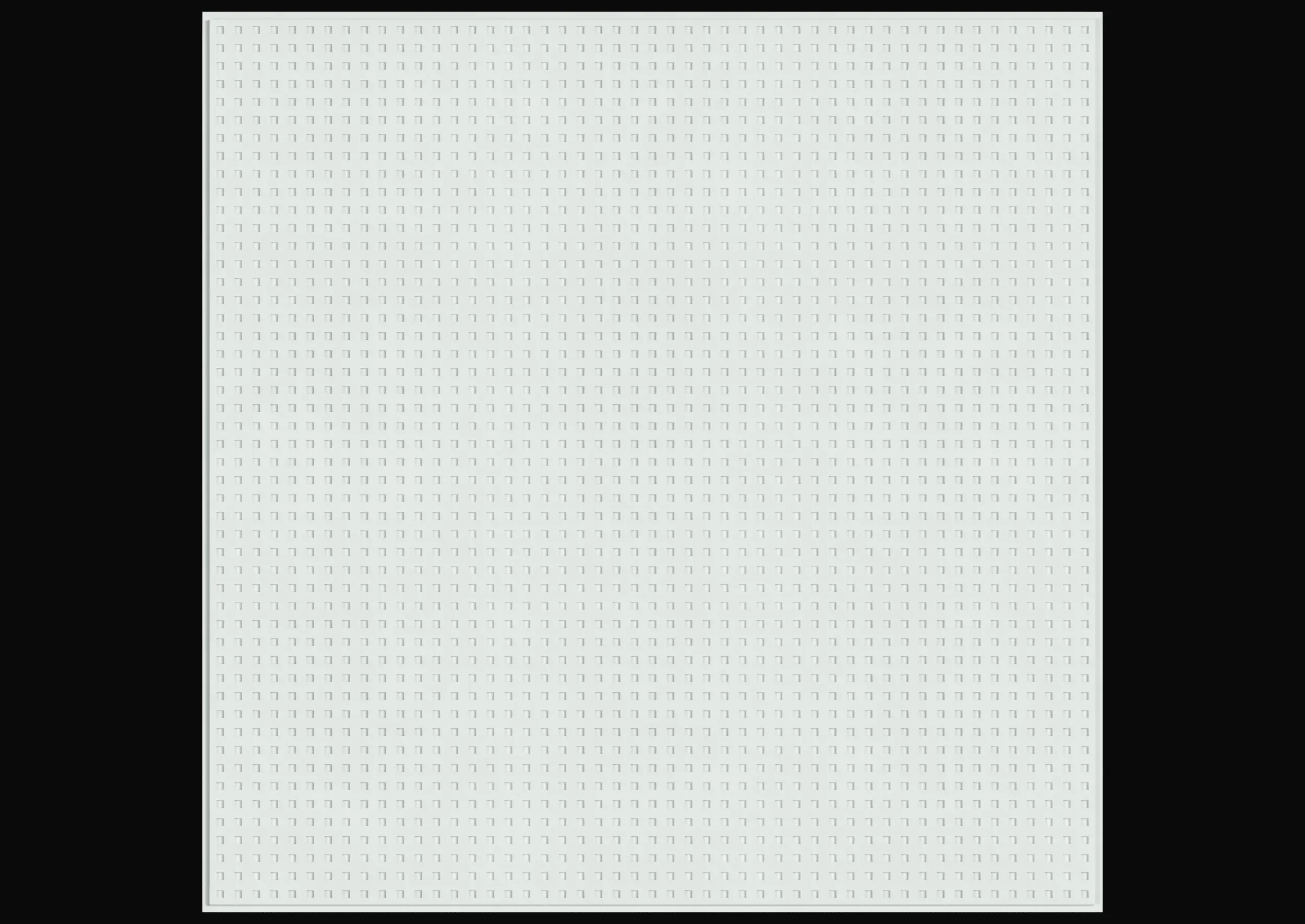

Featuring an Edge B+ edge construction, the Microtone acoustical ceiling showcases a futuristic aesthetic with 3.5mm x 3.5mm square holes arranged at 8.3mm center-to-center spacing (17.2% open area).

This scattered perforation layout maximizes noise reduction capabilities while adding a sophisticated touch favored by architects and interior designers.

Peak Acoustic Absorption: NRC up to 0.90

Engineered for superior sound control, Microtone (Edge B+) achieves an outstanding NRC of 0.90 with mineral wool backing (and NRC 0.80 without mineral wool).

Delivering high absorption across mid and high frequencies (reaching 0.95 at 500 Hz & 1000 Hz), it creates quiet, comfortable environments for conference halls, auditoriums, and open-plan workspaces.

Uncompromising Durability with GRG Material: The Strength of Edge B+

Constructed from GRG (Glassfiber Reinforced Gypsum) material, Microtone (Edge B+) embodies exceptional strength and durability.

Backed by RH99 properties, it withstands 99% RH at 27°C and temperatures up to 55°C without sagging. With CLASS-1 fire resistance, 99.98% anti-bacterial reduction, and 500-cycle crack-free jolting strength, it provides lasting peace of mind.

Installation Video

Specification

SCREW-FIX

UD Profile (Wall Connection) : 28 × 27 × 3000 mm

CD Profile (Primary Profile) : 60 × 27 × 3000 mm

Direct Bracket for CD Profile : 41 × 90 mm

Perforation Details

Squares Shape Size : 3.5 mm × 3.5 mm, 8.3 mm c/c

Perforation : 17.2%

NRC : Up to 0.90

Acoustics

Range (Hz)	125	250	500	1000	2000	4000	NRC
Mineral wool	0.40	0.80	0.95	0.95	0.85	0.85	0.90
No Mineral wool	0.50	0.80	0.85	0.75	0.75	0.80	0.80

Size	600 X 600 mm (+/- 3 mm)
Thickness	12.5 mm (+/- 0.5 mm)
Edge Construction	Edge B+
Surface	White acrylic paint
Weight	Indicative tile weight: 9.1 to 9.3 kg/m2
Air Quality Index	Indoor value: 10 days Particle emission: low (< 0.75 mg)
Cleaning	Dust is removed using a dry duster or vacuum cleaner. Marks can be removed with a damp cloth using normal cleaning practices and neutral cleaning solutions.
Moisture Conditions	The product is designed to perform under normal conditions of Use. Tested at 99% RH and 27°C. The product can withstand ambient temperatures of up to 55°C.
Impact Strength	As per IS 13360 part 5/ sec 5 obtained result of 11.90 min against the requirement of 10 Minutes.
Fire Class	CLASS-1 (The time taken for 10% loss in mass was observed 32 Minutes)
Robustness	Made of robust, glass fibre reinforced material with excellent pressure resistance. Under normal conditions of use, the product properties are preserved and there is no decomposition of material over time.
Anti-Bacterial	The product is designed to reduce 99.98% Microbial population (ILAC-MRA)
Water Absorption	The product is designed to absorb only 28% of water against the requirement of 50% Maximum as per IS 2095 Part 1.
Jolting Strength Test	The product does not show crack or chipping off from the surface before 500 cycles.
Certificates	IS 2095 PART-3 (2022) TESTS Declaration of Conformity By Bureau Of Indian Standards (CM/L No. 7100049497)

All India First License

APPROVED BY

Documents

Product Brochure

Test Reports

Installation Guidlines

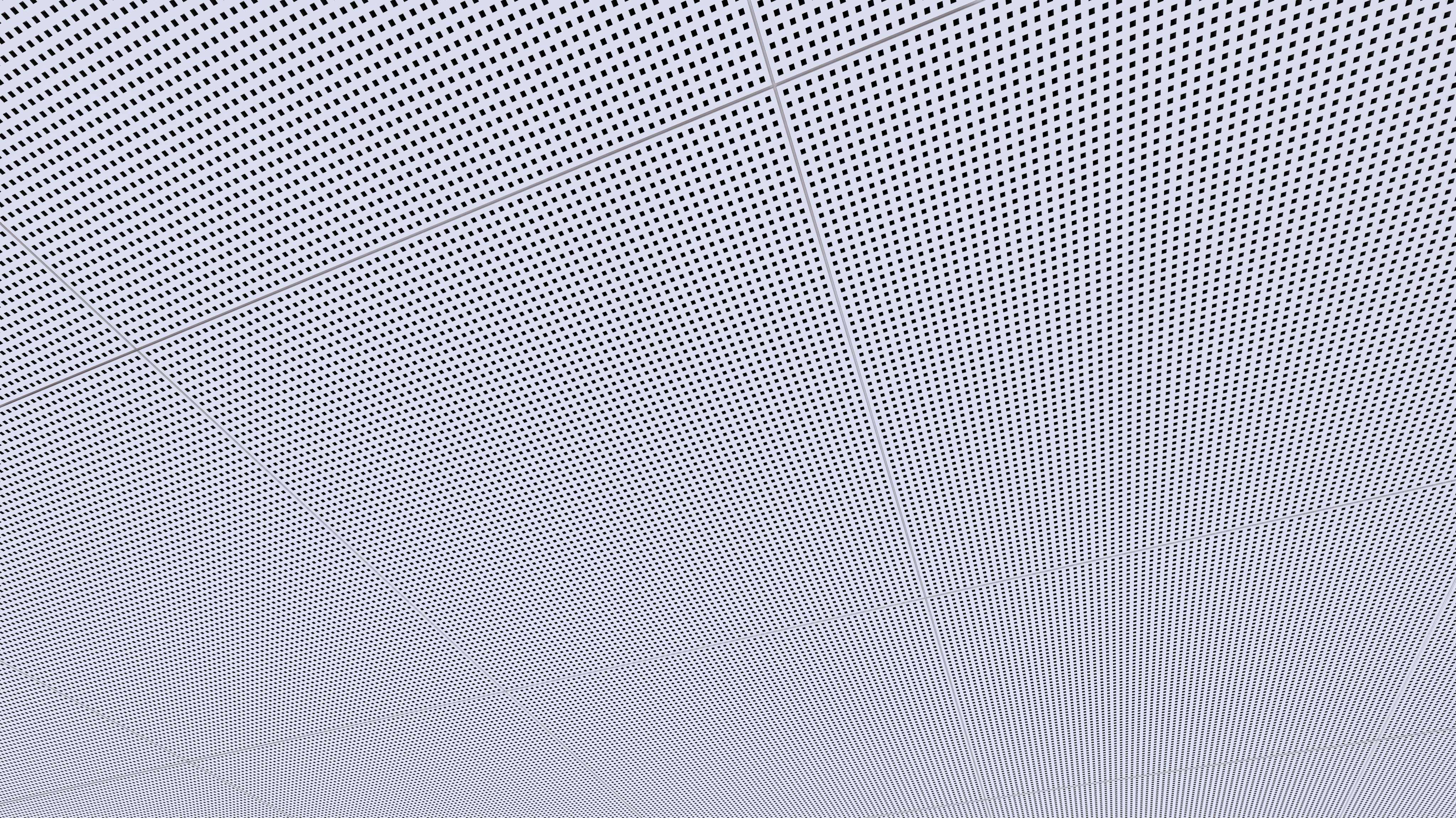

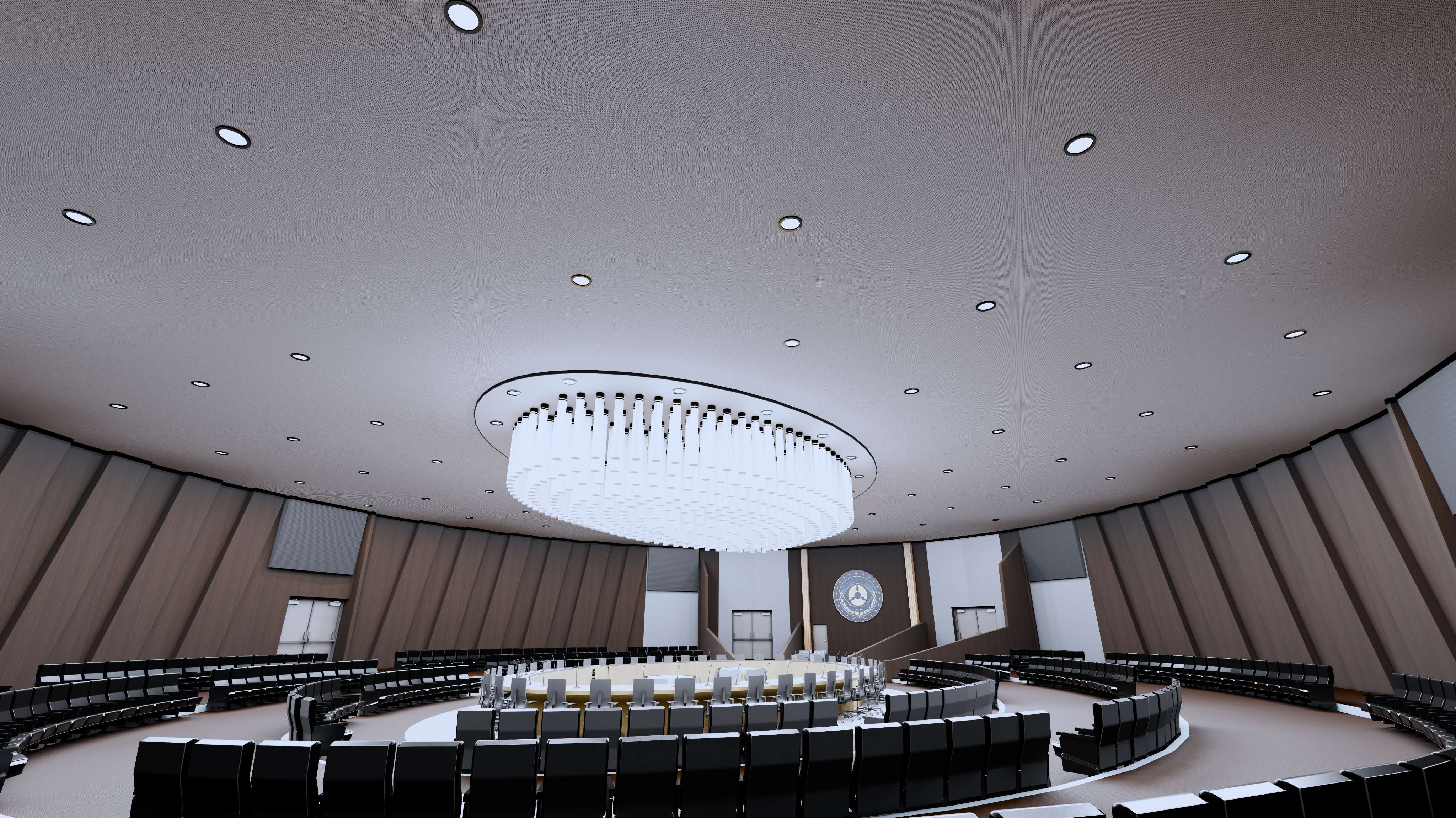

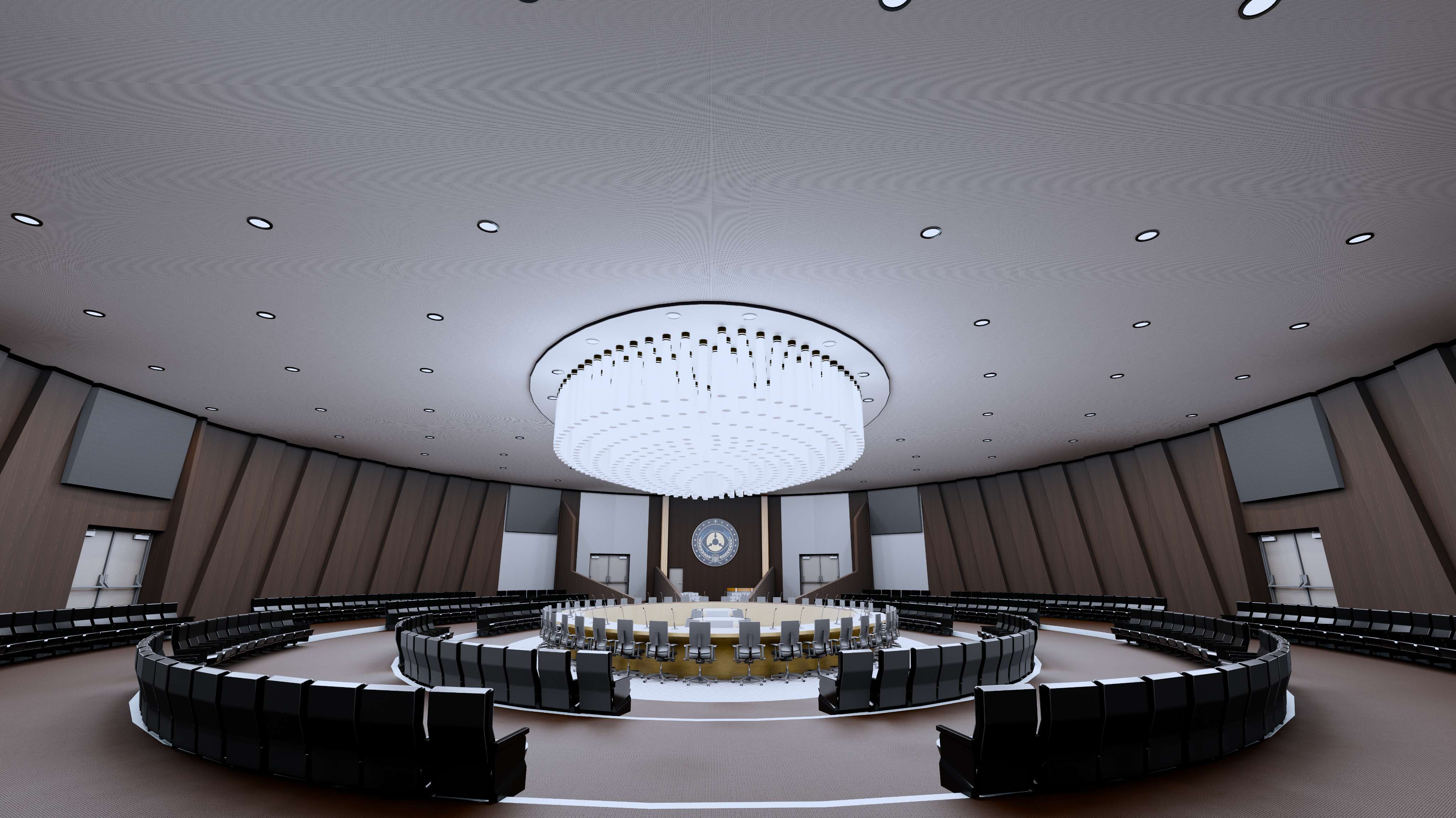

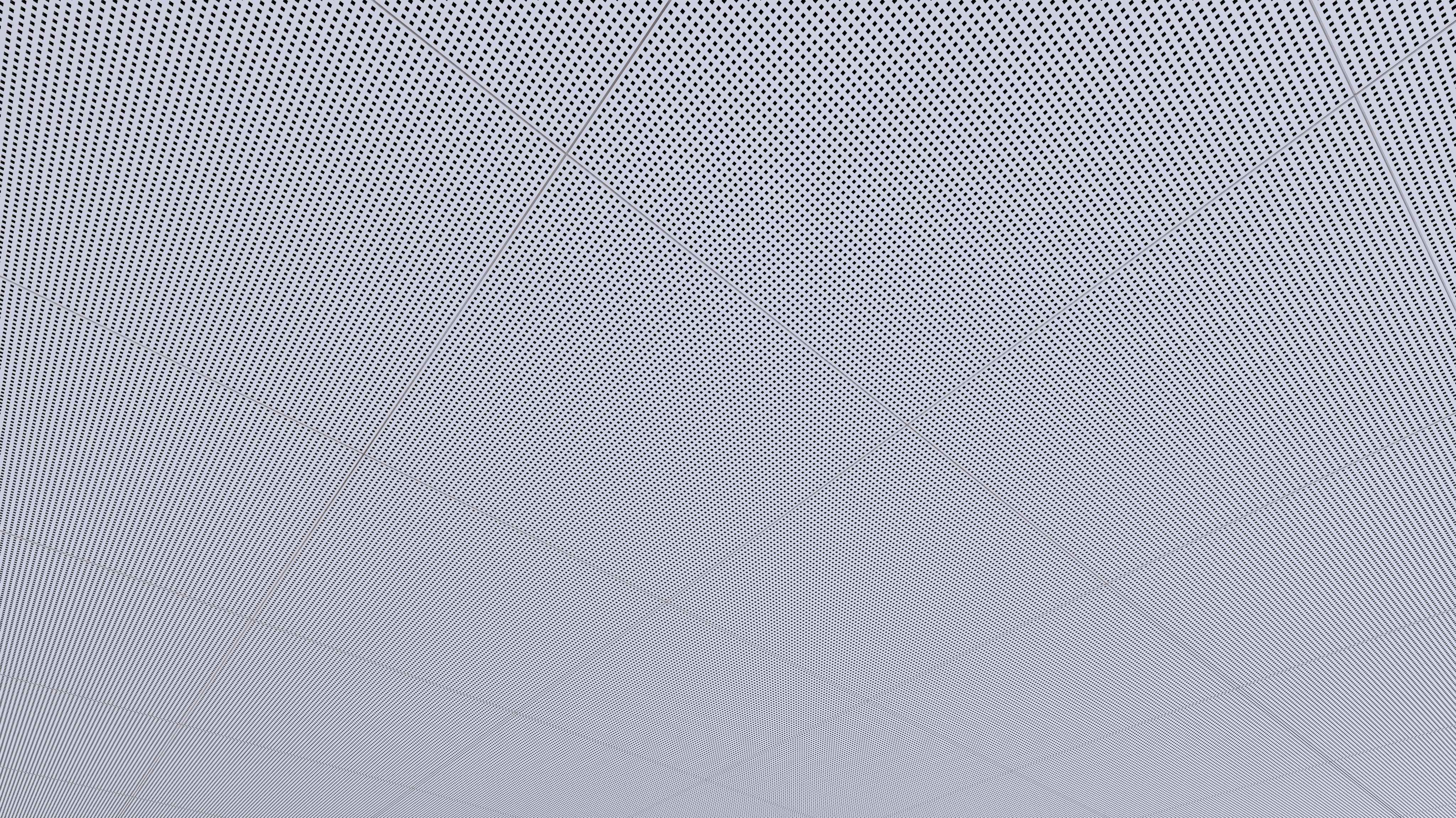

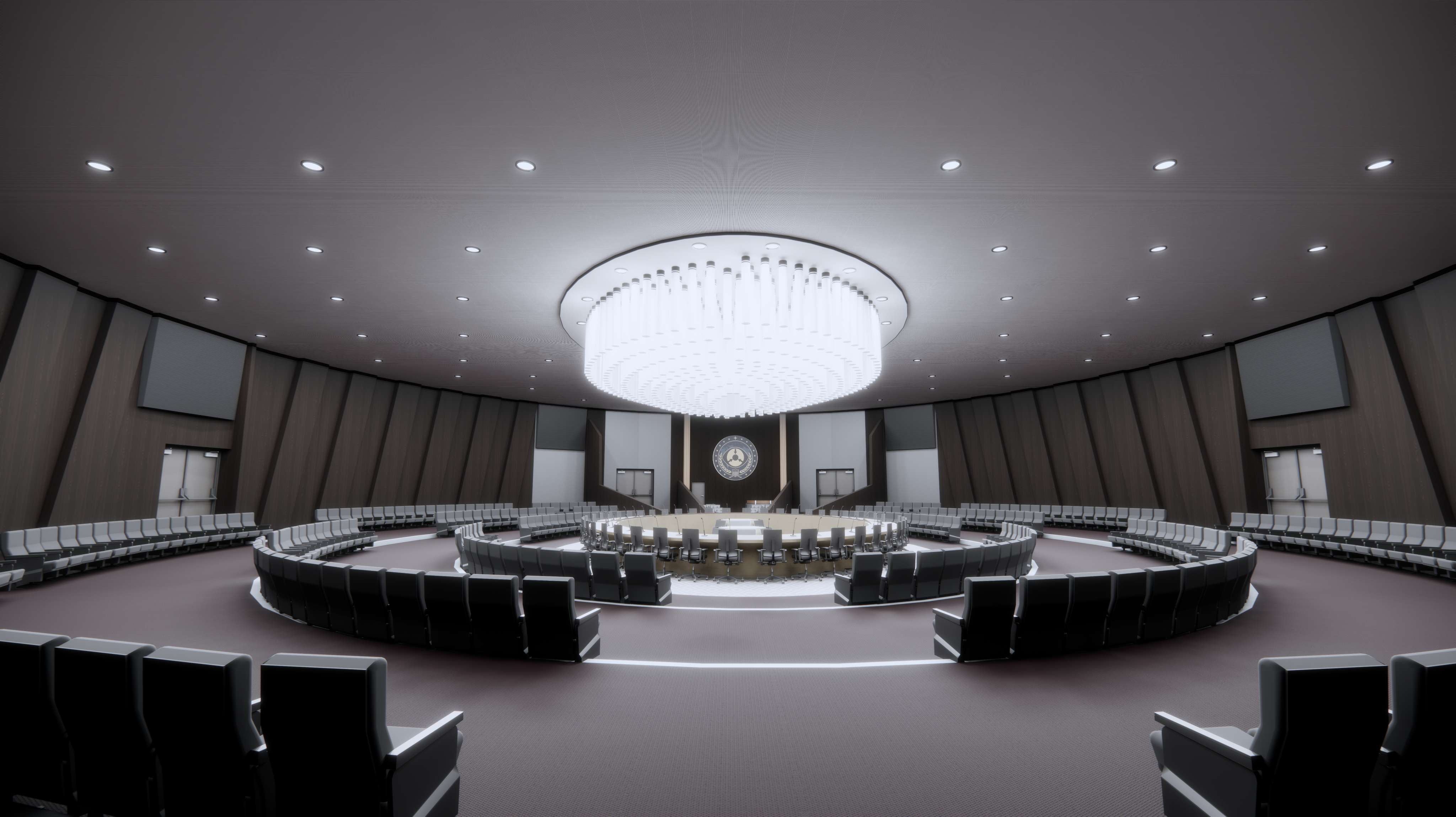

Reference projects with Microtone (Edge B+)

Microtone (Edge B+) epitomizes architectural elegance and acoustic perfection. Its seamless Edge B+ screw-fixed detailing and advanced perforation grace boardrooms, auditoriums, and futuristic interiors.
